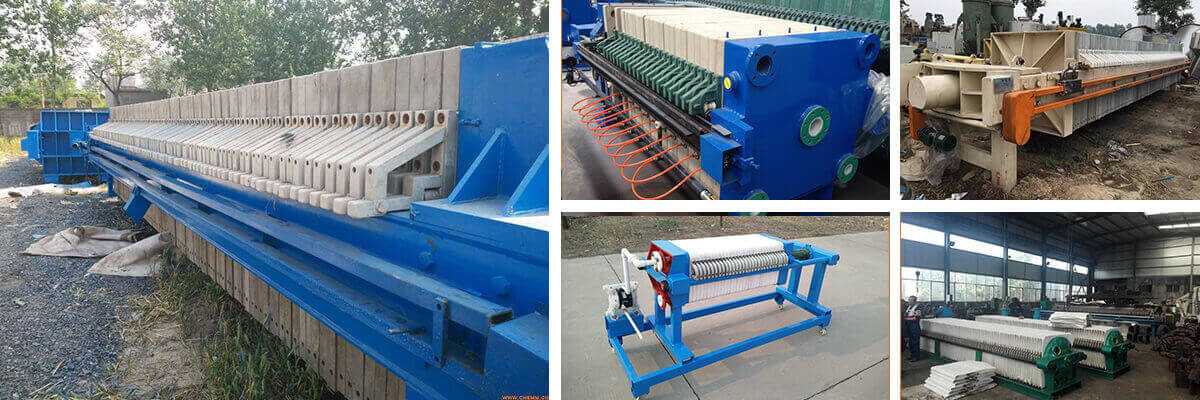

Products display

Overview

Filter press is the most commonly used pressure filter machine in some industries. By applying a certain pressure between filter plates, this batch-operated filter makes it possible to produce filter cakes that reach the desired moisture.
When your investment is limited while can’t afford a more expensive continuous pressure or vacuum filters. Or your filter capacity is rather small, the filter press could be the best choice when choosing a filter.

working principle

https://www.youtube.com/watch?v=qgM4IjyY2LI

JXSC’s plate and frame filter press is composed of alternately arranged filter plates and filter frames to form a group of filter chambers. The surface of the filter plate has grooves, and its protruding parts are used to support the filter cloth.
There are through holes in the corners of the filter frame and the filter plate. After assembly, they form a complete channel, which can pass into the suspension, wash water and lead the filtrate.
Handles are supported on the beams on both sides of the board and frame, and the board and frame are pressed by the pressing device. The filter cloth between the plate and the frame acts as a sealing gasket. Suspended hydraulic pressure is fed into the filter chamber by the feed pump to form filter residue on the filter cloth until the filter chamber is filled.
The filtrate passes through the filter cloth and flows along the filter plate groove to the corner channel of the plate frame, and is discharged in a concentrated manner.
After filtering, the filter residue can be washed with clean water.
After washing, compressed air is sometimes passed to remove the remaining washing liquid. Then open the filter press to remove the filter residue, clean the filter cloth, repress the plate and frame, and start the next working cycle.

models & specifications

Parameter Drying system Structure Replacement Parameter

| Model | Filter Area
/m² | Cake Thickness
/mm | Filter Chamber Volume
/L | Filtration Pressure
/Mpa | Motor Power
/kw | Weight
/kg | Dimensions
/mm | | --- | --- | --- | --- | --- | --- | --- | --- | | XMY50/1000-30u | 50 | 30 | 736 | ≥0.6 | 4.0 | 4072 | 4040×1500×1400 | | XMY60/1000-30U | 60 | 889 | 4468 | 4460×1500×1400 | | XMY70/1000-30U | 70 | 1011 | 4863 | 4760×1500×1400 | | XMY80/1000-30U | 80 | 1193 | 5259 | 5120×1500×1400 | | XMY100/1000-30U | 100 | 1473 | 5985 | 5800×1500×1400 | | XMY120/1000-30U | 120 | 1777 | 6776 | 6500×1500×1400 |

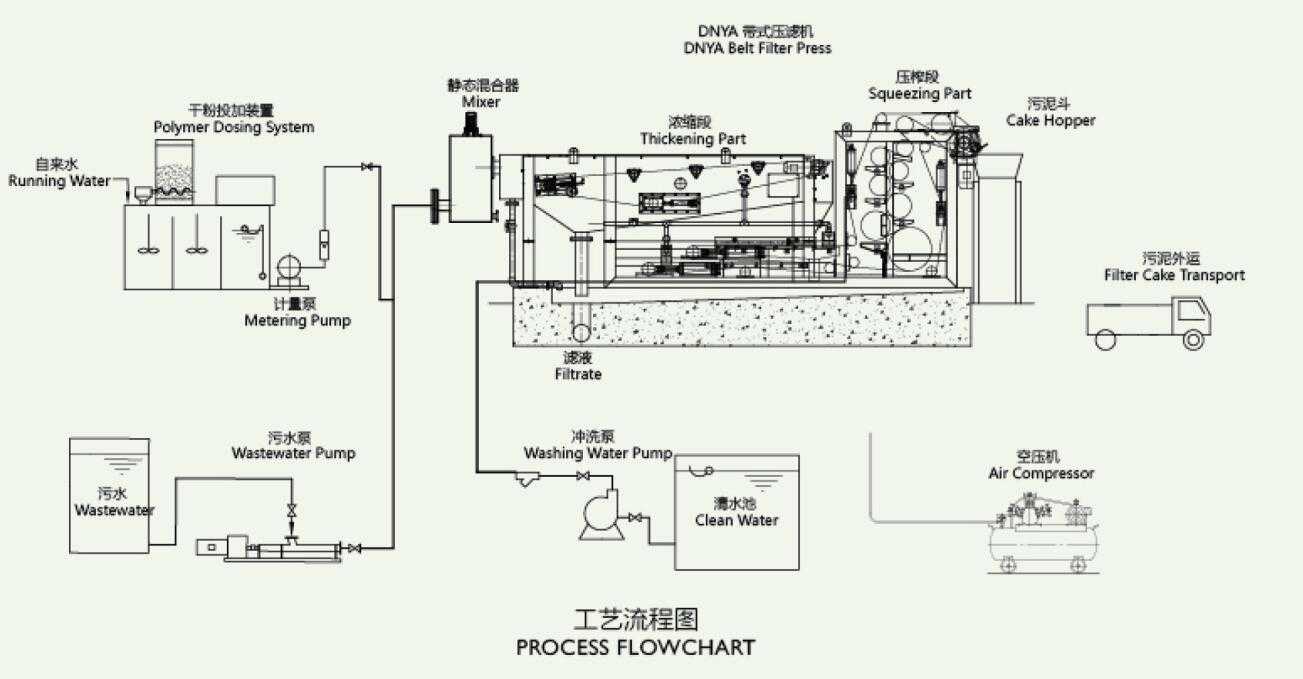

Drying system

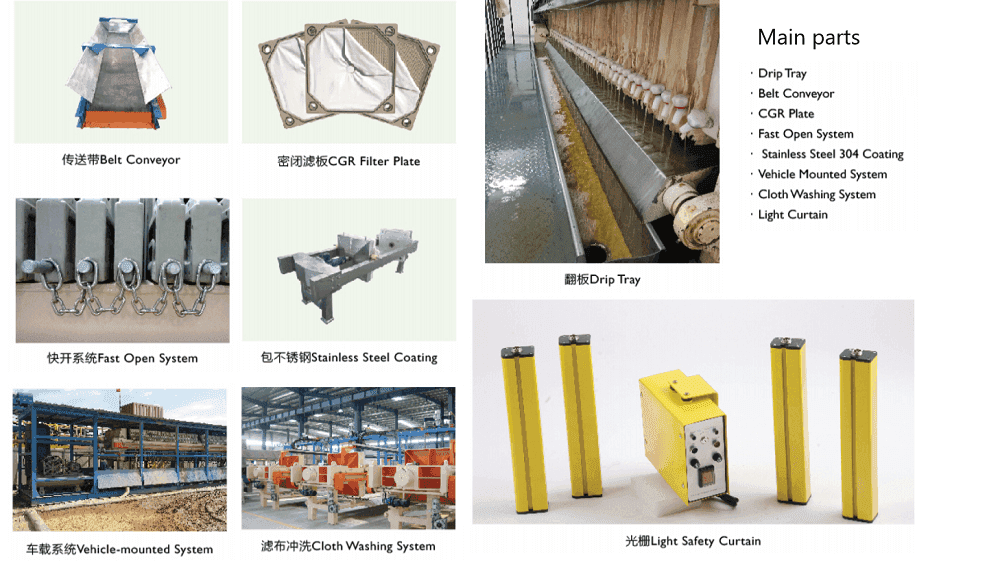

Structure

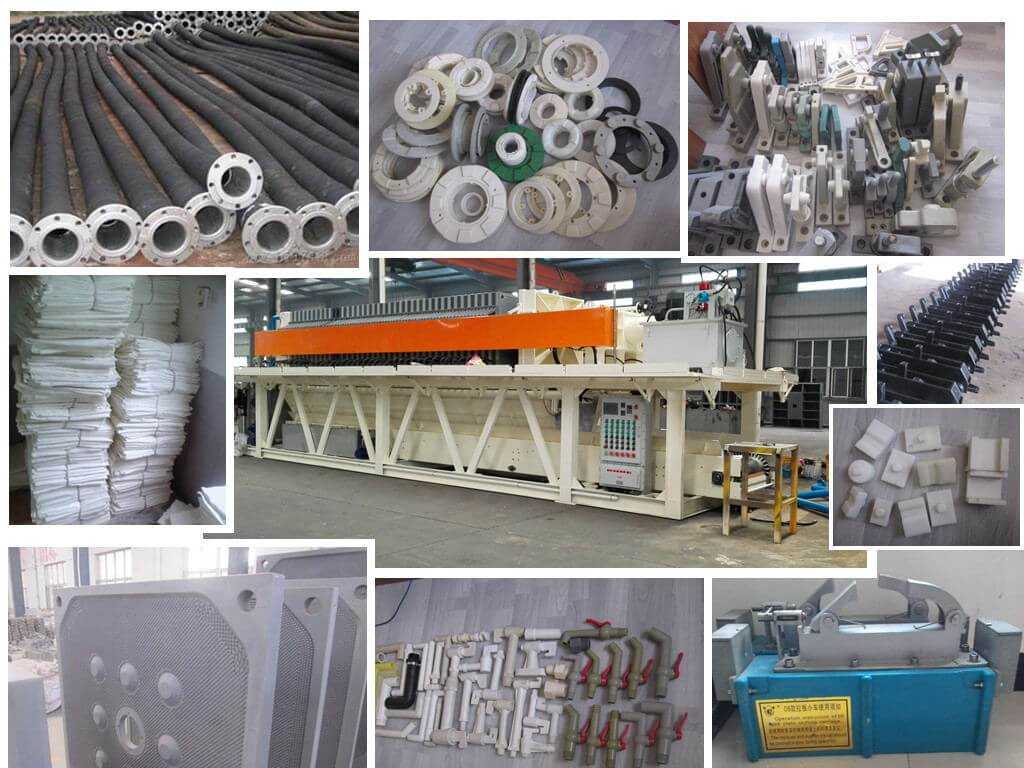

Replacement
