Slurry Pump

Capacity: 4.5-3741m3/h Head: 6-130m Speed: 300-2930rpm NPSHr: 1.3-10.7m Eff: 83% Handling solids: 180mm

Products display

Overview

ZJ Series Slurry Pump are a new high-efficiency energy-saving anti-wear pump. The series pumps are innovative in hydraulic design, structural design and wear-resistant materials. The utility model has the advantages of high efficiency, energy saving, small vibration, low noise, reliable operation, long service life and convenient maintenance. The comprehensive performance of pumps in the domestic leading level, most of the pump efficiency indicators in the international advanced level.

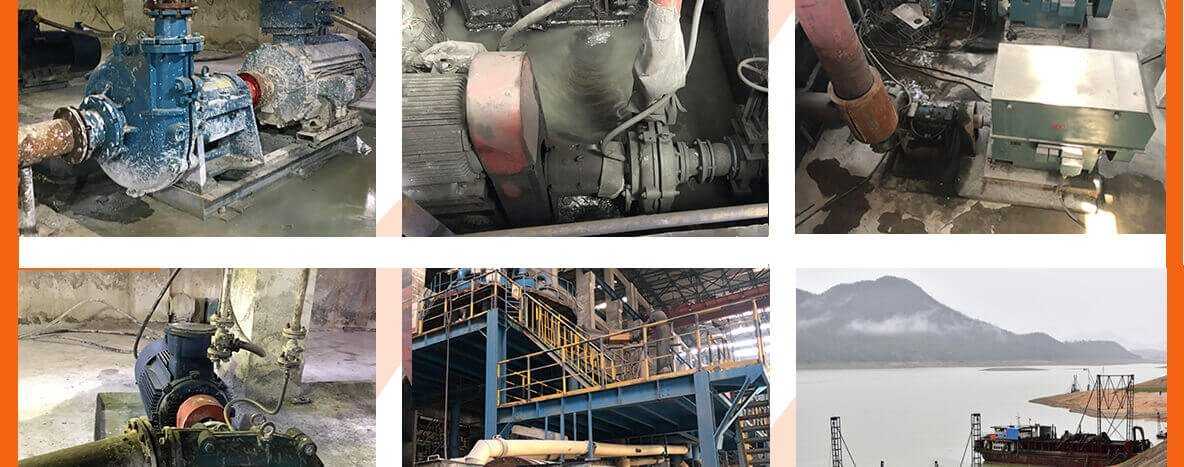

Widely used in electric power, metallurgy, coal, building materials and other industries conveying solid particles slurry. Such as power plant hydraulic ash, metallurgical ore dressing plant slurry transport, coal washing plant slurry and heavy medium transport.

specifications

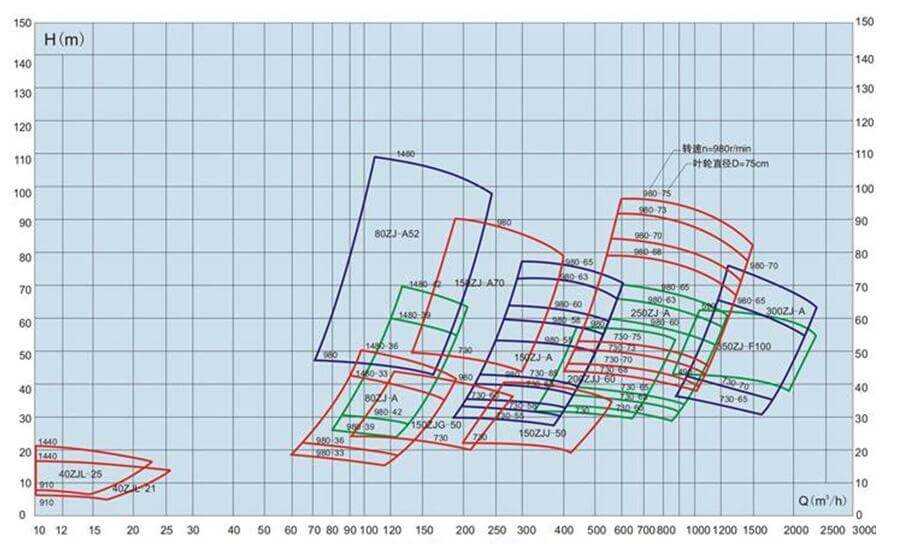

Parameter Construction Drawing Features Parameter

Construction Drawing

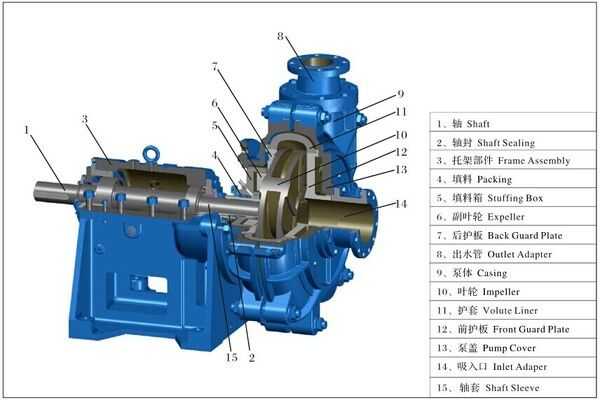

Slurry Pump Construction Component

Features

1. Metal Material: anti-wear, abrasion resistance, anti-wear and abrasion resistance. 2. High efficiency, long life, smooth operation. 3. Drive mode: directly connect the drive (DC), Fluid coupling drive (HC), belt drive (CR, CL, ZV, CV). 4. Structure Features: Pump Body adopts a double-layer pump shell mechanism. Double-shell pump shell structure is vertical in the open type. The water outlet position can be 45° of an interval, rotating 8 different installations. 5. Outlet diameter: 350mm, 300mm, 250mm, 200mm, 150mm, 100mm, 80mm, 65mm, 50mm, 40mm
