Spiral Classifier
Capacity: 10-900t/24h
Moto power: 3-30Kw
Spiral diameter: 300-3000mm

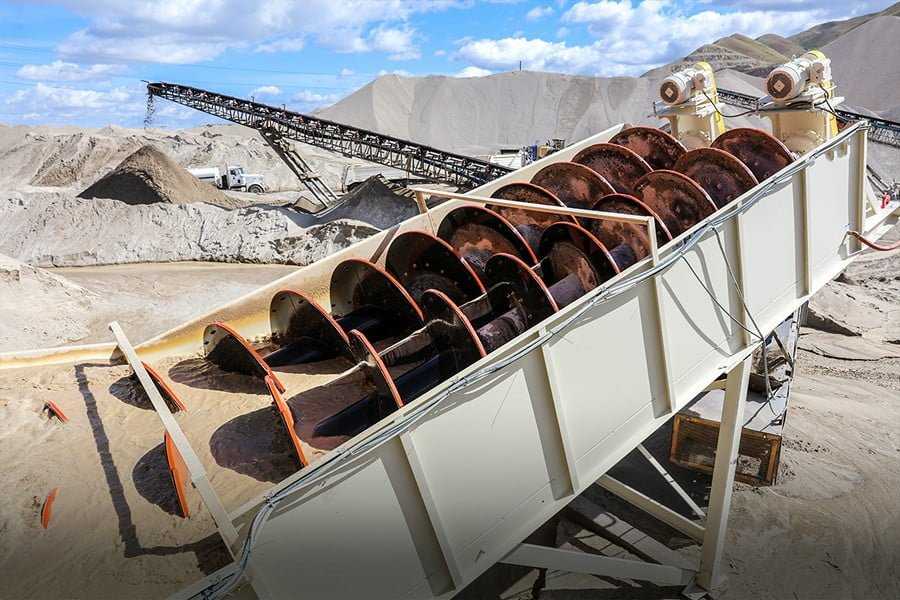

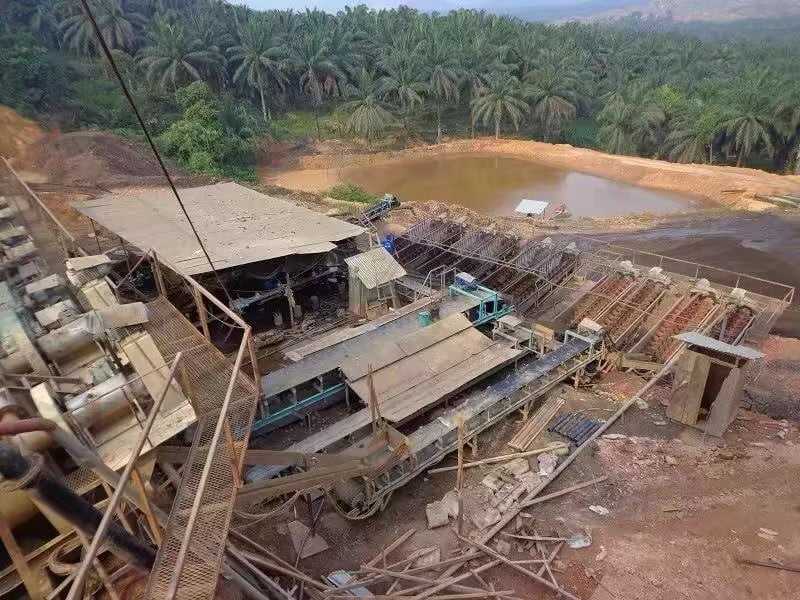

Products display
Overview
Spiral classifier and hydrocyclone are the main equipments for the classification operation of the concentrator. Although the rapid development of the cyclone once made the spiral classifier lose its market, but with the continuous changes in the requirements of the selection plant, it was found that the spiral classifier also has its advantages. The spiral centrifugal classifier has the advantages of strong continuous operation, large processing capacity, low energy consumption per unit output, and convenient maintenance. It can handle particles with a diameter of 1um-10mm. The horizontal spiral centrifugal classifier adopts the method of wet classification, and its processing capacity can reach 1~20 (m3 slurry) kg/h. It is widely used in minerals, metal powders, chemical raw materials, pigments, fillers, etc.
https://www.youtube.com/watch?v=FVKmMiHiGfY
working principle

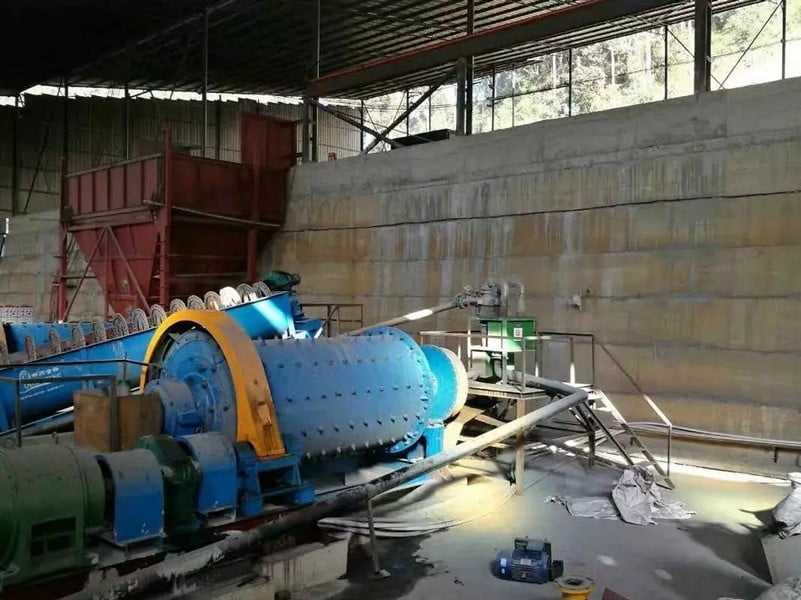

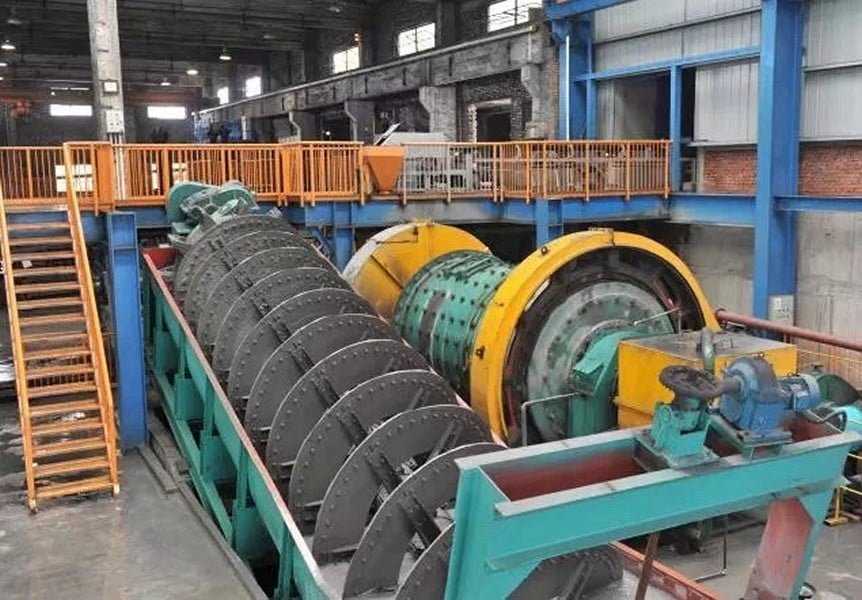

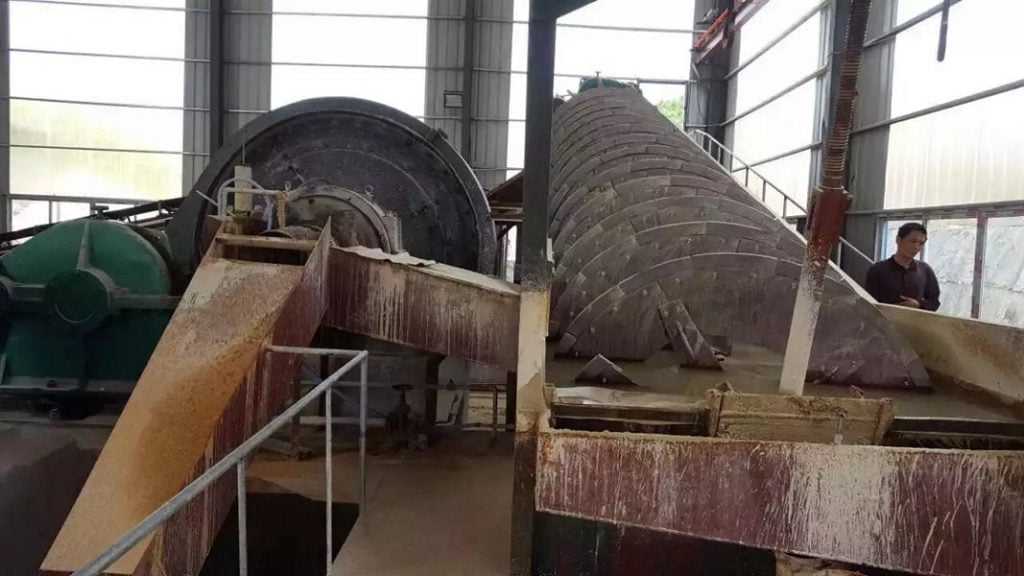

The screw classifier is based on the principle that the solid particles are different in size and specific gravity, so the settling speed in the liquid is different. Fine ore particles float in the water and overflow, and coarse ore particles sink to the bottom of the tank. Spiral classifier is widely used in beneficiation plant to match with ball mill to form a closed circuit circulation path to distribute ore sand. Filter the material powder milled in the mill, and then use the spiral piece to screw the coarse material into the ball mill inlet, and the filtered fine material is discharged from the overflow pipe. There are four classifiers: high weir single spiral and double spiral, submerged single spiral and double spiral.
models & specifications
Technical parameter Structure Features Selection Technical parameter
Structure
Features
The spiral classifier is widely used in the classification of the grinding circuit of the concentrator and the operations of washing, desilting and dewatering. Its main advantages are simple equipment structure, reliable work and convenient operation.
1. It is used for the separation of machine-made sandstone powder, which can control the content of machine-made sandstone powder very conveniently and meet the requirements of users. 2. It is suitable for dry technology large and medium-sized sand production lines. 3. The content of 0.00–0.75mm stone powder can be adjusted between 2%-15%. 4. Stone powder quality is easy to control, fineness adjustment is convenient, flexible and reliable. 5. Using frequency conversion control technology, the operation is more concise. 6. It can be connected with the mill in the closed circuit of the grinding circuit. Compared with hydrocyclone, the power consumption is lower. 7. The main disadvantage is that the classification efficiency is low, the equipment is bulky, and the floor space is large. Due to the limitations of equipment specifications and production capacity, it cannot generally form a closed circuit with a ball mill of ф3.6m or more.
Selection
The spiral classifier is divided into two types: high weir type and submerged type. High weir classifier is suitable for coarse particle classification, the maximum size of overflow is generally 0.4~0.15mm; submerged classifier is suitable for fine particle classification, the maximum size of overflow is generally below 0.2mm.
