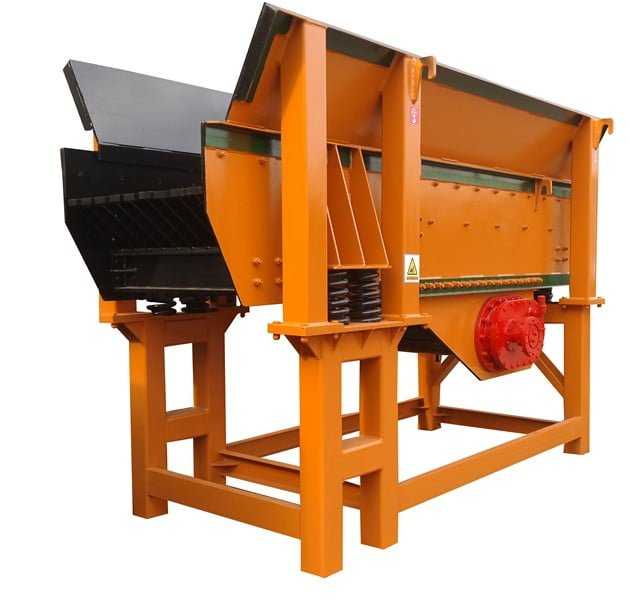

vibrating feeder
Feed: <1000
Capacity: 30-1200t/h
Uses：ore, sand, gravel
Products display
Overview
The vibrating feeder is an electromechanical type of equipment, in which the vibration of the chute is used to transfer the materials from the hopper, silo and silo to the next row of equipment such as crushers, sieving machines, conveyors, etc. in a controlled manner.
The vibrating feeder is used to feed in a controlled manner. Not only can they be fed from the hopper, but vibrating feeder can also quickly control their flow to subsequent processes over a wide range.Vibrating feeder is the indispensable equipment in a wide range of applications, such as metallurgy, mineral processing, building materials production, chemical industry, coal and other industries. Under the vibration motion, it can remove natural fine materials, and transfer and sieve materials to the next process.
https://www.youtube.com/watch?v=tgDgbC3VRC4
The vibrating screen feeder is mainly used in the following situations:
(1) It can be continuously fed before coarse crushing and screening to separate fine particles and improve crushing capacity.
(2) During the operation, the materials are fed into the feeding device evenly, regularly and continuously.
(3) Can be used for coarse sieve of materials. Double screen feeder can be used to remove mud and other small impurities in the material.
We tailor a variety of light, medium and heavy duty vibrating feeders to meet your requirement of controling the material flow. Call now to learn how we can increase your productivity and profits.
models & specifications
Technical parameter Structure Features Customization Technical parameter
Structure
It consists of drive mechanism and a vibrating trough. The drive mechanism generates vibration on the trough by rotating the unbalanced mass or the electromagnetic vibration unit. The vibration trough is usually supported by the springs, which is used to amplify the vibration amplitude. As the one of the important parts of the vibrating feeder, the trough is usually subjected to maximum vibration.
Features
The mineral processing plant with vibrating feeder can provide:
• Fully automatic or semi-automatic material fill station
• Fully adjustable volume flow
• Smooth, uniform linear motion
• Safety in the most dangerous conditions
•Ruggedly constructed
• Long service life
• High reliability
• No lubrication needed
• Highly versatile
• Minimal maintenance
Customization
The standard electromagnetic feeder is equipped with a through hole made of carbon steel and has a joint made by electric welding. We provide a variety of groove shapes, groove coatings, and materials for your choice.
The trough can be made of steel or polished stainless steel, or lined with wear-resistant, fire-resistant or plastic coating to meet the most demanding requirements.
Through can be made in many shapes:
•flat
• flared
• tubular
• grizzly bar trough
