5TPH Rock And Placer Gold Recovery Plant In Ethiopia
We guarantee the high quality machine in the mineral processing industry, established in 38 years of experience
Project info
1. Raw ore: gold ore without sticky clay and mixing rock stone,the gold also in the stone
2. Capacity: 5TPH
3. Location: Ethiopia
4. Input size: >100mm
Process
Washing – Crushing – Gravity separation
process flow

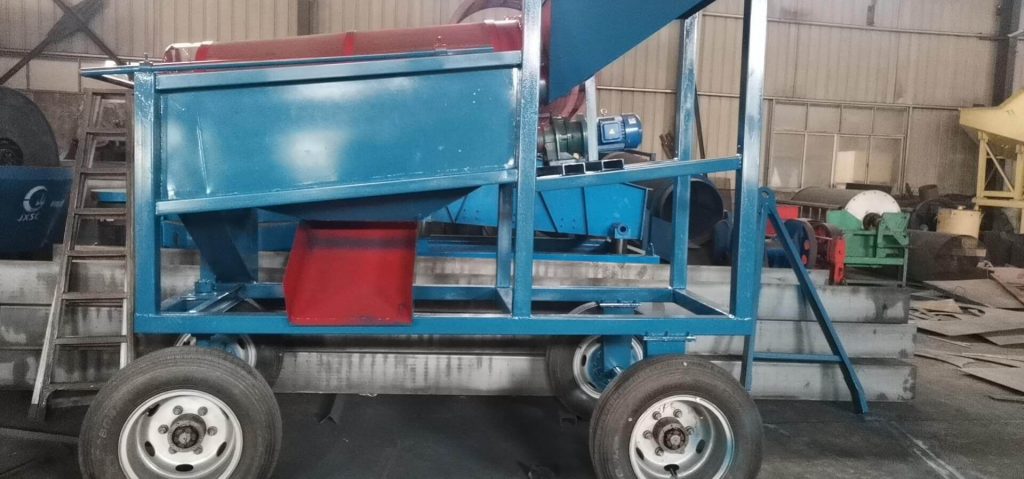

1. Gold Washing: Trommel screen
The raw ore larger than 100mm enters the hopper with a screen. Trommel screen with screen bar washing the material without sticky clay and separating the stones. Among them, material of 0-3mm enters the centrifuge, material of 3-20mm goes directly to the gold chute, and the material larger than 20mm is transported to the jaw crusher by a belt conveyor.

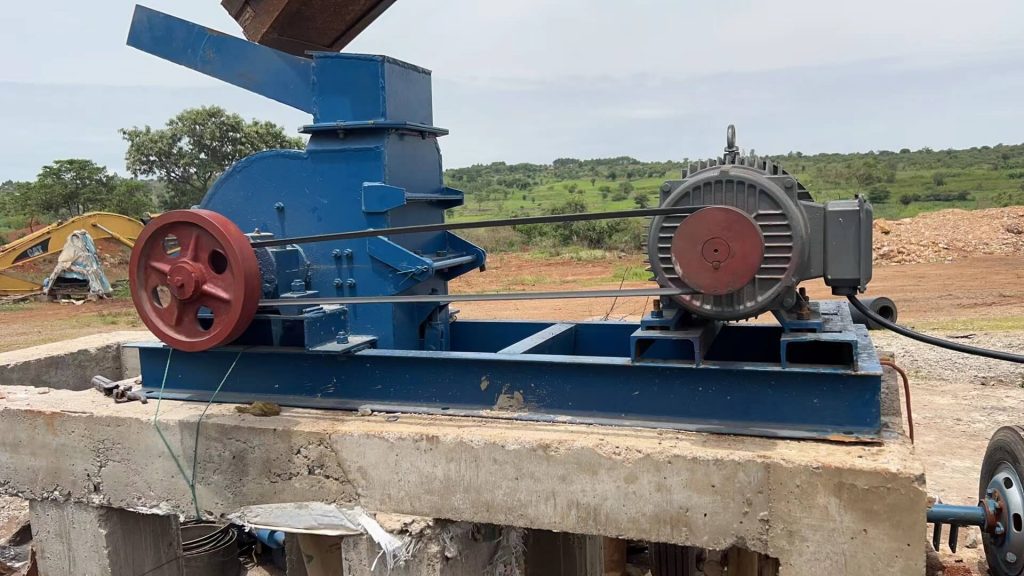

2. Crushing stage: Jaw crusher, Hammer crusher
The jaw crusher roughly breaks the 20-150mm material into a size of 0-40mm, and then transports it to the hammer crusher with a belt conveyor for fine crushing, so that the material size is 0-2mm.
3. Separation stage: Gold centrifugal concentrator, Shaking table, Sluice box
The tailings of the centrifuge go to the gold chute to recover gold, and the materials from the hammered 0-2mm are directly sent to the shaker for separation.
4. Melting stage: Gold melting furnace
The gold concentrate from the shaker and the gold chute enters the gold melting furnace to obtain gold bars.
Main Equipment
|
Product name |
Model |
Quantity |
|
0513 mobile type |
1 |
|
|
sluice box |
1000*6000 |
1 |
|
Hammer crusher |
300-400 |
1 |
|
Gold centrifugal concentrator |
STLB30 |
1 |
|
Belt conveyor |
DT500*10000 |
2 |
|
Jaw crusher |
150-250 |
1 |
|
Shaking table |
customizable |
1 |
|
Gold smelting furnace |
1-2KG |
1 |
