20TPH Alluvial Gold Gravity Separation Plant In Ghana

We guarantee the high quality machine in the mineral processing industry, established in 35 years of experience

minerals

1. Raw ore: alluvial gold with sticky clay and big stones

2. Capacity: 20TPH

3. Location: Ghana

4. Feed size: about 20mm

Process

Washing – Gravity separation

process flow

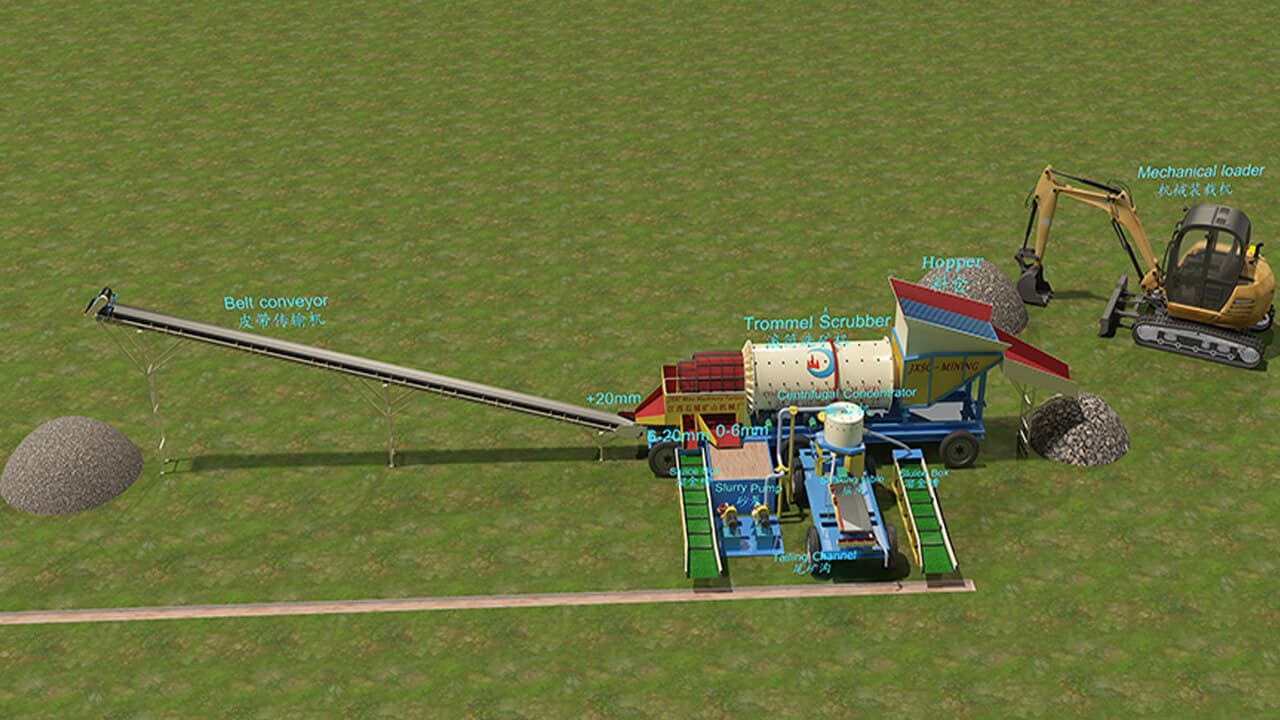

20TPH Alluvial Gold Gravity Separation Plant Flow In Ghana

JXSC configured a 20TPH alluvial gold gravity separation plant, complete sets of machines and all accessories for Ghanaian customers. Among them, the raw ore contains clay & large stones, and the size of gold is mostly 0-6mm. Customers have their engineer team, and we provide detailed layout design drawings. Details are as follow:

1. Washing stage: Trommel scrubber with hopper and 75mm screen bar

The raw ore is sent into the hopper by the excavator. The material of +75mm is transported to the waste pile, and the material of 0-75mm is sent to the drum scrubber to wash and screen the material of 0-6mm and 6-20mm. The +20mm material is transported to the waste pile with a belt conveyor.

2. Gravity separation: Gold centrifugal concentrator, Shaking table

The centrifugal concentrator separates gold from the trommel scrubber’s 0-6mm material. Among them, the tailings of the centrifugal concentrator and the 6-20mm material of the trommel scrubber are sent to the gold chute to recover the gold ore. Then the material is sent to the shaking table to extract 0-2mm gold concentrate.

main Equipment

Product Name

Model No.

Quantity  (Set)

Trommel scrubber

JXSC750

1

Belt conveyor

500x15m

1

Gold centrifugal concentrator

STLB80

1

Sluice box

1x6m

1

Shaking table

2100x1050mm

1

Water pump

IS100

1

Water pump

IS80

1

Slurry pump

4/3inch

1



Trommel scrubber
Rotary Scrubber
gold centrifugal concentrator
Gold centrifugal concentrator
JXSC Gold Sluice Boxes
Gold sluice boxes
gold shaking table
shaking table
