Gold Melting Furnace

Types
  • Mini gold melting furnaces
  • Tilting melting furnace
  • Portable gold melting furnace
  • Cabinet type melting furnace
Applicationmelting gold, silver, jewelry, copper, platinum, palladium, rhodium, steel, aluminum, gold and silver powder, tin ash dross, and so on. Especially very popular and used in gold mining processing plant.
Melting Capacity1-100kg and more, contact us get melting furnaces with different capacity

Gold Melting Furnace Supplier

Gold melting furnaces are designed to heat metal materials (mainly melting gold, silver, copper, jewelry) above their melting point, making them liquid. It is widely used in the manufacture of jewelry, casting metal parts and various metal processing and other occasions.

JXSC has more than 35+ years of experience in gold beneficiation equipment manufacturing. We mainly produce four types of gold melting furnaces, to meet different application scenarios, temperature ranges and operating requirements. Our gold melting equipment adopts advanced technology and high-quality high-temperature-resistant components. It has high heating efficiency, safety, reliability, environmental protection and energy saving. By controlling temperature and other parameters, separation and purification of metals can be achieved; it’s the ideal machine for smelting gold.

Gold Melting furnace For sale

Main Features:

  • The small smelting furnace applies SSR controller, alloy made heating element with a melting point of up to 1900℃.
  • This mini gold melting furnace is small and lightweight, making it easy to carry.
  • High-temperature proof ceramic induction melting gold furnace, high aluminum protection and other advanced top-quality components.
  • In addition to the unique design, all consolidate the electric melt furnace’s durability and working efficiency over the current markets mini gold melting machine.

Product Specifications:

Description
1KG Gold Melting Furnace
Model
JL-MF-1
Input power
1500W
Power supply(220V)
50/60HZ,7A
Power supply(110V)
50/60HZ,14A
Measurement accuracy
±0.5%FS
Working environment
0-50℃,30-85%RH
Net size
310*360*370mm
Packing size
380*380*420mm
Net weight
11KG
Gross weight
13KG

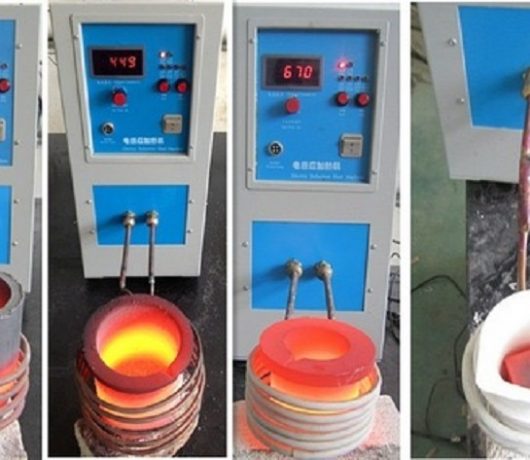

Mini/Small gold melting furnace

Application: melting gold, silver, jewelry, copper and other metals.

Processing capacity: The mini melting furnace is suitable for small-capacity plants.

Max. temperature of machine: 1150℃

Casting color: orange, black, red

Application: induction melting furnace for gold, silver, copper, iron, aluminum, etc.

Processing capacity: The gold melting furnaces for melting large quantities of gold into ingots or bullion.

Product Specifications:

Model(KW)
Melting Capacity(kg)
Material
steel,iron,
gold,sliver,
aluminum alloy
stainless steel
platinum,copper
zinc alloy
JXSC-15
3
10
3
JXSC-25
5
20
5
JXSC-35
10
30
10
JXSC-45
20
50
20
JXSC-70
25
100
25
JXSC-90
40
120
40
JXSC-110
50
150
50
JXSC-160
100
250
100

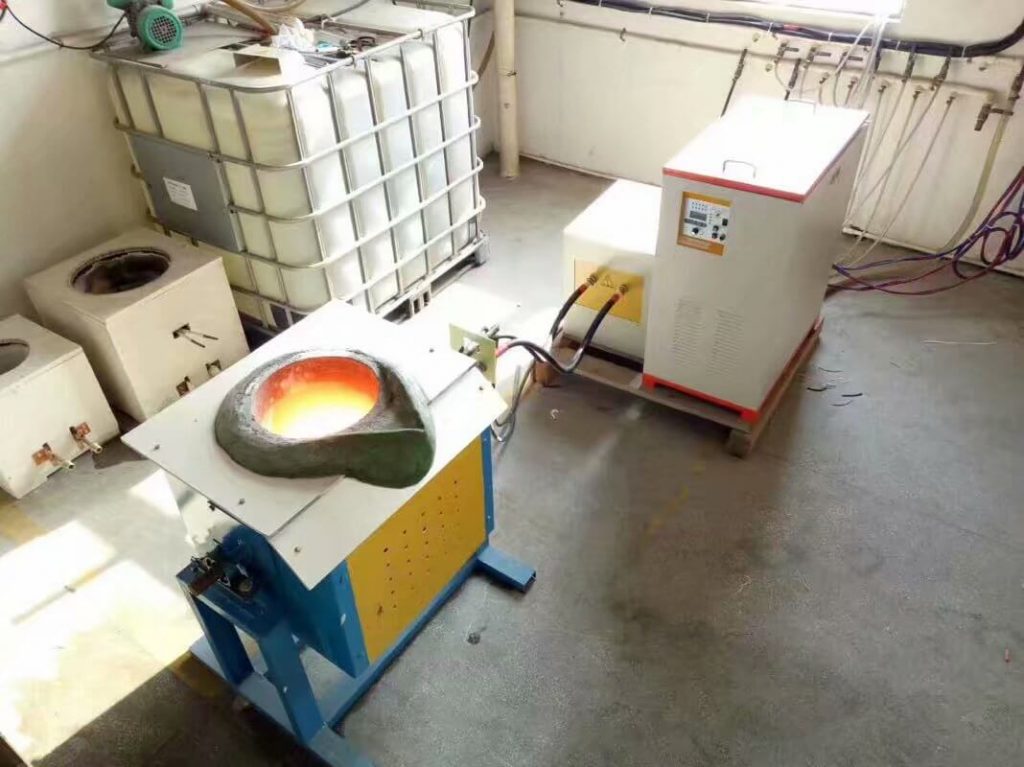

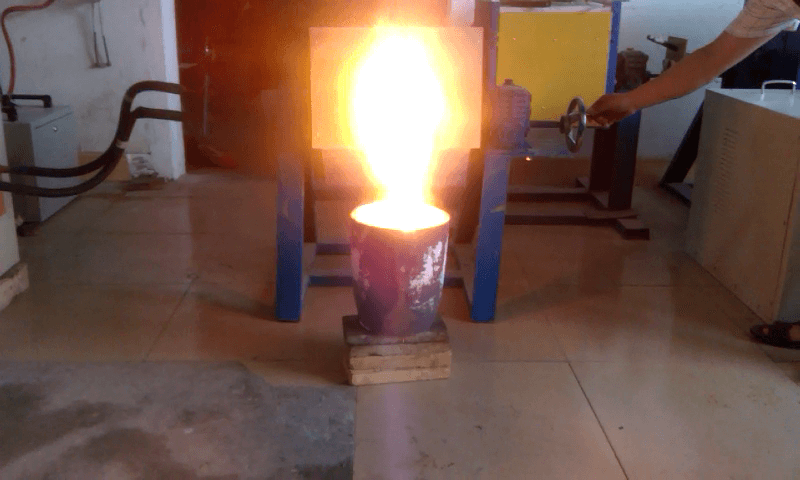

Tilting Gold Melting Furnace

Main features:

  • The intermediate frequency electric gold furnace adopts Siemens IGBT imported power device, which is more integrated and miniaturized and the effective output power reaches over 95%.
  • The gold smelting furnace uses ultra-small medium frequency induction heating power supply, 30% energy saving than traditional thyristor medium frequency, which is beneficial to uniform composition and scumming.

Application: mainly for melting gold, silver, copper, gold ash, gold sand, gold and silver powder, etc.

Processing capacity: the portable gold melting furnace can be over 1 kg, so it is convenient to move from one place to another.

Main Features:

  • Fast heating: The fastest heating is less than 1 second, and the heating speed can be adjusted and controlled.
  • Energy saving and environmental protection: The thermal efficiency is over 95%, a perfect substitute for thyristor, gas, coke and electric smelting furnaces.
  • The small induction gold melting machine is installed and easy to operate; there is no need to go to the door for commissioning.
  • It has the electromagnetic stirring function to make the melt more uniform, which is beneficial to scumming, reducing impurities, making the melt or casting more bright without shrinkage and shrinkage.
  • Machine safety is reliable: overcurrent, phase loss, water shortage, overvoltage, short circuit, and overheat protection, greatly improving the manufacturability of the gold melting equipment.

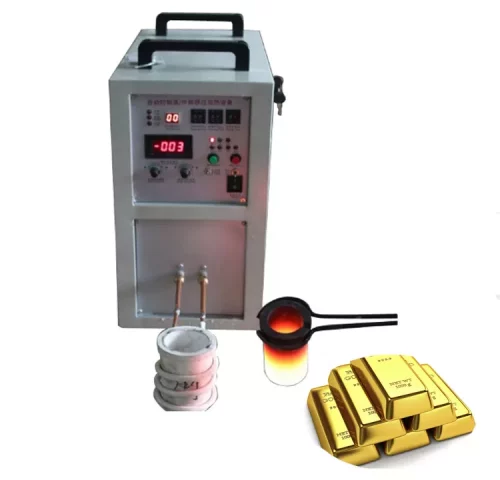

Portable gold melting furnace

Application: The advanced equipment for melting gold, silver, copper, and other nonferrous metals.

Processing capacity: The gold melting furnace can easily be 100% full load with 24 hours of continuous operating.

Main features:

  • The gold induction melting furnace applies IGBT technology, large output power and stable high efficiency.
  • Cabinet casing, compact design with small size and low weight, easy operation, simple and convenient maintenance.
  • Electric melting furnaces with various protection such as over-voltage protection, over-current protection, insufficient water protection, overheating protection, safe and reliable.

Product Specifications:

Case Color: Orange, Blue
Frequency: 50/60HZ
Warranty: 1 year
Melting Speed: 3-4.5mins

Cabinet type gold melting furnace

Cabinet type gold melting furnace
Model
Capacity
Voltage
Phase
Input Current
Output Current
Weight
Size
JXSC-1
1KG
220/380V
1/3
14A
100-400A
80KG
610*590*1030mm
JXSC-2
2KG
220/380V
1/3
15A
100-400A
80KG
610*590*1030mm
JXSC-3
3KG
220/380V
3
18A
100-400A
80KG
610*590*1030mm
JXSC-4
4KG
220/380V
3
20A
200-450A
80KG
610*590*1030mm
JXSC-5
5KG
380V
3
22A
200-500A
80KG
610*590*1030mm
JXSC-5.5
5.5KG
380V
3
24A
200-500A
80KG
610*590*1030mm
JXSC-6
6KG
380V
3
26A
200-550A
80KG
610*590*1030mm
JXSC-8
8KG
380V
3
28A
200-600A
80KG
610*590*1030mm

Gold Melting Furnace Application
