80TPH Alluvial Gold & Rock Gold Processing Plant in Venezuela

We guarantee the high quality machine in the mineral processing industry, established in 35 years of experience

minerals

mix of alluvial gold and rock gold, contains 25% mud (not very sticky). grade 0.5-1.2 g/t

capacity

80TPH (rock gold 40%, placer gold 60%)
in Venezuela

feed size

0-200mm, placer gold size 0-3mm

Customer's request

Recover gold as much as possible, improve gold

process flow

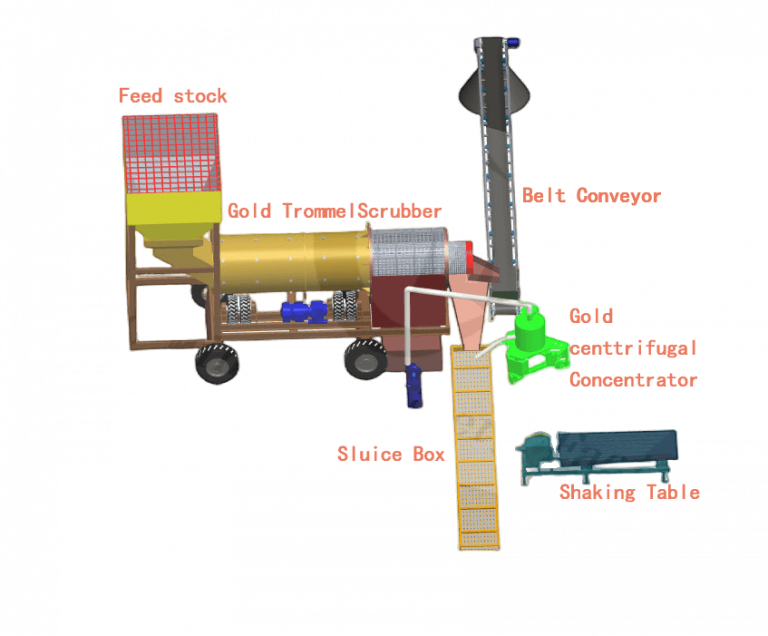

1. Placer gold processing: trommel screen

2. Rock gold processing: jaw crusher, vibrating screen, ball mill

3. Gravity separation: gold centrifugal concentrator, sluice box, shaking tables

Gold gravity separation is one of the commonly used methods for gold beneficiation. It mainly uses different specific gravity of materials and different sedimentation speeds in the medium to carry out stratified separation. It has the advantages of high efficiency, energy saving and environmental protection, and is also a relatively economical gold beneficiation process.

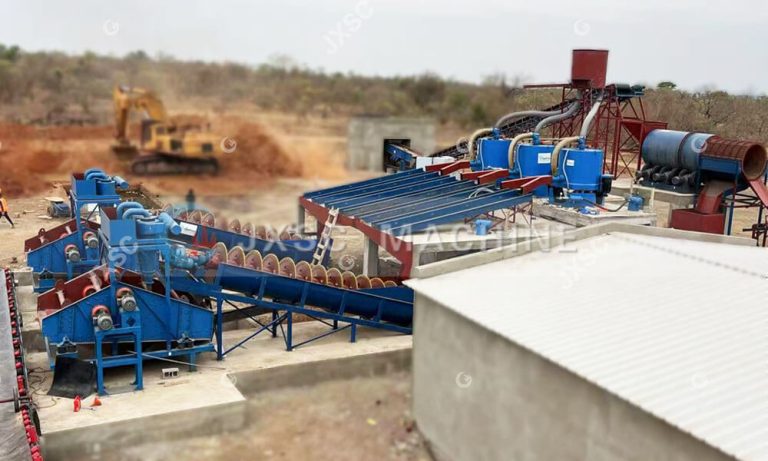

Gold Processing Plant Solutions & Flow Design

Main equipment

Equipment nameModelPower(kw)Qty
trommel screen1200*400111
gold concentrator800151
gold sluice1*6m112
shaker table6S/td>1.12
chute feeder600*50041
Coarse jaw crusher250*400151
Fine jaw crusher150*750151
belt conveyor650*15m5.53
Electrostatic Vibration FeederGZ10.51
Ball mill1530803
Gold concentratorφ6007.51
Slurry pump3/25.51
amalgamator400*6007.51
Smelting furnace//1
electric generator300kw/1
water pump/371
electric control cabinet//1
water pipe//1

Notes: in order to reduce the investment in the early stage of equipment, belt conveyors and hopper are made locally according to the site conditions.

jaw crusher
Jaw crusher

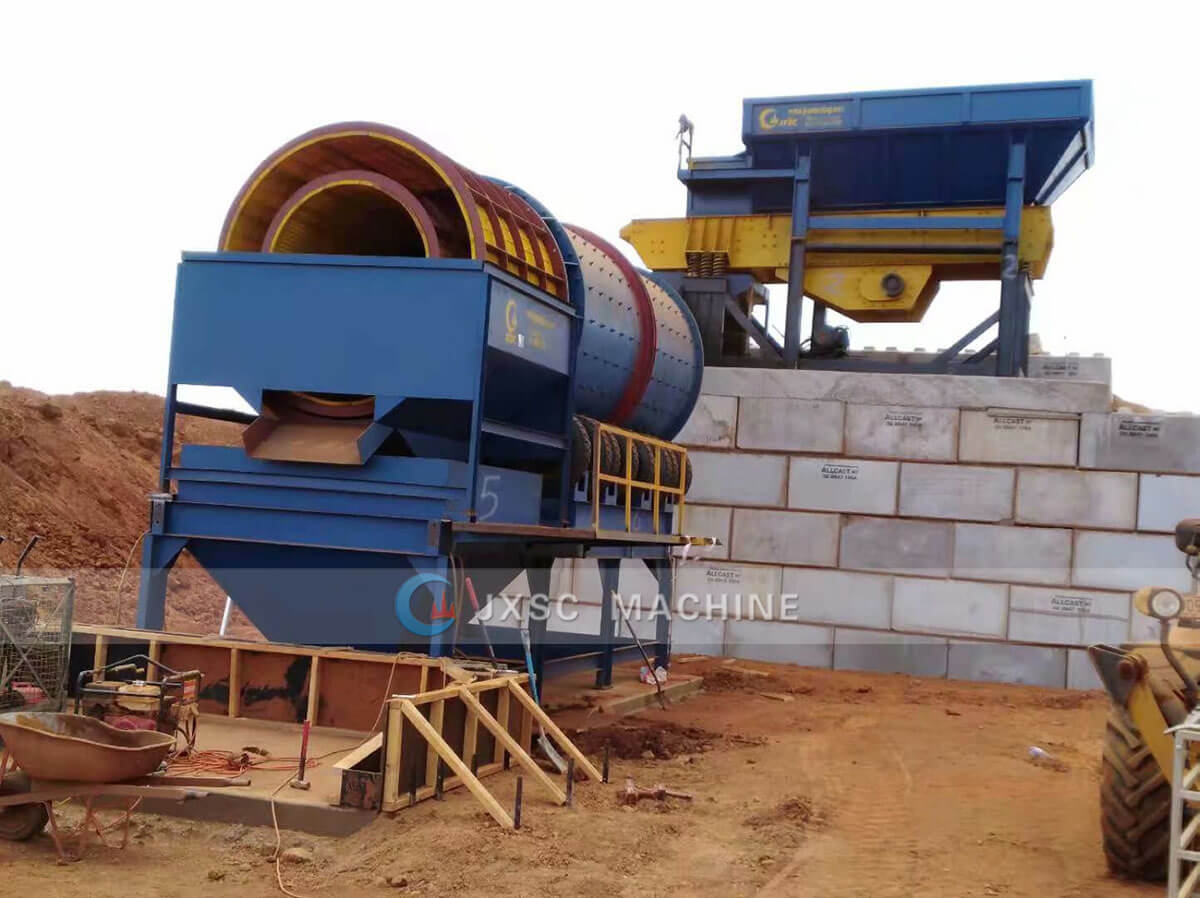

Trommel screen
Trommel screen
Ball Mill
Ball mill
slurry pump
Slurry pump
vibrating feeder
Vibrating Feeder
gold centrifugal concentrator
Gold centrifugal concentrator
gold shaking table
Gold shaking table
JXSC Gold Sluice Boxes
Gold sluice boxes
