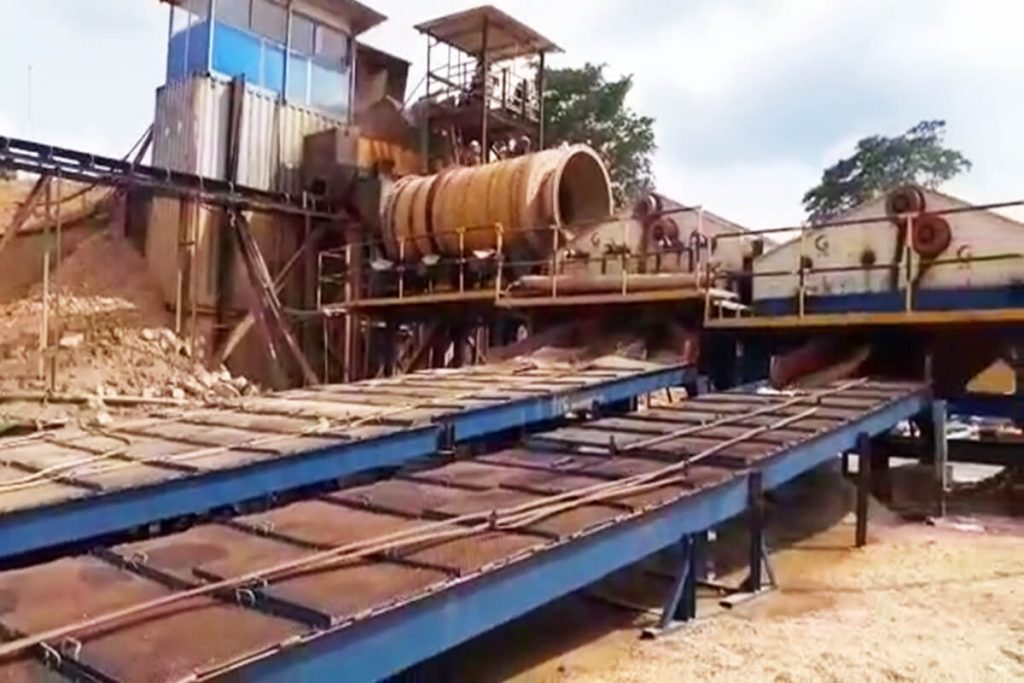

Have you detected traces of gold within clay deposits, only to find that their high viscosity and fine particle size make efficient extraction a daunting challenge? Indeed, in order to separate gold from clay has long been a major hurdle in the mineral processing industry. Traditional methods often neglect the critical stages of thorough washing and dissociation, thereby significantly compromising processing efficiency. However, the inherent value of gold—coupled with strong market demand—makes the optimization of clay-based gold separation processes an absolute necessity. Drawing upon our practical operational experience across more than 100 mining sites in regions such as Ghana, Kenya, and Nigeria, we have developed a comprehensive solution: a clay gold extraction process and equipment selection solutions that are highly efficient, rapid, cost-effective, and remarkably simple. Join us as we break down the key aspects of this process and equipment, transforming clay from a “stumbling block” into a “key to wealth”!
To separate gold from clay constitutes a core industry pain point in the mining of high-clay alluvial or placer gold ores. By 2026, mainstream gold extraction processes are projected to employ a sequence involving ore washing and dissociation, classification and screening, gravity concentration, and final purification. When paired with appropriately matched specialized equipment, this approach can consistently boost the overall recovery rate to over 90%.
Analysis of the Characteristics of Clay-Type Gold Deposits
This type of clay-rich gold ore typically contains a clay content exceeding 30%. This high clay content causes mineral particles to agglomerate into clumps, resulting in extremely poor flowability and consequently impairing sorting efficiency.
The gold particles are embedded in extremely fine grains—mostly below 0.01 mm—and may even exist at the micron or nanoscale; as a result, conventional screening or gravity separation equipment struggles to capture them effectively.
Clay minerals (such as montmorillonite and kaolinite) possess strong adsorption properties; they readily encapsulate gold particles, forming a “clay shell” that hinders gold liberation.
Ordinary washing and screening processes are fundamentally incapable of achieving effective liberation. On the contrary, a portion of the gold remains entrained within the fine clay particles, further reducing the overall recovery rate. The cumulative effect of these issues renders the technical challenge of separate gold from clay a major hurdle within the mineral processing industry.
Mainstream Processes To Separate Gold From Clay Ores
(1) Ore Washing Stage
Ore washing serves as the fundamental prerequisite to separate gold from clay, achieving a clay lump disintegration rate of approximately 95%.
High Clay Ore:
If the clay content in your mining area exceeds 20%, a rotary scrubber must be employed as the primary processing unit. It is highly recommended to prioritize models equipped with a high-pressure spray system and internal spiral blades; this configuration utilizes a dual-action mechanism—combining rotational kneading with high-pressure flushing—to effectively break down clay lumps and prevent gold particles from being lost due to clay encapsulation. Throughput capacities range from 1-400 tons per hour, catering to the specific needs of small-to-medium as well as large-scale mining operations, with desliming efficiencies exceeding 90%.
Low-Clay Ores:
Conversely, in instances where the clay content is minimal or entirely absent, a trommel screen may be utilized instead.
All JXSC ore washers can be configured to provide a comprehensive, all-in-one washing and screening solution, enabling the material to be processed in a single pass to achieve the precise particle size required for subsequent mineral beneficiation stages.
(2) Classification Stage
Following the ore washing process, the particle size distribution of the ore material is extremely broad, ranging from millimeter-scale gravel to micron-scale fine slimes. If this mixture were to proceed directly to the gravity separation stage, the coarse particles would interfere with the equipment’s ability to capture fine-grained gold.
Consequently, the ore slurry resulting from washing typically requires size classification using screening equipment; the precision of this stage directly determines the subsequent equipment load and recovery rate. The primary objective is to separate fine slimes—particles smaller than 0.074 mm—from the coarser mineral particles. Among the most popular choices are trommel screens or vibrating screens, which typically utilize screen apertures of 1–3 mm to rapidly screen out gravel and other impurities.
(3) Enrichment Stage

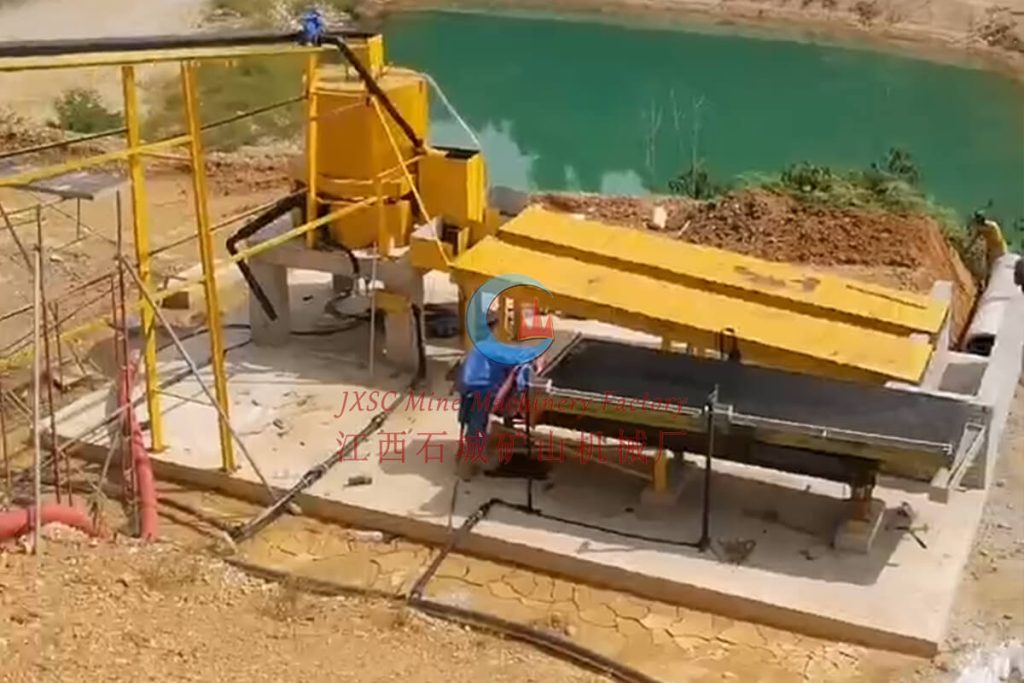

Given the characteristic mixture of coarse and fine gold particles found in clay-rich ores, this stage typically employs a combination gravity separation process, such as jig separators for rough concentration, followed by a centrifugal concentrator for fine concentration. The jigs are responsible for capturing coarse gold particles larger than 0.1 mm, achieving a recovery rate of 85%. Their advantages lie in their high processing capacity (ranging from 1 to 25 tons per hour per unit) and low operating costs. Conversely, the centrifugal concentrators serve to enrich ultra-fine gold particles smaller than 0.01 mm, achieving a recovery rate of over 90%.
(4) Purification Stage:

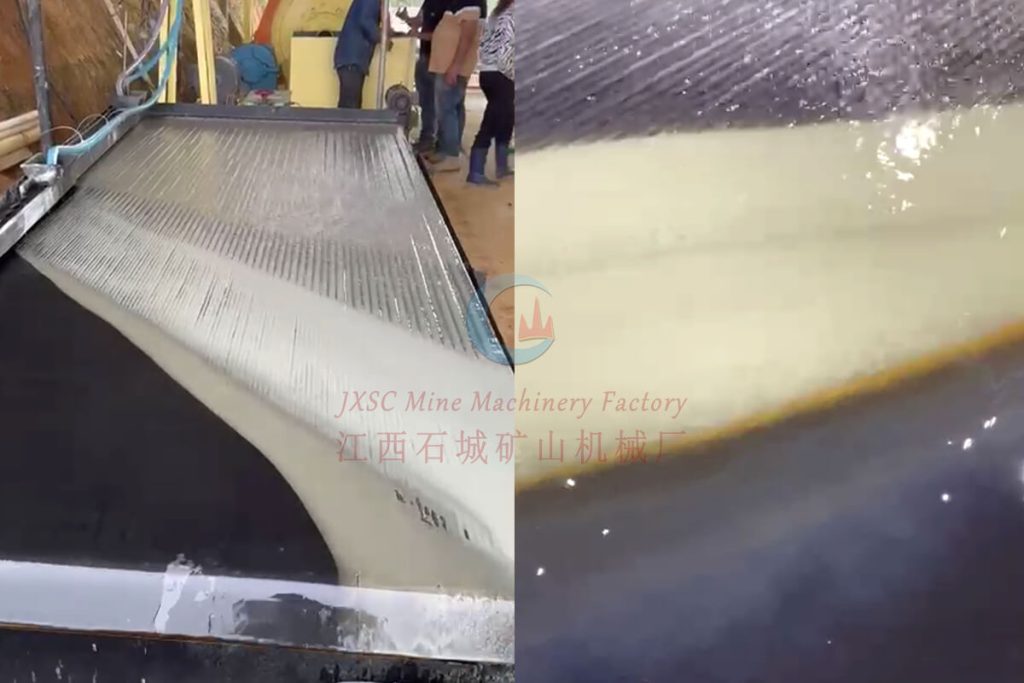

Following gravity concentration, the grade of the crude gold concentrate typically falls within the range of 10–30 g/t, while still containing significant quantities of heavy-sand impurities—such as quartz and iron oxides. This stage typically employs a secondary enrichment scheme utilizing a combination of shaking tables and sluice boxes. Shaking tables separate heavy minerals (such as gold) from light minerals (such as quartz) through the reciprocating motion of the striations on the table surface. When paired with sluice boxes positioned at the tailings discharge end of the shaking table, the system effectively captures ultrafine gold particles that may have escaped the table; following this process, the grade of the gold concentrate can be directly elevated to over 300 g/t.
Specialized Equipment Selection Guide To Separate Gold From Clay
Conduct Ore Sample Testing Before Selecting Equipment
Prior to procurement, it is imperative to send representative ore samples to the supplier for a comprehensive beneficiation analysis. Equipment selection should only proceed after clearly establishing three core parameters: the ore’s clay content, the particle size distribution of the embedded gold, and the projected recovery rate. For instance, if the clay content is high, a rotary ore washer should be utilized; conversely, a rotary screen would be more appropriate. Furthermore, if fine-grained gold accounts for more than 30% of the total content, a centrifuge must be included in the equipment configuration.
Match Equipment Configuration to Processing Capacity
Small-scale mining operations with a daily processing capacity of 10–50 tons should opt for integrated, mobile gold washing units. Medium-scale operations processing 100–200 tons per day are best served by modular, stationary production lines, utilizing wear-resistant, high-manganese steel components for critical parts to minimize maintenance and operating costs. Large-scale operations processing over 200 tons per day can further incorporate automated systems to reduce labor requirements and enhance long-term profitability.
Avoid Pitfalls in Core Equipment Specifications
When selecting a rotary ore washer, prioritize models equipped with adjustable high-pressure water jets and high-manganese steel liners, which offer a wear-resistant service life of over three years. For centrifuges, choose fully automated discharge models; these reduce labor requirements by 70% compared to manual models and ensure a more consistent recovery rate.
Conclusion
Want to easily separate gold from clay? It mainly depends on precise equipment selection, from the powerful dissociation of high-pressure washing machines to the efficient enrichment of centrifugal concentrators; each step is crucial to the final recovery rate. During the refining phase, a combination of shaking tables and gold sluice mats is employed to significantly boost both the recovery rate and grade of the gold concentrate.
The appropriate gold extraction equipment for clay is selected based on a comprehensive assessment of specific clay characteristics (particle size, moisture content, and gold grade) and site conditions (power supply and water sources). JXSC offers a complete range of gold processing systems covering placer/alluvial gold and rock gold ore solutions. We support customized designs—including mobile, stationary, and modular configurations—to facilitate sustainable gold production operations.
If you require a customized, optimal gold extraction solution for your specific deposit, or need expert assistance with equipment configuration, please contact our expert of mineral processing engineers today!
