Do you know how professional mineral processing teams efficiently extract diamonds from ore? With global demand for diamonds currently on a steady rise—projected to result in a 12% supply deficit for rough diamonds by 2026—the efficiency of the mineral processing stage directly determines a mine’s overall profitability. This article will uncover the technical secrets behind the entire extraction chain—from washing to purification—for recovering diamonds from various ore sources, such as kimberlite and alluvial deposits, helping you maximize commercial value while ensuring a recovery rate of 98%.
The process to efficiently extract diamonds from ore involves crushing, washing, enrichment, and intelligent sorting. With advanced equipment such as jigs and X-ray separators, a recovery rate of up to 99% can be achieved. It not only ensures the precise separation of diamonds but also minimizes resource waste through a tailings recovery system.
Basic Characteristics and Extraction Logic of Diamond Mines
Analysis of Major Ore Compositions:
Kimberlite Ore (Primary Deposit):
The diamonds typically enclosed within kimberlite often exhibit intact octahedral crystal forms. The diamond content within the ore is extremely low (averaging only 0.1–0.5 carats per ton) and is frequently intermixed with associated minerals such as garnet, pyroxene, and phlogopite. Although the ore itself is brittle, high-quality gem-grade diamonds can account for as much as 15% to 25% of the total yield.
Alluvial Diamond Deposits (Secondary):
Diamonds found in alluvial deposits (such as riverbed placers) have typically undergone natural transport and abrasion, resulting in more rounded crystal forms. However, the ore grade may be lower, and the deposits often contain significant quantities of gravel and clay. Fewer impurities, high clarity, a high proportion of large stones, and a probability of up to 35% of being gem-quality.
Key Challenges in Extracting Diamonds from Ore:
Kimberlite diamonds, a Mohs hardness of 10, making them the hardest naturally occurring minerals; furthermore, the raw ore lumps are typically large in size, rendering them difficult to crush. Due to the complex characteristics of these ore deposits, mining and beneficiation costs are often substantial. Consequently, the crushing and grinding stages demand equipment with exceptional wear resistance.
In alluvial diamond deposits, clay and gravel constitute over 90% of the raw ore, and the diamond particles typically exist in a state of complete liberation. Therefore, the pretreatment phase must prioritize the deployment of washing and desliming equipment to prevent issues such as clogging and reduced sorting accuracy during subsequent separation stages.
Expert-Level Process Guide To Extract Diamonds from Ore
1. Crushing Stage
Function:
For primary ore deposits such as kimberlite and lamproite, this stage employs a multi-stage crushing process to reduce large blocks of raw ore to a suitable particle size. Its purpose is to fully liberate diamond crystals embedded within the gangue while strictly controlling crushing impact forces to prevent diamond fragmentation and subsequent loss of value. Since diamonds possess relatively low toughness, excessive crushing can lead to crystal breakage or the loss of fine diamonds; therefore, a multi-stage crushing approach is essential.
Core Equipment:
Jaw crushers are typically utilized for primary crushing, handling large ore blocks exceeding 1 meter in size. For the secondary and tertiary crushing stages, cone crushers are selected to process ore blocks smaller than 50 cm.
Process effect:
The JXSC kimberlite diamond ore crushing process can achieve more than 98% diamond individual liberation, and the over-crushing rate is controlled within 2%, providing qualified feeding conditions for subsequent sorting stages.
2. Washing and Screening Stage
Process Function:
For alluvial deposits—which often contain clay and fine silt that can easily encase diamond particles—this stage addresses the issue of reduced accuracy in subsequent sorting operations. Through hydraulic scouring and screening, the washing process removes clay-based impurities, thereby preventing blockages in sorting equipment and avoiding a decline in operational efficiency.
Core Equipment:

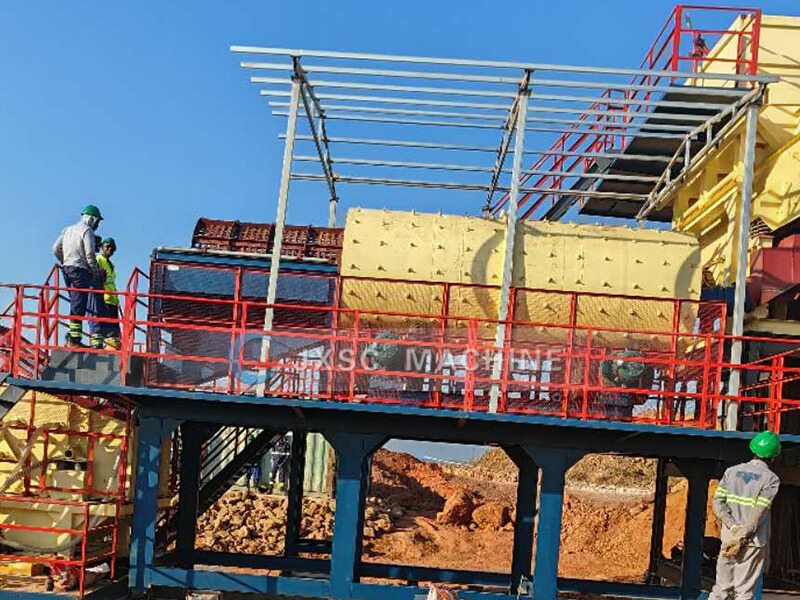

- Rotary Scrubber: Ideal for alluvial placer deposits with high clay content; capable of processing 1 to 400 tons per hour, with a washing efficiency exceeding 95%.
- Trommel Screen: Better suited for processing ore with lower silt content but higher gravel content; processing capacity can reach up to 200 tons per hour.

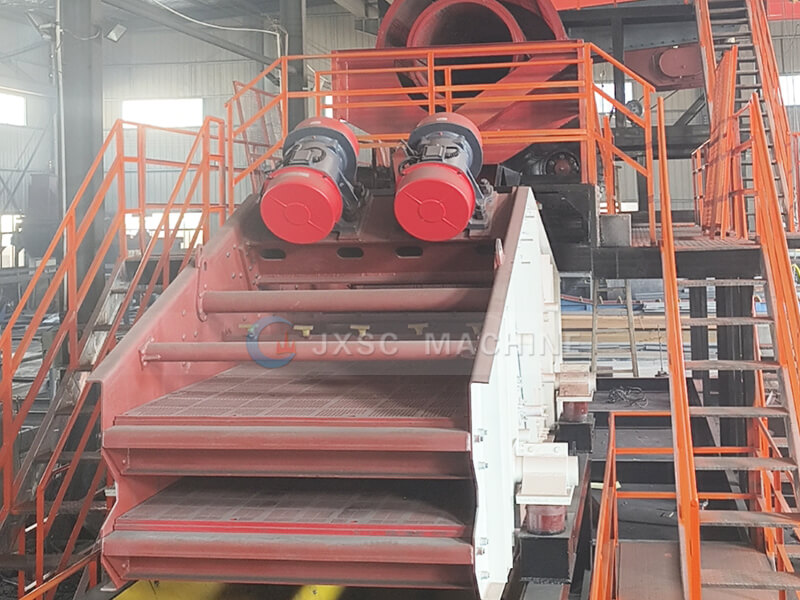

- High-Frequency Vibrating Screen: Responsible for removing fine silt particles smaller than 0.1 mm; achieves a screening efficiency of over 95% and can be used in conjunction with the two aforementioned devices.
Process Results:
This highly efficient diamond washing and screening process reduces ore impurities by over 50%, significantly lowering the operational load on downstream equipment and boosting diamond recovery rates. Typically, for mining areas with high clay content, the combination of a “Rotary scrubber + High-Frequency vibrating screen” is recommended; for operations in arid regions, an optional water circulation system can be integrated to reduce water consumption costs by 40%.
3. Enrichment Stage
Process Function:
Although the density of diamonds (3.52 g/cm³) is slightly lower than that of common associated minerals (such as garnet, at 4.0 g/cm³), gravity separation can still be effectively utilized to achieve preliminary enrichment. This process reduces the volume of waste rock requiring further processing by over 90%, thereby significantly lowering the costs associated with subsequent precision sorting.
Core Equipment:
- Sawtooth-wave Jig Separator: Due to its highly efficient capability for regulating pulp pulsation, this device serves as the core rough-sorting equipment for rapidly extracting diamonds from ore. It facilitates the stratification of minerals based on their varying densities, enabling the precise separation of diamonds from waste rock.
- Heavy Medium Cyclone: This device utilizes density differences within a suspension medium to sort fine-grained diamond ore in the 0.2–0.5 mm size range. Its recovery efficiency surpasses that of the jig, reaching up to 95%. The DMS process is particularly well-suited for processing alluvial diamond deposits characterized by a high proportion of fine-grained diamonds.
Process Outcome:
This enrichment stage enables the recovery of over 95% of the extract diamonds from ore while simultaneously rejecting more than 95% of the waste rock. Consequently, the volume of material requiring subsequent sorting and processing is reduced to just 5%–10% of the original raw ore volume.
4. High-Precision Recovery Stage
Process Function:
The precise identification of diamonds within the enriched concentrate constitutes the pivotal stage that determines overall economic viability. This process necessitates the handling of complex and highly variable mineral assemblages—presenting a particular challenge when dealing with micro-diamonds ranging from 0.1 to 2 mm in size.
Core Equipment:
- X-ray Intelligent Sorters: These devices identify diamonds by leveraging their unique fluorescence response under X-ray radiation. Unaffected by surface impurities, they achieve a diamond detection rate of 99.5% across a particle size range of 0.1 to 50 mm. While widely applicable and high in cost, they are particularly well-suited for mines with a high proportion of gem-quality diamonds.
- Photoelectric Color Sorters: These machines perform sorting based on differences in color and transparency. Priced approximately 40% lower than X-ray sorters, they are suitable for mines where industrial-grade diamonds predominate, though their processing capability for micro-diamonds is slightly less robust.
Process Results:
The high-precision diamond sorting stage achieves an overall recovery rate exceeding 98%, yielding a diamond concentrate with a purity level of over 90%.
5. Purification Stage
Process Function:
Magnetic separation removes residual trace amounts of heavy minerals remaining after gravity separation and X-ray sorting, ensuring that the final rough diamonds meet international trading standards (impurity content < 0.1%).
Auxiliary Equipment:
Magnetic separators utilize magnetic attraction to remove associated magnetic impurities, such as magnetite and ilmenite.
Process Outcome:
The final purification and extract diamonds from ore is elevated to 99.9%, fully complying with international trading requirements for rough diamonds.
6. Tailings Processing and Secondary Recovery
Function:
On one hand, this process recovers & extract diamonds from ore in tailings waste materials. On the other hand, it subjects the tailings to environmentally sound treatment to ensure compliance with the discharge regulations of various mining sites. This approach simultaneously enhances economic efficiency and satisfies environmental protection requirements.
Core Equipment:
Typically, the process begins with a secondary “scavenging” operation on the tailings, utilizing jig separators for rough sorting, followed by centrifugal concentrators or other gravity separators for the second fine sorting. The primary objective is to recover ultra-fine diamonds that are prone to being overlooked during initial processing. Subsequently, the tailings undergo dewatering via vibrating screens; meanwhile, the mineral processing wastewater is treated through sedimentation and filtration, achieving a recycling rate of over 90%.
Process Benefits:
Investing in this diamond tailings processing stage mitigates environmental compliance risks, while the secondary recovery operation serves to boost the overall recovery rate of the entire plant.
Conclusion
Whether extracting diamonds from primary kimberlite deposits or alluvial placer mines, a specialized beneficiation process and equipment selection—precisely tailored to the specific characteristics of the ore—serve as the cornerstone for ensuring high diamond recovery rates, minimizing operational costs, and maximizing project profitability. Our expert-level diamond extraction processes encompass every stage: crushing, washing and desliming, concentration, precision sorting, and extending through to final purification and tailings recovery. With over 40 years of experience in designing diamond beneficiation production lines and supplying integrated equipment solutions, JXSC offers customized equipment & solutions tailored to your specific ore properties, production capacity requirements, and investment budget.
For detailed technical specifications or process design consultations, please do not hesitate to contact us; we are committed to helping you achieve diamond recovery rates exceeding 95% while simultaneously minimizing the risk of diamond breakage.
