Mineral Jig Separator
Capacity: 1-25t/h
Feeding size: <10-25mm
Application: gold, diamond, coltan, tin, tungsten, titanium, manganese, tungsten ore, fluorspar ore, iron ore, chrome ore, etc mineral processing plant.

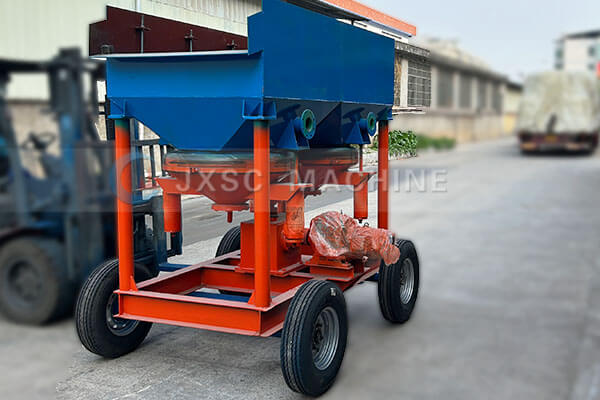

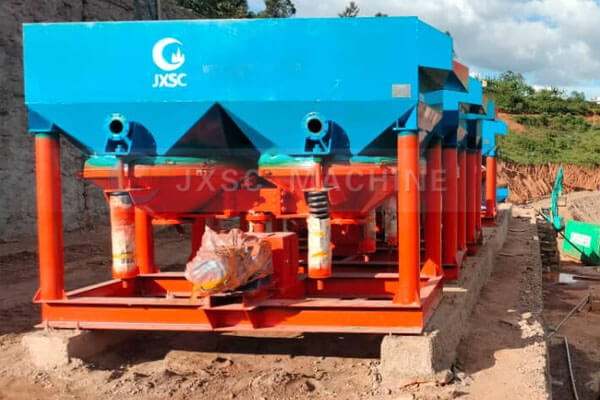

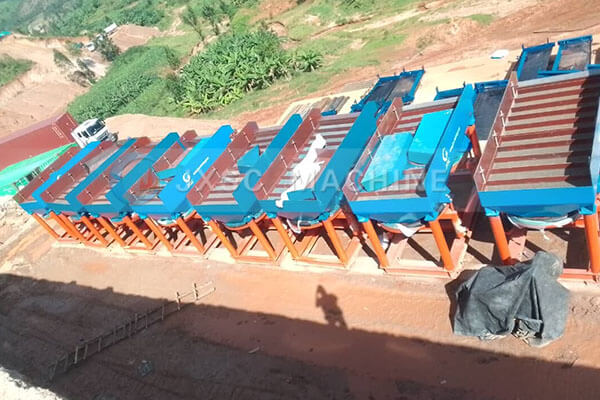

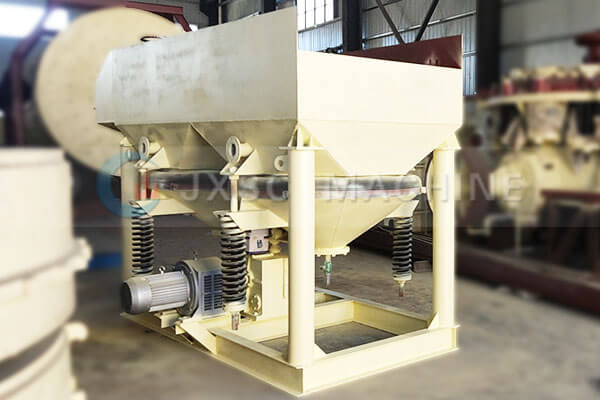

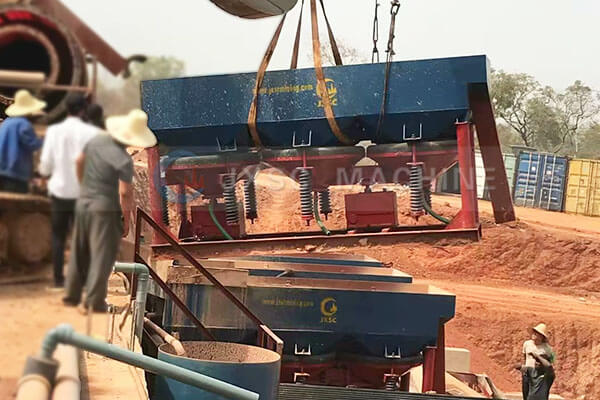

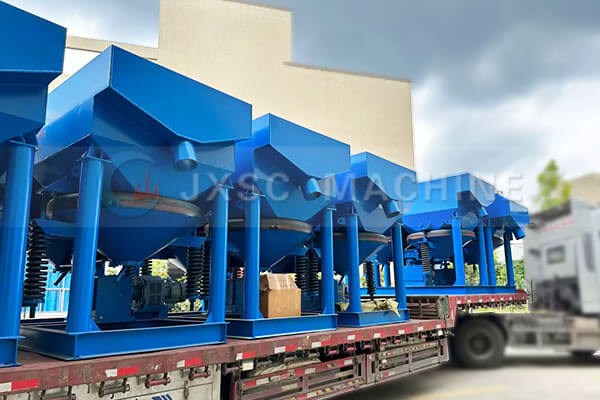

Products display
Introduction of jig separator
Jig separator (jig concentrator, jig machine, mineral jig, mining jig) is a mining gravity separation equipment that drives pulses of water upwards through a thick bed of settled sediment to keep it loose and agitated. This achieves gravitational separation by allowing the denser minerals to sink easily and quickly through the lighter minerals. Jig separator are widely used in various heavy metal, metallic and non-metallic mineral processing plant.
working principle of jig separator
The selected ore is continuously fed to the sieve plate of the jig chamber to form a thick material layer. The rising water flow is periodically blown through the sieve plate, causing the bed to rise and loosen, and then the water flow descends (or stops rising).
During this process, heavy minerals enter the lower layer and light minerals transfer to the upper layer. It is difficult for materials with low density to enter the lower space through the material layer with high density. Heavy minerals enter the concentrate tank through the screen, and light minerals enter the tailings tank for discharge.
Why Choose JXSC jig separator
features of Advantages of jig separator
1. It can be connected with a trommel screen, rotary scrubber, gold sluice box and other equipment to form a small-scale mobile jig plant, used in gold and diamond washing processing plants.
2. High recovery rate – recover 0.5% to 30% concentrate, increasing recovery rate.
3. Wide feed and particle size recovery – feed size up to 30mm, which reduces the step of prescreening the feed. Improve the potential for gravity recovery and avoid excessive grinding
4. High efficiency – It occupies a small area and is simple and convenient to operate. Energy-saving and environmentally friendly mineral processing equipment newly developed and produced in recent years. It has an excellent effect on the beneficaition of various metal and non-metallic minerals.
models & specifications
| Model | jigging chamber | diaphragm | Feeding size(MM) | Back Wash Water (M3/H) | Back Wash Water Pressure（Mpa） | Process Capacity (T/H) | Motor power (KW) | Dimension (MM) | Weight (Ton) | ||
| Shape | Area | Stroke | Jig frequency | ||||||||
| JT0.57-1 | Trapezoid | 0.57 | 10-17 | 80-120 | ＜10 | 18-20 | ≥0.1 | 1-3 | 1.5 | 1550x780x1530 | 0.6 |
| JT1-1 | Trapezoid | 1.1 | 10-17 | ＜10 | 20-30 | 2-4 | 2.2 | 2270x1110x1890 | 0.9 | ||
| JT2-2 | Trapezoid | 2.3 | 10-17 | 60-100 | ＜25 | 40-50 | 4-8 | 3 | 2900x1550x2000 | 1.4 | |
| JT4-2 | Trapezoid | 4.5 | 20-30 | ＜25 | 80-100 | 10-15 | 7.5 | 3900x2000x2460 | 3.2 | ||
| JT4-2A | Trapezoid | 4.5 | 20-30 | ＜25 | 80-100 | 10-15 | 4*2pc | 3900x2000x2460 | 4 | ||
| JT5-2 | Trapezoid | 5 | 20-30 | ＜25 | 80-100 | 10-20 | 7.5 | 4000x2050x2660 | 3.2 | ||
| JT6-3 | Trapezoid | 6.8 | 20-30 | ＜25 | 120-150 | 20-25 | 7.5+4 | 5400x2000x2460 | 5 | ||
