In placer/alluvial diamond mining, how can low-grade ore be efficiently separated from complex terrain? The answer may lie in efficient washing plant technology. As a key source of diamond resources, alluvial deposits are highly sought after due to their widespread distribution and low mining costs. However, efficiently separating diamonds from the sand and gravel presents a significant challenge. Modern mines must meet environmental standards for low water consumption and zero pollution, making traditional processes difficult to achieve. In this context, washing equipment, a critical link between ore collection and diamond extraction, directly determines the project’s economic benefits and regulatory compliance.
How can alluvial diamond mining achieve efficient diamond recovery? The key lies in choosing the right washing plant! Mobile diamond washing plants offer flexibility in remote mining locations, modular designs cater to small, medium, and large mines, while fixed solutions are ideal for long-term, stable production. Optimizing high-pressure washing and gravity sorting processes can increase recovery rates. Choose a customized diamond washing solution for more efficient and profitable mining!
What is Alluvial Diamond Mining?
Alluvial diamond mining involves extracting diamonds from sediment deposited in rivers, riverbeds, or paleochannels. Similar to other placer deposits, alluvial diamond deposits are typically well-sorted, and diamond crystals are often well-preserved due to their high hardness. Sediments typically contain a mixture of gravel, sand, and clay, where diamonds are more dense, making them easier to concentrate through gravity separation.
Alluvial mining only involves processing surface sediments, whereas hard rock diamond mining requires excavating shafts hundreds of meters deep and crushing the kimberlite.
In terms of diamond separation equipment requirements:
- Alluvial diamond mining primarily relies on washing equipment and gravity separators.
- while hard rock diamond mining requires a complete crushing, grinding, and heavy media separation system.
How Alluvial Diamond Wash Plants Work
The core workflow of an alluvial diamond washing plant consists of four key steps: excavation, screening, cleaning, and recycling.
Alluvial Diamond Mining Process
1. Diamond Mining
First, the topsoil from the mining area is removed by excavator or water jet and transported to the washing plant. During this step, special attention must be paid to preserving the original structure of the ore.
2. Primary Screening

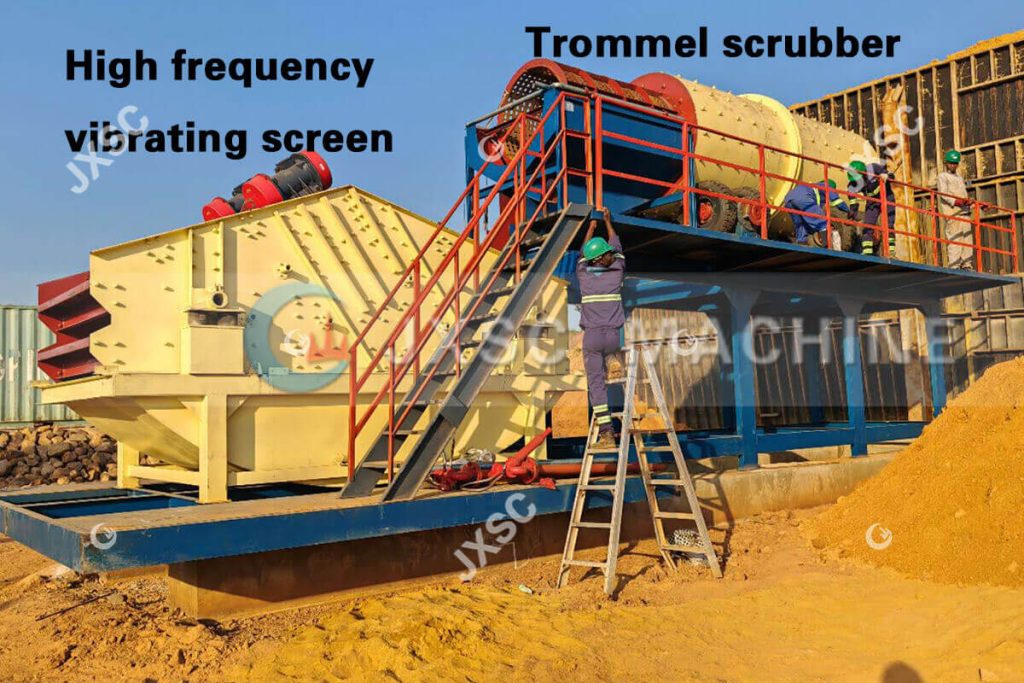

The collected ore can be pre-processed by a vibrating screen or grizzly screen. Screens with 20-50mm apertures separate large gravel, tree roots, and other impurities, retaining only fine-grained ore for the next step. For ore with a high clay content, high-pressure water jets are used to flush the screen surface to prevent clogging.
3. Diamond Ore Washing
Removing clay inclusions from the diamond surface is also a key step in separating diamonds from gangue minerals. A trommel scrubber is typically used to break up clay clumps. For ore with less clay content, a drum screen can be used instead, providing pure material for the subsequent beneficiation stage.
4. Concentrate Extraction
After washing, the slurry enters gravity separation equipment (such as jigs) for rough separation, utilizing the density difference between diamonds and gangue minerals for initial enrichment. The rough concentrate then passes through an X-ray fluorescence separator or electromagnetic separator to remove associated minerals such as sulfides and zircon, ultimately yielding a diamond concentrate with a purity exceeding 99%.
This standardized process ensures the effective capture of 90%+ of diamond particles. It can also be equipped with a water recycling system to reduce wastewater discharge, complying with the mine’s environmental compliance program.
Best Diamond Wash Plant Solutions
Mobile Diamond Wash Plant
Suitable for remote mining areas and dispersed mining sites. For mountainous areas with limited access or small, dispersed mining sites, mobile diamond washing plants feature a modular design, such as mobile jig plants (integrated screening, washing, and separation functions), allowing for flexible transportation to site. They can also be powered by diesel generators, suitable for areas without a power grid, with a processing capacity of 1-20 tons/hour, meeting the needs of small-scale mines.
Fixed Diamond Wash Plant

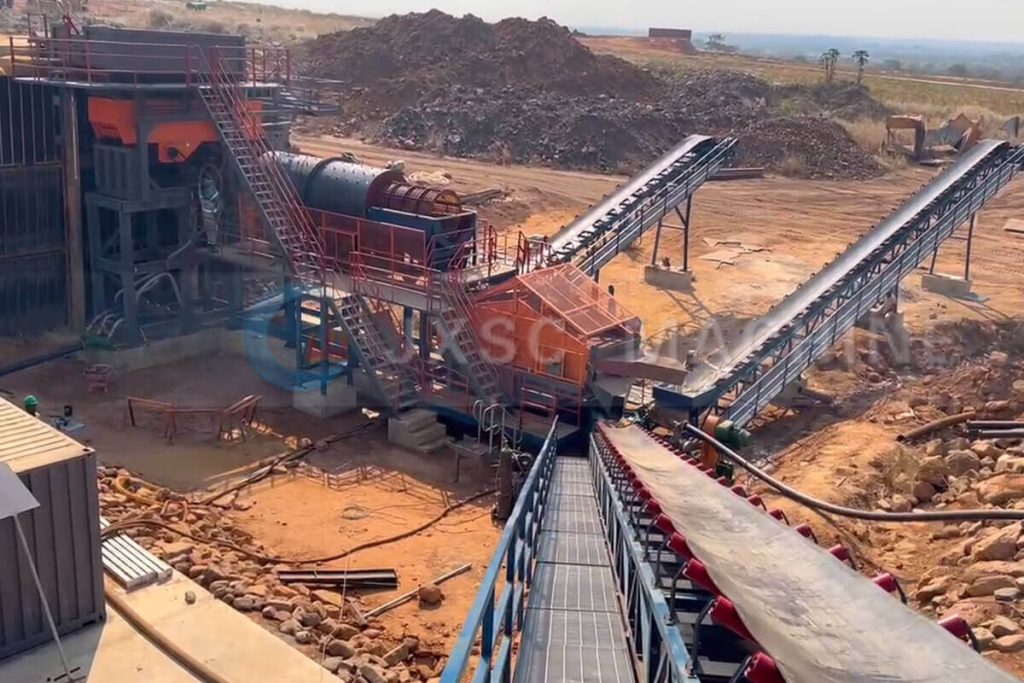

Suitable for large-scale placer mines and high-production demands. Large-scale placer mines require a fixed ore washing system. Core equipment includes a drum washer, high-frequency vibrating screen, and jig separator, all fully automated through a PLC control system. The equipment is designed for high-load, continuous operation. For example, the drum washer features a thickened, wear-resistant steel lining for a long service life.
Alluvial Diamond Wash Plant Main Equipment

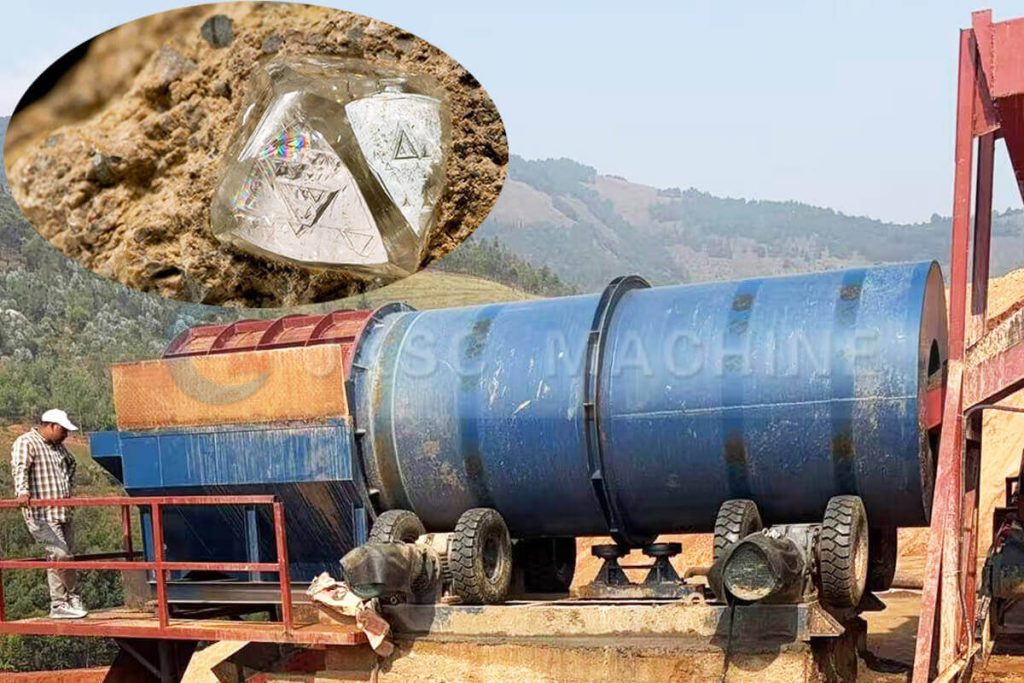

- Rotary scrubber: Efficiently screens clay ores and is suitable for mines with high mud content. It primarily scrubs the ore using an inclined, rotating drum (with skimmers or rubber linings on the inner wall).

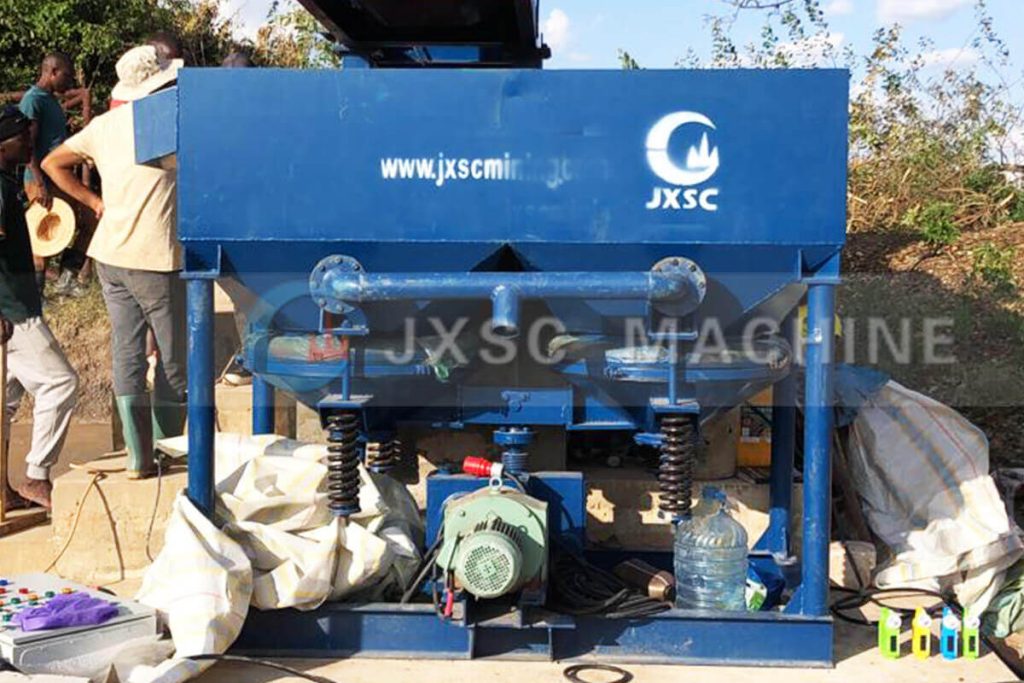

- Jig separator: Core gravity separation equipment, improving diamond particle recovery. Diamonds and other heavy minerals settle to the concentrate area at the bottom of the jig chamber, while gangue minerals are discharged with the water flow.
- Mobile diamond washing plant: Integrated washing, screening (rotary scrubber + trommel screen), and recovery (jig separator) functions allow for flexible deployment.
Efficient ore washing in placer/alluvial diamond mining relies on the precise matching of equipment and application scenarios. Depending on project requirements, you can choose between: mobile diamond jig plants, flexibly adapting to small, medium, and remote mines. Fixed diamond washing plants ensure stable long-term operation. JXSC also achieves recovery rates of 90%+ through intelligent control systems and process optimization. Whether you’re looking for short-term exploration or long-term mining, contact us today for comprehensive technical support, from equipment selection to production implementation. We can customize efficient mineral processing solutions tailored to your mine’s needs and unlock the maximum value of placer/alluvial diamond mining.
