Why do other companies’ copper concentration plants make higher profits than yours, even with copper ore of the same grade? Faced with fluctuating international copper prices and tightening environmental policies, global copper mining companies are seeking more efficient and lower-cost beneficiation solutions. The global copper consumption market is currently experiencing a surge in demand due to the expansion of the new energy industry. Still, most mines are facing the dilemma of declining ore grades and increased mining difficulty. Traditional processes often achieve recovery rates of only 60%-80%, and these unnecessary costs are quietly eroding your profit margins. However, by optimizing key technologies such as gravity separation, flotation, leaching, tailings treatment, and electrolysis, the overall recovery rate can be increased to over 90%, while simultaneously reducing energy consumption and tailings treatment costs.
JXSC provides 5 major profit-enhancing technologies for copper concentrators. These include upgrading gravity separation from physical separation, optimizing flotation for chemical separation, leaching utilization of low-grade resources, resource recycling and cost control in tailings treatment, and electrolytic refining to high-purity cathode copper (99.99%). Whether it’s sulfide ore, oxide copper ore, or low-grade copper concentration, optimization of each technology can bring significant economic benefits.
5 copper Concentration technologies
Technology 1: Copper Gravity Separation
– Low-Cost Copper Ore Enrichment
Principle:
The core principle of copper gravity separation technology is based on the density difference between copper minerals and gangue minerals, achieving separation through the action of a gravitational field. In copper concentration plants, the density of copper minerals (such as chalcopyrite and chalcocite) is typically between 4.1 and 5.0 g/cm³, while the density of gangue minerals (such as quartz and feldspar) is only 2.6 to 2.7 g/cm³. This significant density difference provides natural conditions for gravity separation.
Key Equipment:

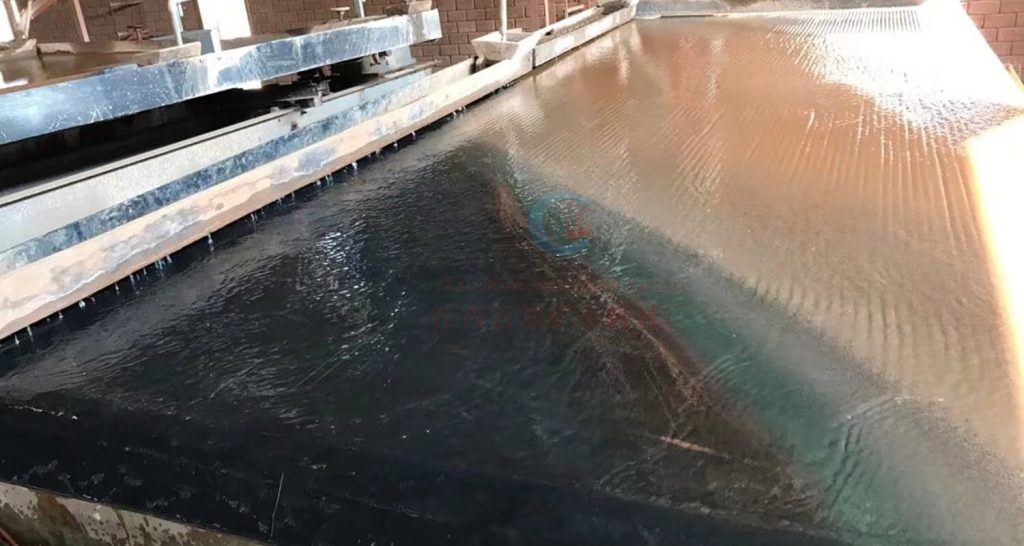

Gravity separation equipment uses water flow or centrifugal force to accelerate the settling of high-density copper mineral particles, thus separating them from low-density gangue. For example, spiral chutes use vertical alternating water flow to stratify mineral particles according to density, while shaking tables achieve particle classification through the combined action of inclined water flow and table vibration.
Application Scenarios and Advantages:
Copper gravity concentration is primarily suitable for separating coarse-grained, disseminated oxidized copper ores or mixed ores, such as malachite, cuprite, and azurite. It can also be used for the pre-enrichment of mixed sulfide and oxidized deposits, avoiding reagent waste and fluctuations in beneficiation indicators caused by direct flotation. It is particularly suitable for small to medium-sized mines or copper mining projects with limited resources. Furthermore, it allows for tailings recovery. If the tailings after flotation still contain a certain amount of fine-grained copper minerals, centrifugal concentrators can be used to further separate the tailings and recover the copper minerals.
- Gravity separation equipment requires low investment and produces no reagent pollution, significantly reducing operating and environmental costs. For projects with low investment budgets and high environmental requirements, gravity separation is an excellent choice for achieving economical production.
- It is typically used as a pretreatment before flotation, removing 30%–50% of waste rock in advance, reducing subsequent processing volume and optimizing overall beneficiation economics.

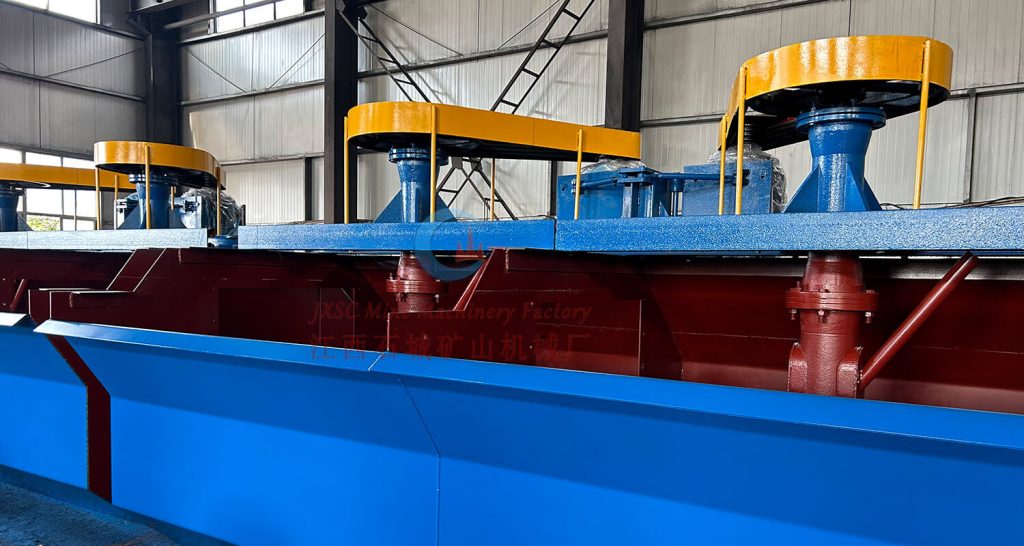

Technology 2: Copper Flotation
– The Core Process for Efficient Recovery of Copper Sulfide Ore
Principle:
Flotation technology is the core separation process in copper concentration plants. Its principle is based on the differences in the physicochemical properties of mineral surfaces. By adding reagents to alter the wettability of the mineral surface, copper minerals adhere to air bubbles and float, thus separating from gangue.
Key Reagents:
Collectors (such as xanthates and black reagents) selectively adsorb onto the surface of copper minerals, making them hydrophobic. Frothers (such as pine oil) generate a large number of stable air bubbles in the slurry. The hydrophobic copper mineral particles adhere to the air bubbles, forming a foam layer, which is eventually scraped off as concentrate. Gangue minerals, due to their hydrophilic surface, cannot adhere to the air bubbles and remain in the slurry as tailings.
Regarding modifiers, lime remains the most cost-effective choice, not only inhibiting pyrite but also reducing the activation of heavy metal ions in the slurry. The key to copper flotation technology lies in optimizing the reagent regime. By rationally combining collectors, modifiers, and frothers, the recovery rate of copper minerals and the grade of concentrate can be significantly improved.
Application Scenarios and Advantages:
The most prominent advantage of flotation technology is its precise material separation capability. It is mainly suitable for the comprehensive recovery of complex polymetallic ores, such as the separation of copper from lead and zinc, and the sulfide flotation of refractory oxide ores. It can also be used for the reprocessing of low-grade tailings.
- It can handle ores of different particle sizes from coarse (0.5 mm) to fine (0.01 mm), applicable to both dense, massive, and disseminated ores.
- Through precise control of the reagent regime, efficient separation of copper minerals from gangue and other sulfide minerals can be achieved. Compared to gravity separation and magnetic separation, flotation achieves metal recovery rates of up to 90%+.
Technology 3: Copper Heap Leaching
– Value Extraction of Low-Grade/Oxidized Copper Ore Resources
Principle:
Heap leaching technology involves crushing low-grade ore and constructing a heap. A leaching agent (such as sulfuric acid solution) is evenly sprayed onto the surface of the heap using a spray system. Under gravity, the leaching agent permeates the heap and reacts chemically with the copper minerals in the ore, dissolving copper ions into the solution (i.e., the “leaching solution”). The leachate is collected through a collection system at the bottom of the heap and then extracted using solvent extraction (SX) and electrowinning (EW) processes.
Applications and Advantages:
Copper leaching technology is primarily suitable for processing oxidized copper ores with a grade below 0.5% or mixed ores with a high oxidation rate. It mainly combines heap leaching + solvent extraction + electrowinning processes to achieve copper recovery rates of over 95%.
- This is primarily because heap leaching does not require complex equipment such as grinding and flotation systems; only a heap site and a leachate recovery system are needed. On the one hand, it eliminates the energy consumption of grinding; on the other hand, the amount of leaching agent used is far lower than that of flotation reagents, reducing operating costs by 40%.
- Leaching technology can reduce tailings emissions. The tailings from heap leaching are dry slag that can be directly used for filling mined-out areas or for covering with soil for greening, meeting the environmental protection requirements of green copper concentration plants.
Technology 4: Copper Tailings Treatment
–Value-Added Path for Environmental Protection and Resource Utilization
- Tailings Re-concentration: A combined process that primarily uses gravity separation equipment to pre-enrich coarse copper minerals in tailings, followed by flotation to recover fine copper minerals.
- Dry Tailings Disposal: Traditional wet tailings disposal requires the construction of large tailings ponds, while dry tailings are dewatered to a moisture content of 15%-20% using a filter press and can be directly stockpiled or transported off-site.
For copper tailings of different particle sizes and mineral types, tailings treatment technologies encompass combined processes such as magnetic separation, flotation, and gravity separation, representing the core technological direction for post-beneficiation resource utilization.

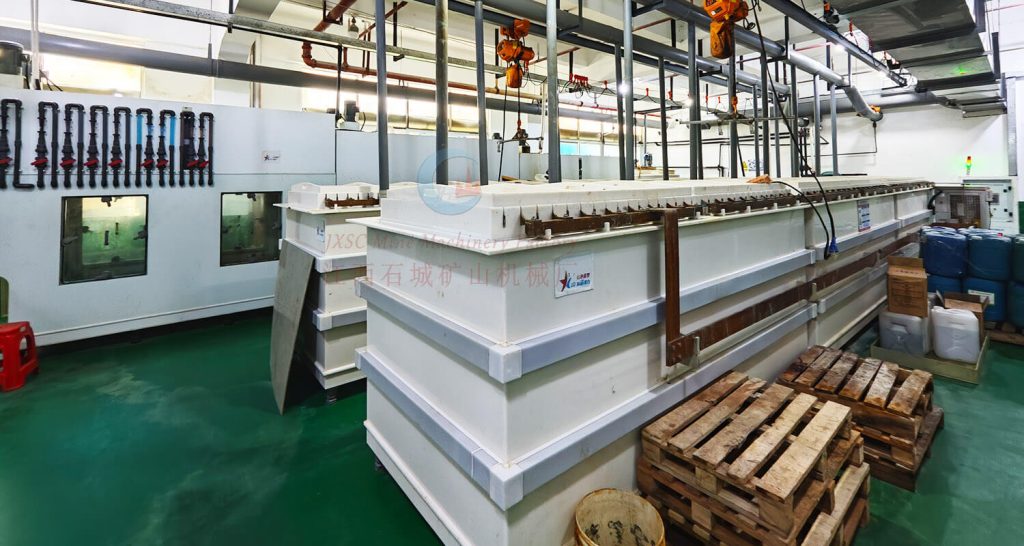

Technology 5: Copper Electrolysis
– The Ultimate Guarantee of Cathode Copper Quality
Principle:
Copper electrolytic refining uses crude copper as the anode and pure copper as the cathode. Electricity is passed through a copper sulfate electrolyte. The crude copper at the anode dissolves into copper ions, which migrate to the cathode and deposit as pure copper. Impurities are deposited in the anode sludge or electrolyte. This process can purify crude copper to 99.99% cathode copper, meeting the high-quality requirements for industrial copper.
Applications and Advantages:
The copper electrolysis process eliminates the smelting stage, reducing investment costs by 50%, and achieving a purity of 99.99%. It is particularly suitable for developing low-grade mines in remote areas (eliminating the need for smelting plants). The electrolyte often contains associated metals such as iron, cobalt, and nickel, which can be separated and recovered through solvent extraction or ion exchange. The finished product is high-purity cathode copper, enjoying a quality premium in the market. The added value is 5 times higher than ordinary copper products, significantly improving the economic benefits of copper concentration projects.
Conclusion
Whether it’s the difficult-to-process low-grade oxide ore, the highly muddy sulfide ore, or the challenges of tailings resource utilization, each challenge has a corresponding technological breakthrough. JXSC offers 5 globally proven copper concentration optimization technologies, ranging from low-cost gravity separation pre-enrichment to intelligent flotation control, from heap leaching efficiency enhancement to tailings waste-to-resource transformation, and electrolytic extraction technology to ensure the efficient production of 99.99% high-purity cathode copper. Each technology provides a practical solution for optimizing the profitability of copper processing plants. How to efficiently develop copper mines while also being environmentally conscious? Contact our team of experts to help you optimize equipment, processes, reduce costs, and improve sustainability.
