12TPH Lead Zinc Copper Ore Process Plant in Morocco
We guarantee the high quality machine in the mineral processing industry, established in 40+ years of experience!
Project info.
minerals
lead zinc oxide, copper oxide
capacity
12TPH in Morocco
feed size
400mm
Customer's request
Same one processing line to separate these different minerals
process flow

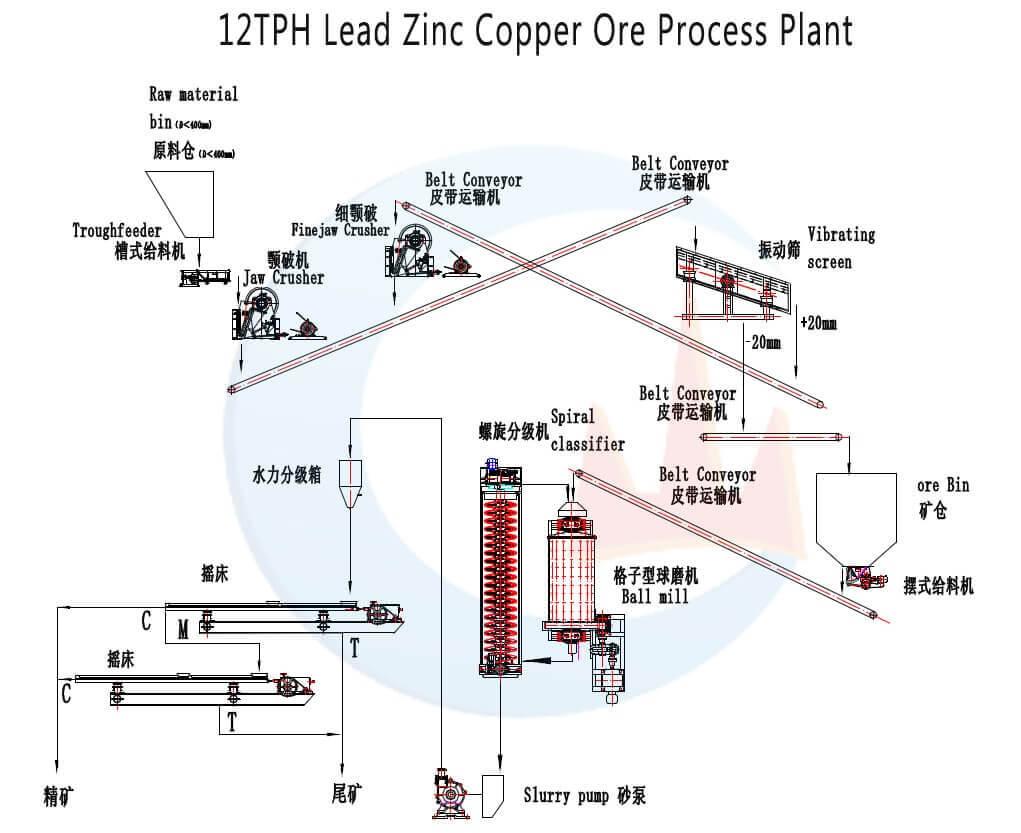

12TPH Lead Zinc Copper Ore Process Plant
1. Crushing & Screening stage: jaw crusher, fine jaw crusher, vibrating screen
The raw materials are sent to the jaw crusher by the trough feeder for crushing. The crushed materials are conveyed by the belt conveyor to the vibrating screen for screening. The stone that meets the particle size is sent to the fine jaw crusher for secondary crushing.
2. Grinding stage: ball mill, spiral classifier
The copper ore material crushed by the crushing section enters the ball mill for grinding and pulverization, and the classifier can classify and screen the copper ore to release the required ore powder.
3. Gravity separation: shaking tables
Then, the middling of 1st stage shaking table will go to 2nd stage shaking table to concentrate again, it will get higher copper concentrate ore from the two shaking tables.
Features Of JXSC 12TPH Lead Zinc Copper Ore Process Plant
- Strong compatibility with multiple mineral types: It can complete the separation of copper, lead, and zinc oxide ores on a single production line without the need for additional branch processes, adapting to complex polymetallic ore processing needs.
- Stable and reliable process operation: Utilizing a mature and standardized process of “crushing and screening – grinding and classification – two-stage shaking table gravity separation,” the core equipment has been thoroughly market-proven, resulting in low maintenance difficulty and a low failure rate.
- Controllable investment costs: The core equipment selection is economical and practical, and auxiliary facilities such as belt conveyors support localized production, effectively reducing initial project construction investment.
- Precise capacity matching: The 12t/h processing capacity perfectly matches the capacity needs of small and medium-sized mines. The two-stage gravity separation process ensures concentrate recovery rate and grade, resulting in a short investment payback period.
The successful completion of this Morocco project validates the feasibility of a 12-ton/hour-scale (polymetallic ore) lead-zinc-copper process plant solution. JXSC can provide fully customized lead-zinc–copper beneficiation plant process flow design, core equipment selection and matching, installation and commissioning guidance, and other full-process services based on the ore composition, site conditions, capacity requirements, and investment budget of different projects. We can adjust the solution to meet the various complex polymetallic ore sorting needs. Please contact us for a customized configuration quote.
Main equipment
| Equipment name | Model | Power(kw) | Qty |
| Chute feeder | 600*500 | 4 | 1 |
| Jaw crusher | PE500*750 | 55 | 1 |
| Fine jaw crusher | PE250*100 | 30 | 1 |
| Belt conveyor | 650*20m | 7.5 | 4 |
| Vibrating screen | 1230 | 7.5 | 1 |
| Swing feeder | 400*400 | 1.1 | 1 |
| Ball mill | 2136 | 210 | 1 |
| Spiral classifier | 1500 | 11 | 1 |
| Classifier tank | / | / | 12 |
| Slurry pump | 3/2 | 7.5 | 3 |
Notes: in order to reduce the investment in the early stage of equipment, belt conveyors and hopper are made locally according to the site conditions.
