Mineral Processing

350TPH Iron Sand Washing Plant in Mexico

We guarantee the high quality machine in the mineral processing industry, established in 35 years of experience

minerals

iron sand

capacity

350TPH
in Mexico

feed size

0-5mm

Customer's request

improve grade, and recover the iron as much as possible

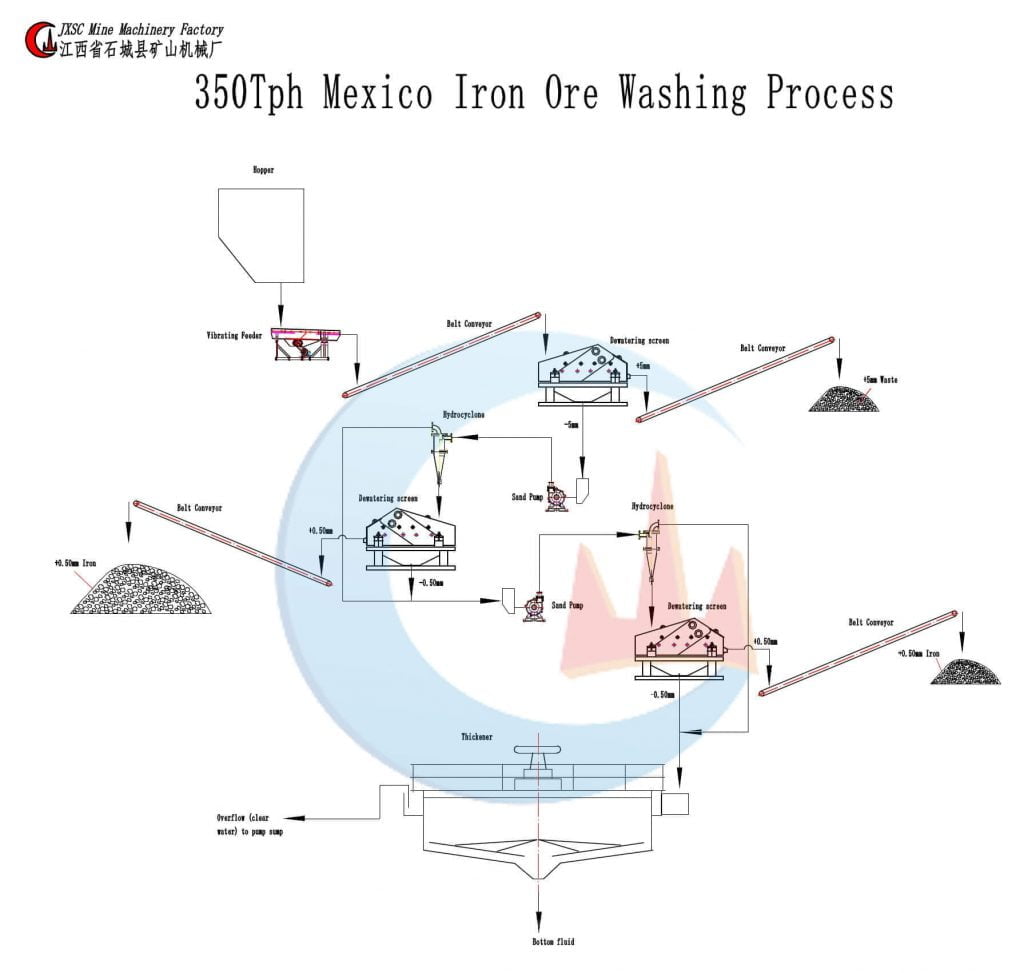

process flow

1. Feeding & Screening: vibrating feeder, high-frequency screen

The material is transported to the high-frequency screen by the vibrating feeder and the belt conveyor, and the material is screened.

2. Washing & Dewatering: hydrocyclone, dewatering screen

+5mm material is transported to one side by belt conveyor as scrap. -5mm material is sent to the hydrocyclone by slurry pump, which is used to separate and remove the heavier coarse-grained mud sand and other substances in the sewage, and overflow into the dewatering screen for dewatering.

2. Tailings dewatering: dewatering screen, thickener

The material larger than 0.5MM is transported to the side with a belt conveyor to obtain iron ore. The 0-0.5mm material is pumped to the hydrocyclone with a sand pump, and the underflow of the cyclone is pumped to the dewatering screen with a sand pump to obtain iron ore. Then the overflow water enters the thickener to recover the tailings water.

Iron ore Processing Plant Solutions & Flow Design

Main Equipment

vibrating feeder
Vibrating feeder
dewatering screen
Dewatering screen
JXSC thickener for gold cil processing
Thickener
hydrocylone
hydrocylone
