portable trommel screen
Capacity: 1-200TPH
Feeding size: ≤80-100mm
Feeding density: 0-50%
Application: Sand and gravel aggregate and ore classifying, screening, washing, processing; gold, copper, silica sand, manganese ore, iron ore, quartz sand, barite, beach sand, chromium, tantalum-niobium-tin, zircon sand and other ore with low mud content.

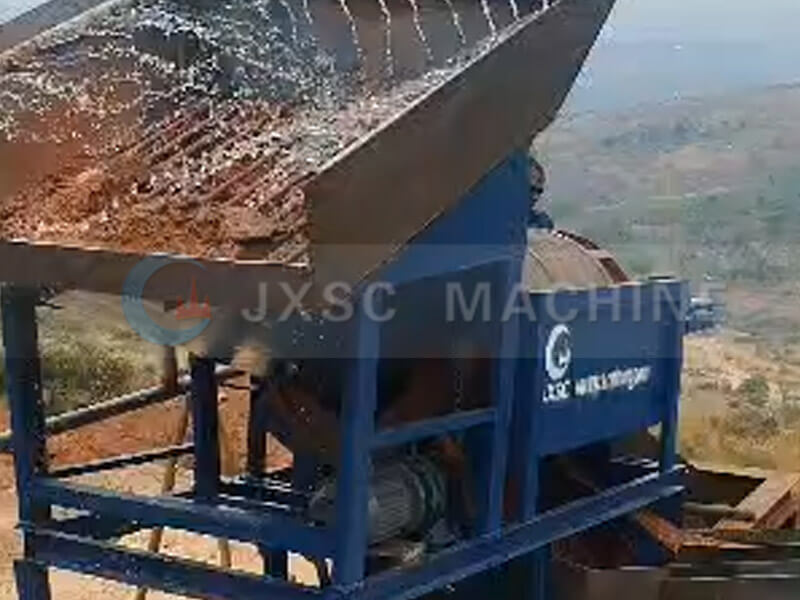

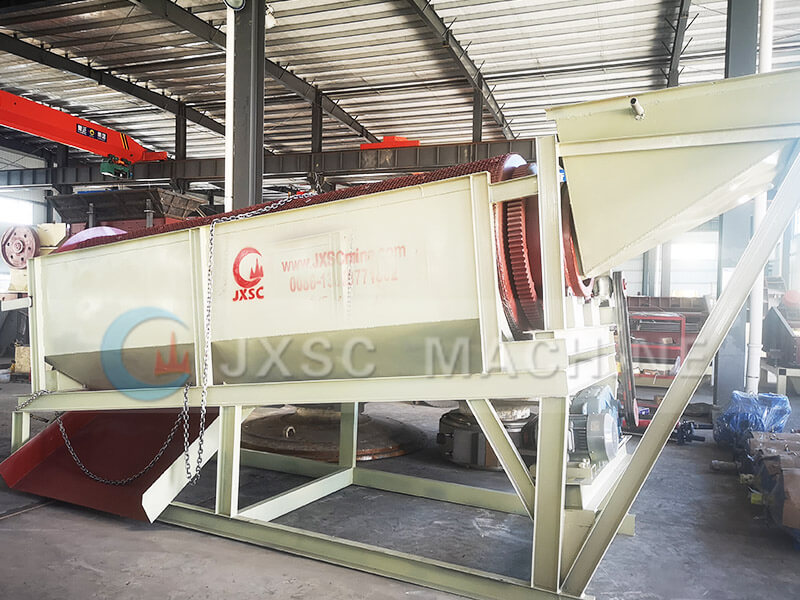

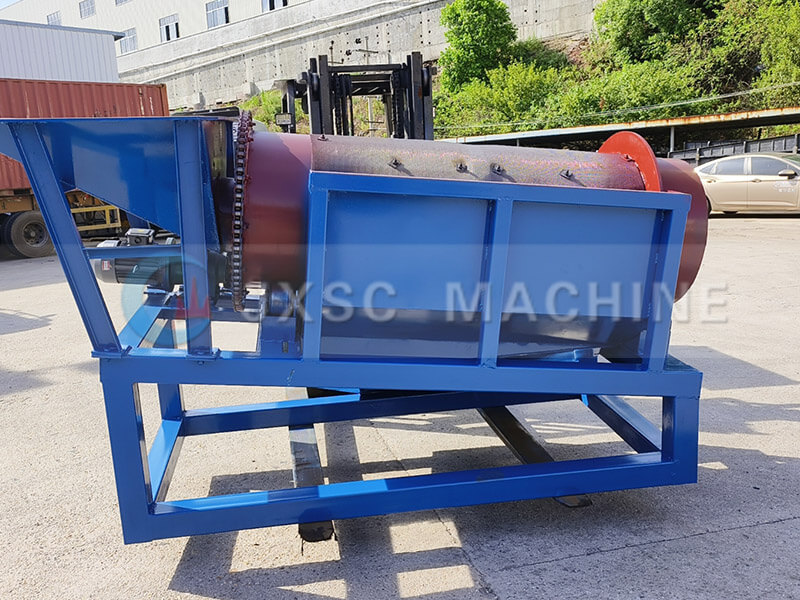

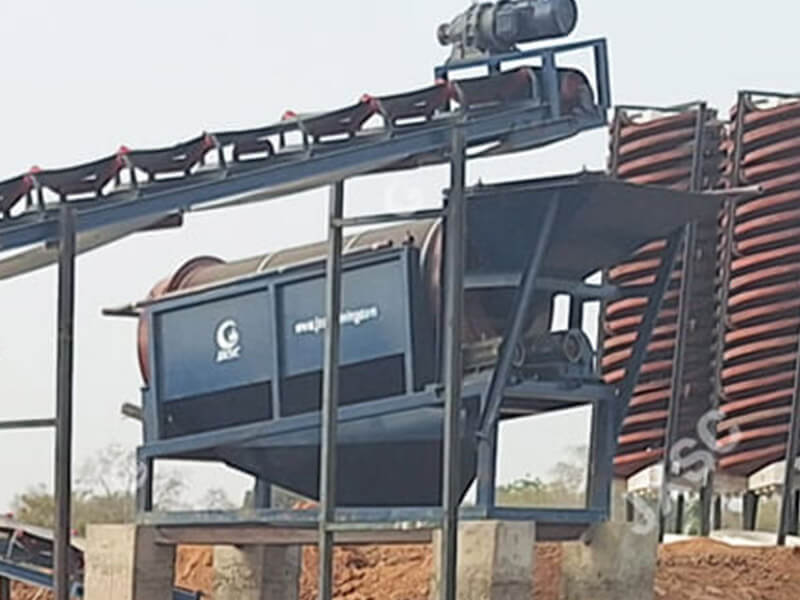

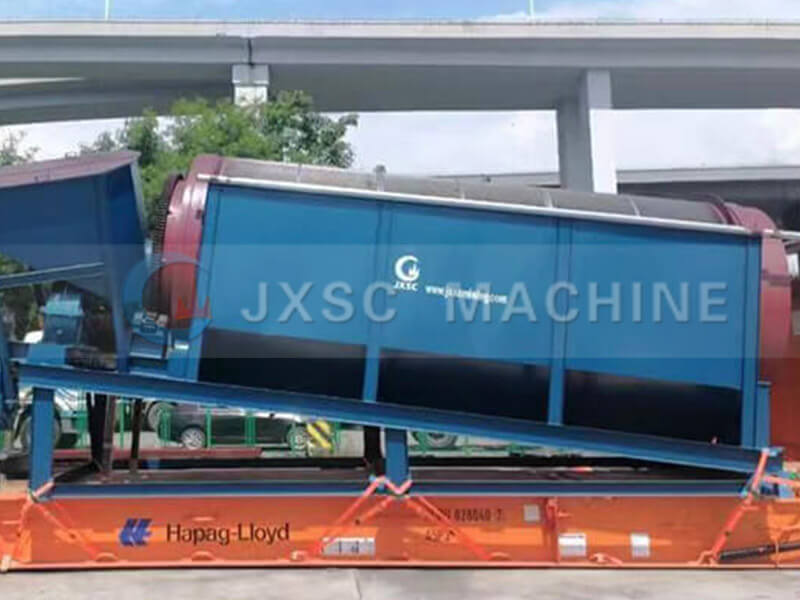

Products display
Introduction of trommel screen
JXSC support customized fixed and mobile/portable trommel screen. The trommel screen can washing and screening material from 55 mm down to 6 mm, and even smaller sizes can be handled under wet screening conditions.

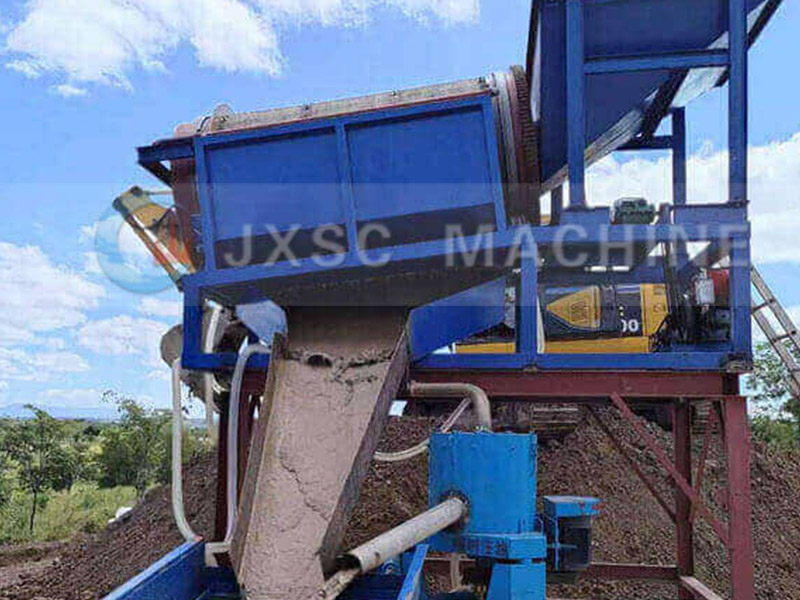

Trommels remain widely used in some screening operation, including aggregate screening plants and the screening of mill discharge streams. They are also used for wet-scrubbing ores, such as Bauxite, alluvial gold, diamond ores and etc. Usually combined with a gold sluice box to form a one-stop gold wash plant.
Working principle Of portable trommel screen
Trommels are installed on a small angle to the horizontal or use a series of internal baffles to transport material along with the cylinder.
When the feeding material enters the roller trommel, due to the tilt and rotation of the trommel, the material on the screen surface is turned and rolled, so that the qualified material (under-screen product) is discharged through the outlet at the bottom of the rear end of the roller, and the unqualified material (upper-screen product) is discharged through the discharge port at the rear of the trommel.
why choose JXSC trommel screen
features & Advantages Of Trommel screen
1. The screening efficiency is high, the screen holes are not easily blocked, and the operation is smooth.
2. Simple structure and easy maintenance.
3. The portable trommel screen using special screens, high screening efficiency and longer service life can be achieved.
4. During the operation of the equipment, the noise generated by the materials and the rotating screen is completely isolated by the sealed dust cover, which eliminates the flying dust during the screening process and provides an excellent operating environment;
5. The noise cannot be transmitted to the outside of the equipment, thereby reducing the equipment noise.
models & specifications
Model | Screen Size(mm) | Feeding Size(mm) | Drum Dia (mm) | Drum length (mm) | Process Capacity(t/h) |
|
GT0513 | ≤20 | ≤80 | 500 | 1300 | 1-5 | 3 |
GT0813 | ≤20 | ≤80 | 800 | 1300 | 5-10 | 4 |
GT1015 | ≤20 | ≤80 | 1000 | 1500 | 10-15 | 5 |
GT1020 | ≤25 | ≤80 | 1000 | 2000 | 15-20 | 5.5 |
GT1225 | ≤25 | ≤100 | 1200 | 2500 | 20-50 | 7.5 |
GT1530 | ≤25 | ≤100 | 1500 | 3000 | 40-70 | 11 |
GT1545 | ≤25 | ≤100 | 1500 | 4500 | 70-100 | 15 |
GT1848 | ≤50 | ≤100 | 1800 | 4800 | 100-150 | 22 |
GT2055 | ≤50 | ≤100 | 2000 | 5500 | 150-200 | 30 |
Structure of portable trommel screen
The drum body of the drum screen is generally divided into several sections, depending on the specific situation, the screen holes are arranged from small to large, and the screen hole diameter on each section is the same.
In order to improve the sorting accuracy and avoid the situation where small particles are screened out in the large-aperture screen section, the feeding materials must be fully turned in the trommel screen, and the movement speed of those materials cannot be too fast.

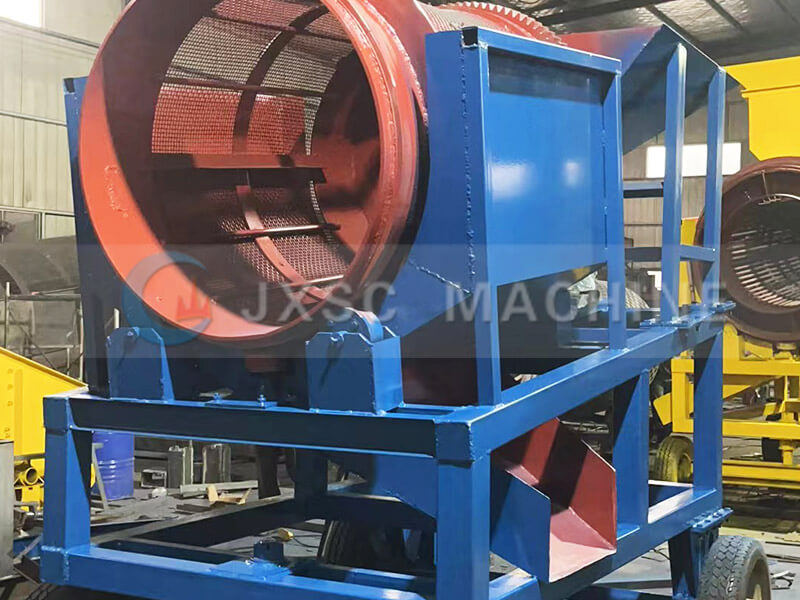

Generally, the inner wall of the trommel is equipped with a flex plate. Its role is to raise the feeding particles so that particles with different sizes get as many opportunities as possible to contact the sieve hole.
If the hole diameter meets the requirements, the particles can pass through the sieve and get sorted.
Also, the trommel screen generally has a relatively strict installation angle, usually, this angle is 5°. Of course, under actual circumstances, it can be adjusted as needed.
