Which beneficiation processes should be applied to sulfide, oxide, and mixed copper ores, respectively, to simultaneously boost recovery rates and keep processing costs in check?
As the “King of Metals” in modern industry, copper finds ubiquitous application—ranging from power transmission to new-energy batteries—yet the efficiency of its extraction depends heavily on the specific type of ore. Sulfide ores are rich in copper sulfides (such as chalcopyrite), oxide ores are dominated by oxides (such as malachite), while mixed ores fall somewhere between the two. These inherent differences among the three ore types directly dictate the choice of beneficiation method—whether flotation, acid leaching, or a combined process—which, in turn, impacts both recovery rates and operational costs. This article will unveil the core logic behind the beneficiation of these three copper ore types, empowering industry practitioners to precisely match processes to specific ores and thereby maximize resource value.
For the three types of copper ore beneficiation requirements, the flotation + pre-separation and waste disposal process is preferred for sulfide ores. For oxide ores, either sulfide flotation or acid leaching and electrowinning may be selected, depending on the ore grade. For mixed ores, a combined flowsheet is recommended, involving the initial flotation of the sulfide phase followed by the processing of the oxide phase.
Basic Characteristics and Beneficiation Differences of 3 Types of Copper Ores
(1) Sulfide Copper Ores:
These ores consist primarily of sulfides such as chalcopyrite and bornite. Their defining characteristic is the strong chemical bond between copper and sulfur, which imparts a natural hydrophobicity to the ore. They are highly responsive to conventional flotation reagents; consequently, the flotation processing technology is well-established, and recovery rates typically exceed 90%.
(2) Oxide Copper Ores:
Common ore types include vividly colored minerals such as malachite and azurite. Oxide copper ores are predominantly found in the oxidized zones of shallow mineral belts near the earth’s surface, representing the products of the long-term weathering and oxidation of sulfide ores. While their surfaces exhibit strong hydrophilicity, conventional flotation reagents struggle to adhere effectively to the mineral surfaces to achieve collection; furthermore, these ores are prone to “sliming” issues. Consequently, they represent the most challenging category among the three types of copper ores to process via beneficiation. Ores with an oxidation rate exceeding 30% typically require reliance on leaching processes, wherein copper ions are dissolved using solvents—such as sulfuric acid—and subsequently recovered through electrowinning.
(3) Mixed Copper Ores:
Mixed copper ores possess an oxidation rate intermediate between that of sulfide ores and oxide ores, with the proportion of oxide copper typically falling within the range of 10% to 30%. Given the significant differences in beneficiation requirements between these two mineral types, neither flotation nor leaching alone can achieve efficient copper recovery. The common solution involves a combined flotation-leaching process: the sulfide copper is first recovered via flotation, followed by the acid leaching of the oxide copper.
Sulfide Copper Ore Beneficiation
The sulfide copper ore beneficiation is supported by a highly mature technical framework, allowing for the flexible selection of tailored processing schemes based on specific ore grades and associated mineral characteristics.
- For medium-to-high-grade sulfide copper ores, conventional copper flotation is the most widely adopted processing method. Following crushing, the ore undergoes grinding to ensure the complete liberation of copper minerals from the gangue. Subsequently, xanthate-based collectors and frothers are introduced to facilitate the flotation process. The resulting copper concentrate is then subjected to thickening and filtration (dewatering) before being transferred to the smelting stage. This workflow is simple, easy to operate, and well-suited to meet the production requirements of most small-to-medium-sized mines.
- For low-grade sulfide copper ores, a combined strategy involving pre-concentration (waste rejection) followed by staged grinding and flotation is often employed. After coarse crushing, gravity separation equipment—such as spiral chutes or shaking tables—is utilized to preliminarily remove a significant volume of copper-free waste rock, thereby reducing energy consumption and processing costs in the subsequent grinding stage.
- In cases involving polymetallic sulfide copper ores—where copper is associated with other metals such as lead-zinc, or molybdenum—a multi-stage flotation process is applied. This method leverages the varying floatability of different minerals to sequentially separate and recover distinct metal concentrates, thereby ensuring the comprehensive recovery of valuable resources.
Oxide Copper Ore Beneficiation
The core challenge in beneficiating oxidized copper ores lies in overcoming their inherent hydrophilicity and the associated difficulties in processing.
- For medium-to-high-grade oxidized copper ores, the sulfidization-flotation method is a viable option. This process begins by adding a sulfidizing agent to the ore slurry—following grinding—to pretreat the surfaces of the oxidized copper minerals, thereby creating a hydrophobic film akin to that found on sulfide minerals. Subsequently, the flotation process is completed simply by adding standard flotation collectors.
- For low-grade oxidized copper ores—particularly those characterized by extremely fine mineral dissemination and high clay content, which are notoriously difficult to process—the leaching-solvent extraction-electrowinning (L-SX-EW) process is the preferred choice. This method involves dissolving the copper from the ore slurry into a solution using either acidic or ammoniacal solvents; the copper is then enriched through solvent extraction and subsequently recovered via electrowinning to directly produce high-purity cathode copper. Although the initial capital investment for this process is somewhat higher, the overall recovery rate significantly exceeds that of flotation, resulting in superior long-term economic benefits.
Mixed Copper Ore Beneficiation
Mixed copper ores contain both sulfide and oxide copper minerals; the core principle of their beneficiation process lies in staged processing, which requires simultaneously optimizing the recovery efficiency of both types of minerals.

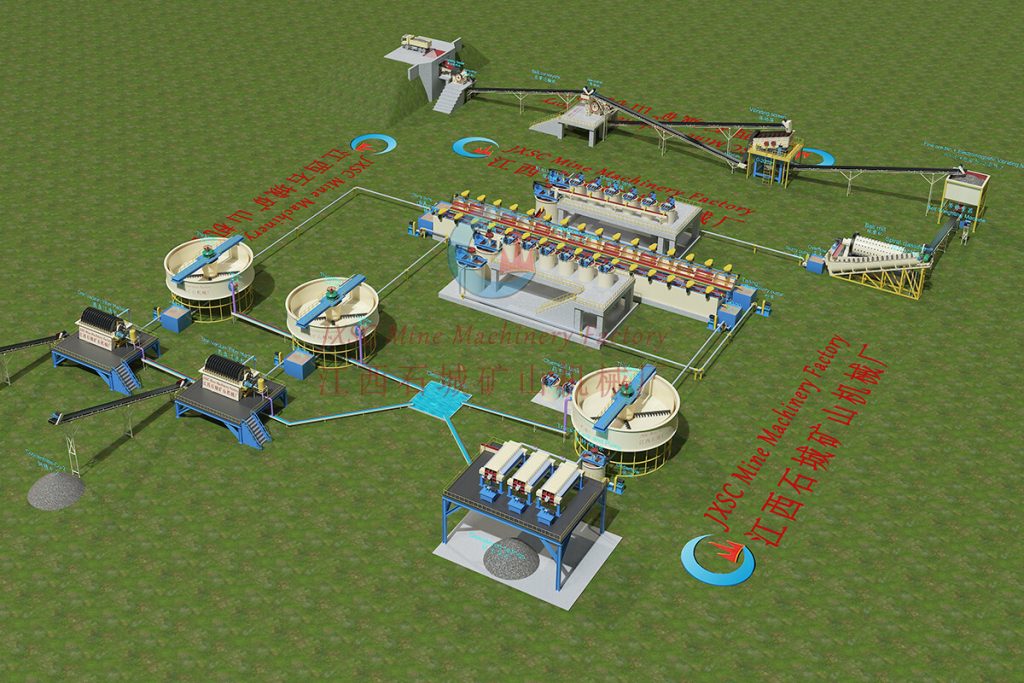

Typically, the mixed copper ore beneficiation process uses a combined flowsheet: “first float the sulfide minerals, then leach the oxide minerals.” In practice, the flotation stage requires suppressing the flotation of oxide copper (to avoid wasting sulfidizing reagents) while simultaneously ensuring that the residual sulfide copper remaining in the tailings is minimized. Subsequently, the flotation tailings undergo sulfidizing pretreatment or leaching to recover the oxide copper minerals contained therein.

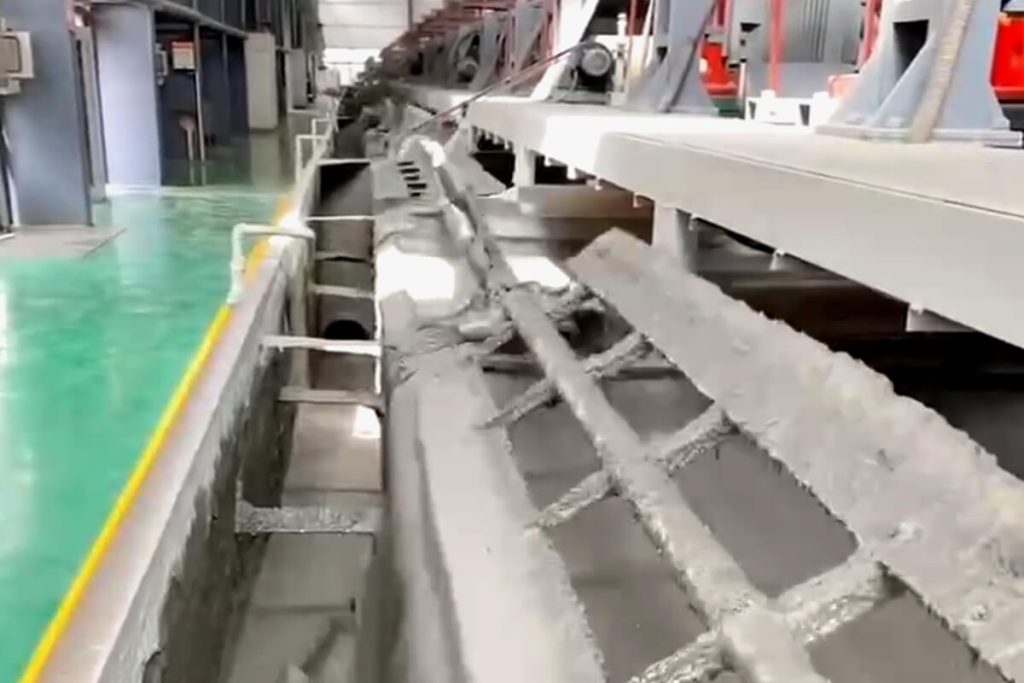

Common Beneficiation Equipment For Three Types of Copper Ores
Conclusion
Sulfide, oxide, and mixed copper ores require the application of corresponding beneficiation processes—such as flotation, leaching-extraction, and others—to maximize recovery rates and economic returns. The specific selection of a copper ore beneficiation process necessitates a comprehensive assessment of various factors, including ore characteristics, capital investment, operating costs, and metal recovery rates.
