Do you know how chromite is transformed from raw ore into a high-value industrial raw material? Chromite, this seemingly ordinary mineral, is an indispensable strategic resource in modern industrial systems. Whether it’s the corrosion resistance of stainless steel, the high-temperature strength of special alloys, or its role as a crucial raw material in the chemical industry, chromium’s unique contribution is indispensable. However, chromite in nature is not directly usable; it must undergo systematic processing and purification to truly realize its commercial value. This article will guide you through the processing of chromite from raw ore to concentrate, focusing on ore characteristics, objectives, processes, and key equipment to unlock the industrial value of chromite.
The chromite processing flow includes four core stages: raw ore pretreatment, crushing and grinding, separation and purification, and concentrate treatment. For different types of chromite, the core equipment includes jaw crushers, ball mills, gravity separators, and magnetic separators.
Basic Characteristics & Processing objective of Chromite
Basic Characteristics
Chromite‘s chemical composition is FeCr₂O₄. Actual ore often contains isomorphous impurities such as magnesium, aluminum, and manganese. It is black or brownish-black with a brown streak. It has a high Mohs hardness (5.5-6.5), a relatively high density (4.3-4.8 g/cm³), and exhibits weak magnetic properties.
The core objective of chromite processing
1. To increase the Cr₂O₃ grade in the raw ore from 10%-30% to over 45% through gravity separation and magnetic separation, meeting the grade requirements of different downstream applications such as metallurgical and chemical grades.
2. To reduce the loss of Cr₂O₃ in tailings, typically requiring multi-stage separation to improve the overall recovery rate to over 90%.
3. To remove impurities such as silicon, phosphorus, and sulfur, deep purification can be achieved using flotation or acid leaching processes.
The core objective of chromite processing is to obtain high-grade, low-impurity chromium concentrate to meet metallurgical or chemical grade requirements. In actual production, by rationally combining processes such as gravity separation, magnetic separation, and flotation, the advantages of each process can be fully utilized to achieve more efficient resource utilization.

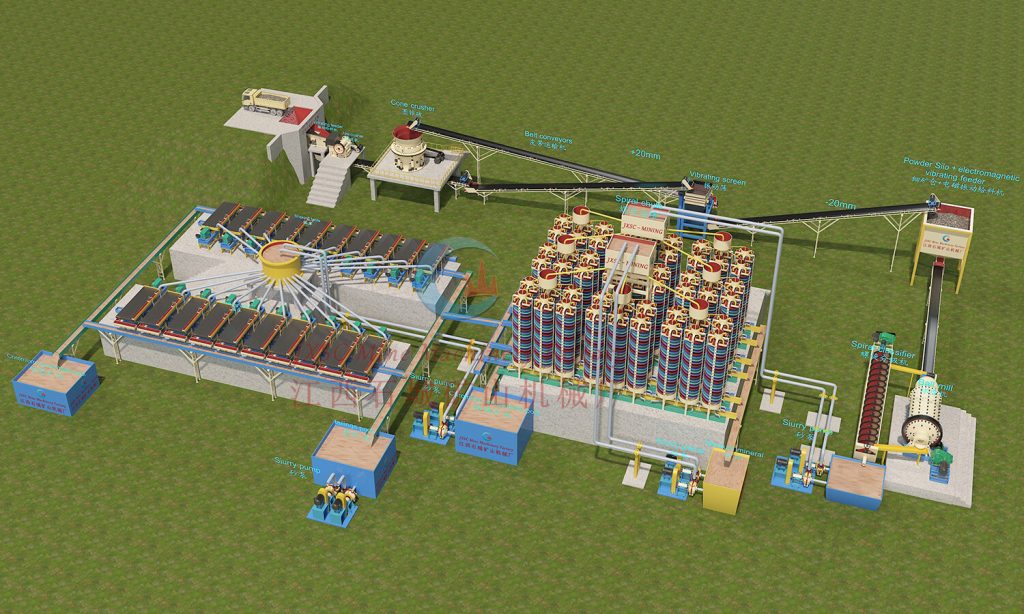

Complete Chromite Processing Flow Details
1. Pretreatment
Newly mined chromite ore often contains impurities such as waste rock and mud, making pretreatment crucial.
- Screening: Vibrating screens or drum screens are used to remove large gangue and surface slag. Customized screen meshes and apertures are available.
- Washing: For alluvial or lateritic chromite ore with high mud content and viscosity, drum washers or trough washers are used to remove impurities. This prevents clogging of subsequent crushing equipment. (Note: For primary chromite ore with a homogeneous texture and extremely low mud content, the washing step can be omitted.)
- Crushing: Chromite ore has a high hardness (Mohs hardness 5.5-6.5). After pretreatment, it can enter a two- or three-stage crushing system to provide ideal liberation for separation.
2. Grinding and Classification
The grinding stage uses ball mills or rod mills, combined with classification equipment to form a closed-loop system. This ensures sufficient liberation of chromite from gangue, achieving a final particle size of less than 0.074 mm (200 mesh). The specific grinding fineness needs to be adjusted according to the disseminated chromite particle size. Coarse-grained disseminated ores do not require excessive grinding, while fine-grained disseminated ores require increased grinding fineness to ensure sufficient liberation.
3. Separation Stages
Gravity Separation (Preferred): Low cost and environmentally friendly, suitable for coarse-grained disseminated ores (such as massive chromite). Gravity separation is often used as a roughing step to remove most of the gangue quickly.
Magnetic Separation (Auxiliary): Recovers fine-grained chromite and removes strongly magnetic impurities such as magnetite. Magnetic separation is mainly suitable for processing medium-grade concentrate after roughing to improve the Cr₂O₃ grade further.
Flotation: Commonly uses anionic collectors (such as sodium oleate), and requires the use of depressants (such as starch) to reduce gangue flotation. Flotation is suitable for processing fine-grained disseminated, high-silica, or complex associated chromite ores.
4. Concentrate Processing and Tailings Disposal
Concentrate dewatering typically involves a two-stage process: a thickener and a filter, reducing the moisture content to 8%-12%. For refractory materials, further drying to <2% moisture is required. Tailings are then discharged dry through dewatering and filtration, allowing for the recycling of clean water and reducing wastewater pollution.
4 Key Equipment For Chromite Processing
(1) Chromite Crusher
Chromite crushers need to balance high efficiency and wear resistance. For the coarse crushing stage, PE series jaw crushers are recommended, suitable for feed sizes below 1200mm. For medium and fine crushing with large throughput, cone crushers are preferable, utilizing the principle of layered crushing to reduce over-crushing. For high-hardness ores, hydraulic protection devices can be used to prevent iron blocks from damaging the equipment. Alternatively, PEX series jaw crushers or hammer crushers can be selected to reduce costs.
(2) Chromite Ball Mill
Overflow ball mills are suitable for fine grinding (over 80% of -200 mesh), while grate ball mills are better suited for coarse grinding and save 15%-20% on energy. High-chromium alloy steel balls or ceramic liners are recommended to reduce iron contamination.
(3) Chromite Gravity Separator

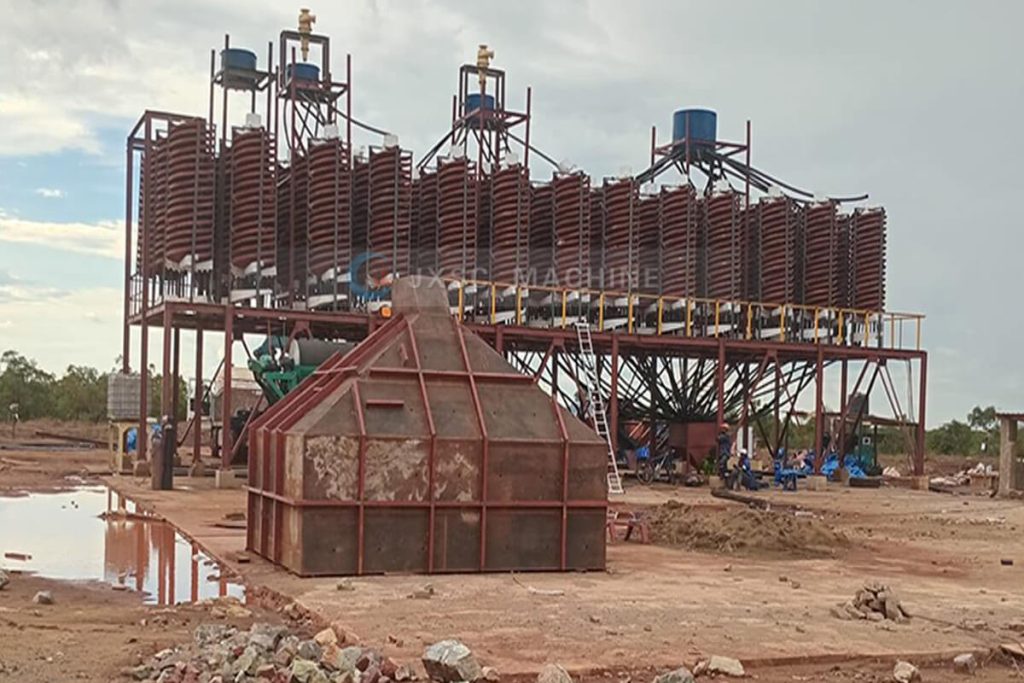

For coarse-grained chromite, spiral chutes are commonly used as gravity separators. They offer high throughput, low operating costs, and can quickly remove over 70% of gangue during the roughing stage, significantly improving the processing efficiency of subsequent processes. Shaking tables are used for finer chromite particles, effectively recovering them. Both are typically used in combination to improve overall recovery and reduce the loss of valuable minerals.
(4) Chromite Magnetic Separator
Chromite is a weakly magnetic mineral, so strong magnetic separators are often used for separation to improve the concentrate grade to downstream standards. Depending on the ore particle size, dry or wet magnetic separators can be used. Dry magnetic separators are suitable for removing coarse waste in the pretreatment stage, while wet magnetic separators are suitable for fine particle separation after grinding.
Conclusion
The chromite processing flow requires selecting appropriate technologies and equipment based on ore type, distribution characteristics, and economic costs. From raw ore pretreatment and multi-stage crushing and grinding to separation and purification, each step directly affects the final concentrate quality and recovery rate. Need customized chromite beneficiation solutions or equipment configurations? Contact JXSC to help you avoid pitfalls, reduce start-up costs, and achieve a dual increase in capacity and profitability.
