3TPH Hard Rock Gold Mining Plant In Tanzania

We guarantee the high quality machine in the mineral processing industry, established in 35 years of experience

minerals

  1. Raw ore: Rock gold
  2. Capacity: 3TPH
  3. Project location: Tanzania
  4. Input size: 0-210mm
  5. Output size :0-0.5mm

Main Equipment

  • Chute feeder
  • Jaw crusher
  • Double roll crusher
  • Wet pan mill
  • Shaking table

process flow

Customer’s requirement: The client has a limited budget and requires an affordable solution

  1. Crushing plant capacity: 5-10TPH
  2. Grinding plant capacity: 3TPH
  3. Beneficiation plant capacity: 3TPH
  4. Rock needs are milled to 0.5mm below for releasing the gold.

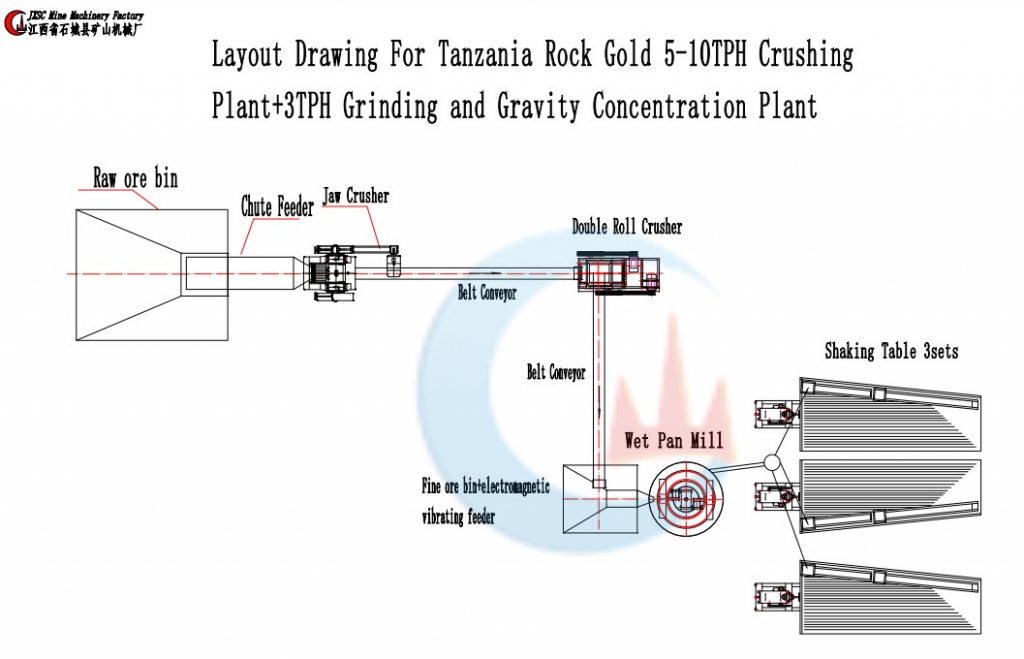

3TPH Hard Rock Gold Mining Plant flow details:

1. Feeding & Crushing: Chute feeder

Excavator or loader feed raw ore into raw ore bin. The chute feeder is installed under the raw material bin, which is convenient for feeding raw materials to the jaw crusher.

2. Crushing stage: Jaw crusher, double roll crusher

Here jaw crusher crush 0-210mm big stone to 0-50mm small stone. Output of jaw crusher feed to double roll crusher via belt conveyor. The double roll crusher crush 0-50mm small stone to 0-5mm fine size, then feed to fine ore bin via belt conveyor.

3. Grinding stage: Wet pan mill

Install electromagnetic vibrating feeder under the fine ore bin in order to evenly feed wet pan mill. Wet pan mill grind fine ore to powder size 0.5mm below for releasing gold.

4. Gravity separation: Shaking tables

The output of wet pan mill 0-0.5mm powder materials go to shaking table for recovering fine gold. (shaking table is gravity separator, it’s highly efficient working on separating gold from crushed ore.)

process site

Rock Gold Processing Plant Solutions & Flow Design

Equipment List

Product Name

Model No.

Chute feeder

600*500

Jaw crusher

PE250*400

Double roll crusher

2PG610*400

Electromagnetic vibrating feeder

GZ1

Belt conveyor

500*12000mm

Wet pan mill

1600 model

Shaking tables

3sets 200*200

Jaw Crusher
Jaw crusher

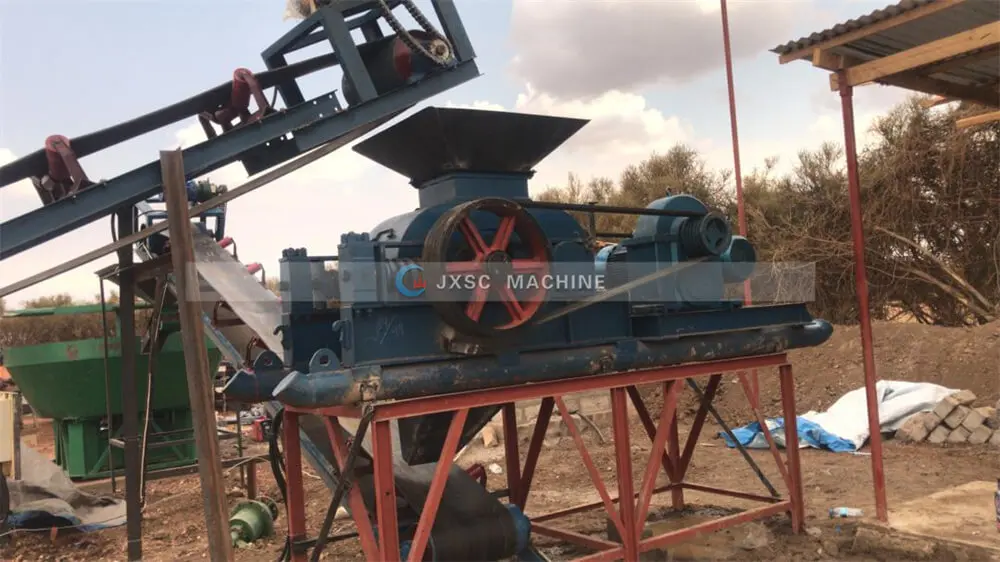

double roller crusher
Double roller crusher
Wet pan mill
Wet pan mill
gold shaking table
Gold shaking table
