Gold Melting Equipment
Gold Melting Equipment Solution
Gold melting equipment is a type of industrial equipment specifically designed to heat solid gold (such as gold ore, gold powder, and scrap jewelry) to its melting point and transform it into a liquid state. It mainly includes mini furnaces, portable furnaces, tilting furnaces, and cabinet furnaces, etc. Its core function is to melt, purify, and cast gold through high-temperature heating, and it is widely used in mining, jewelry processing, and precious metal recycling. JXSC gold melting equipment can complete the melting of gold uniformly within minutes, significantly improving production efficiency. It meets core requirements such as high-temperature stability, material corrosion resistance, and safety protection, and can quickly achieve continuous melting of gold volumes ranging from small to large.
Gold Melting Equipment For sale
gold melting furnace
Capacity: 1-250kg
Types:
Mini gold melting furnaces;
Tilting melting furnace;
Portable gold melting furnace;
Cabinet-type melting furnace;
Infrared-Controlled Platinum Melting Furnace
Capacity: 2, 3, 4, 5, 6kg
Maximum temperature: 1600℃
Melting time: 2-3 minutes
50/100KG Automatic Tilting Gold Furnace
Capacity: 50, 100kg
Maximum temperature: 1600℃
Melting time: 20-30 minutes

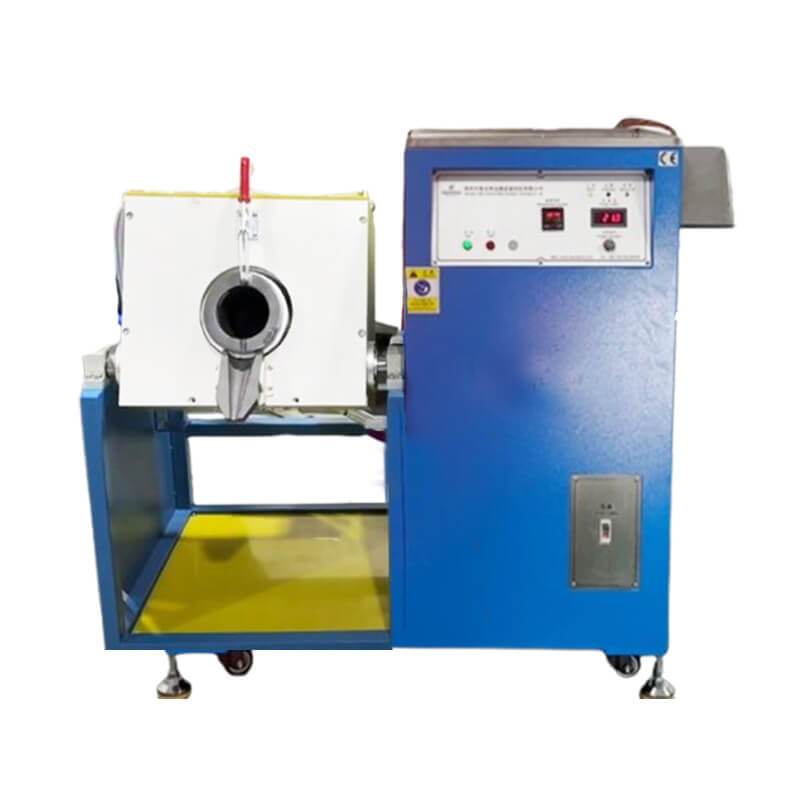

30/50 KG Auto-Pouring Induction Melting Furnace
Capacity: 30, 50KG
Melting time: 15-25Mins
Max heating temperature: 1600℃
Water temperature: 18-28℃
1-6KG Manual-Pour Platinum Melting Machine
Capacities: 1 kg, 2 kg, 3 kg, 4 kg, 5 kg, and 6 kg are available.
Maximum temperature: 2100°C-2600°C.
Melting time: 2-8 minutes.
6-20 Kg Hand-Tilting Gold Furnace
Maximum temperature: 1600°C
Melting time: 3-6 minutes
Melting capacity: 6kg, 8kg, 10kg, 15kg, 20kg available

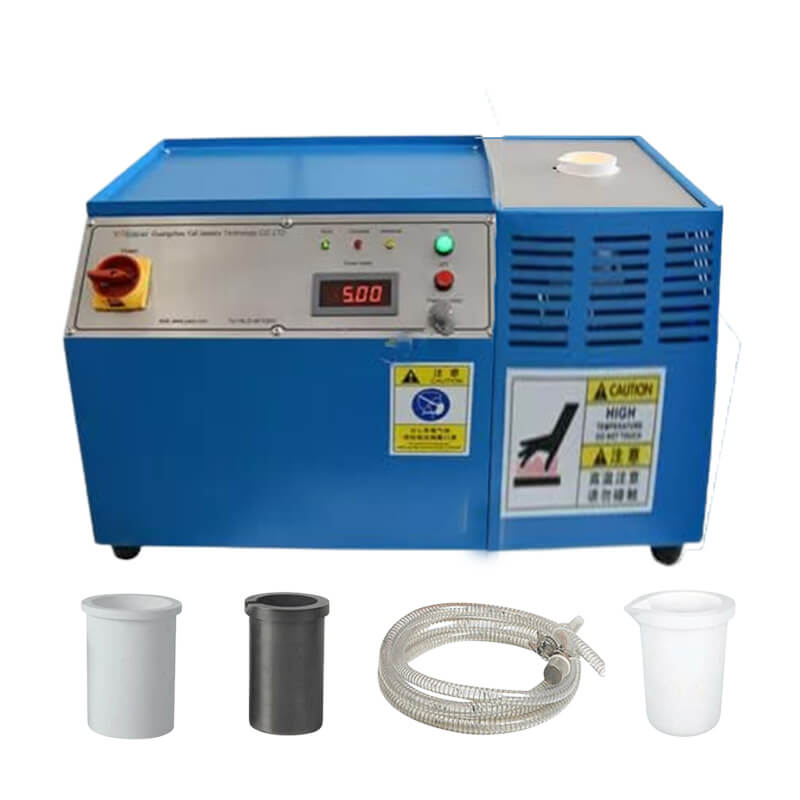

1-2KG Mini Benchtop Gold Smelting Furnace
Capacity: 1 kg to 2 kg
Maximum Temperature: 1500°C
Melting Time: 1-2 minutes
Main Functions of Gold Melting Equipment
- Treatment After Mineral Processing: In gold mining, the gold concentrate produced in the beneficiation stage needs further purification in a furnace. The gold melting equipment mixes and heats the gold concentrate with flux to remove impurities such as sulfur and iron, forming high-purity crude gold ingots.
- Precious Metal Recycling and Regeneration: For waste jewelry, electronic waste (such as gold-plated circuit boards), dental waste, etc., the equipment separates gold from other metals through high-temperature melting.
- Jewelry and Casting: After melting gold ingots or waste, they can be recast into jewelry or standard gold bars.
√ High Purity Output: Sealed melting combined with inert gas protection allows for gold purity up to 99.99%.
√ Safe and Reliable: Flame-free, explosion-proof design, and an automatic alarm system reduce operational risks.
√ High Adaptability: Capable of melting various metals including gold, silver, platinum, and palladium, requiring only parameter adjustments.
√ Environmentally Compliant: Waste gas treatment complies with European and American standards (such as EPA and RoHS), reducing precious metal volatilization losses.
√ Intelligent Control: Programmable temperature control and data recording improve production consistency.
√ High Economic Efficiency: Recovery rate exceeds 98%, reducing precious metal waste and resulting in lower long-term operating costs.
Flexible equipment options: jewelers can use small furnaces (1-5kg), while mining companies can opt for continuous large-scale smelting systems (daily processing capacity of several tons). JXSC gold melting furnaces are essential tools in the precious metals industry. Contact us to customize your gold melting equipment of different sizes!
