Hydrocyclones

Hydrocyclone

Capacity: 0.1-900 m³ /h

Application: Hydrocyclone is mainly used for classification and concentration in the beneficiation of metal ores such as iron, copper, lead, zinc, and lithium; desludging or ultra-fine classification of non-metallic ores such as quartz sand, kaolin, and barite; and can also remove fine mud on the surface of minerals or concentrate and dehydrate.

How It Works
Get The Price

Products display

Hydrocyclone
Hydrocyclone
hydrocyclone
Hydrocyclone
Hydrocyclone

introduction of Hydrocyclone

The hydrocyclone is a common mining classification equipment that uses centrifugal force to accelerate the sedimentation of ore particles. It is mostly used for grading operations in the second stage of closed-circuit grinding, and is sometimes used for mud dehydration to obtain very fine overflow products. We can also customize multiple hydrocyclones to form a group to improve classification efficiency. The hydrocyclone can quickly achieve classification and concentration dehydration, washing and de-sludge. It has the advantages of high separation efficiency, small size, and simple maintenance, and is widely used in mining, chemical industry, and environmental protection fields.

The hydrocyclone can be configured as a hydrocyclone group, achieving efficient solid-liquid separation, particle size classification, or density sorting through high-speed swirling centrifugal force.

It is often used in a closed-circuit system with a ball mill to control the particle size of the ground product. For example, it is a key equipment for closed-circuit grinding, tailings concentrating, and heavy media separation in gold, copper, spodumene, quartz sand, talc, and other mineral processing plants.

principle & structure of Hydrocyclone

Working Principle

The structure of the hydrocyclone is relatively simple. Its upper end is a cylindrical part, and its lower part is a conical container.
The slurry is fed into the cyclone at a certain speed (generally 5 to 12 meters per second) along the tangential direction, and obtains a rotary motion, thus generating a large centrifugal force (usually tens of times or even hundreds of times greater than gravity) . Under the action of centrifugal force, the coarser particles are thrown toward the wall of the vessel and move downwards with a spiral track, which is discharged from the grit nozzle to become coarse-grained products; the finer particles and most of the water are in the spiral path, discharge from the flow tube.

Structural features

  • Feed inlet: Tangentially oriented, ensuring high-speed swirl flow.
  • Cylinder (upper section): Cylindrical structure for stable fluid flow.
  • Cone (lower section): The cone angle is typically 10°-20°, affecting separation accuracy and efficiency.
    Bottom flow outlet (sand discharge outlet): Discharges coarse particles or high-density materials.
  • No moving parts: Relies on swirl motion to achieve separation.

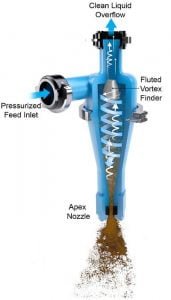

Hydrocyclone structure

why choose JXSC Hydrocyclone

features & Advantages of Hydrocyclone

1. It can adapt to liquids of different flow rates and particle sizes, effectively remove fine solid particles, and help remove suspended solids, sediment or other solid impurities.

2. The hydrocyclone can also be matched with a ball mill to form a closed-circuit grinding machine, replacing the traditional spiral classifier.

3. It has no powered parts and is driven by pressure energy, so it has extremely low maintenance costs and a lifespan of 5 to 10 years.

4. Compact design, takes up relatively little space and is easy to operate.

5. Hydrocyclone performance can be optimized by adjusting the feed flow rate, feed concentration, and cyclone geometric parameters to meet the requirements of different applications.

6. Polyurethane, ceramic or rubber linings are available to adapt the hydrocyclone to process acidic or abrasive slurries.

Get Custom Hydrocyclone

models & specifications

Model Diameter Angle of Cone(°） Diameter of overflow outlet (mm) Diameter of Spigot (mm) Max feeding size (mm) Inlet pressure (mpa) Capacity Separation particle size (um) 0verall Dimension Unit weight (kg)
(mm) (m3/h) Length (mm) Width (mm) Height (mm)
FX840 840 20 280～380 80～220 18 0.04～0.2 500～900 74～350 1700 1500 3700 1621
FX750 750 45 180～290 85～175 16 0.04～0.2 400～500 74～300 1210 910 2680 1400
FX710 710 45 175～270 80～165 16 0.03～0.2 350～450 74～250 1255 1185 1040 1250
FX660 660 20 165～250 80～155 16 0.03～0.2 250～350 74～220 1140 1000 2920 800
FX660 660 45 165～250 80～155 16 0.03～0.2 250～350 74～220 1140 1000 2000 995
FX610 610 20 155～230 75～140 13 0.03～0.2 200～300 74～220 875 950 2560 550
FX610 610 45 155～230 75～140 13 0.03～0.3 200～300 74～220 875 950 1810 600
FX500 500 20 125～185 55～115 10 0.03～0.3 140-220 74～220 850 700 2050 380
15 74～150 850 700 2380 540
45 74～150 850 825 1630 430
FX350 350 20 80～120 30～70 6 0.04～0.3 60～100 50～150 775 620 1765 208
15 50～120 775 620 1970 210
FX300 300 20 60～115 20～50 5 0.04～0.3 45～85 50～150 498 485 1415 105
15 40～100 498 485 1642 169
Fx250 250 20 60～100 16～45 3 0.06～0.35 40～60 40～100 410 380 1215 75
15 40～100 410 380 1405 73
10 30～100 410 380 1788 85
FX200 200 20 40～65 16～32 2 0.06～0.35 25～40 40～100 365 330 1030 45
15 30～100 410 330 1083 54
10 30～100 400 365 1490 60
F150 150 20 30～45 8～22 1.5 0.06～0.35 11～22 30～74 310 265 820 29
15 30～74 310 265 878 30
10 30～74 310 265 1160 35
FX125 125 17 25～40 8～18 1 0.06～0.35 8～15 20～100 260 218 620 10.2
8 20～74 260 218 870 33
FX100 100 20 20～40 8～18 1 0.06～0.35 5～15 20～100 260 210 525 8.6
15 20～100 268 215 720 13
8 20～100 365 150 1065 23
5 20～100 365 150 1505 30
FX75 75 15 15～22 6～12 0.6 0.1～0.4 2～5 20～74 240 230 420 2.2
5 5～40 240 230 778 6.5
FX50 50 15 11～16 3～8 0.3 0.1～0.4  1～2 10～74 160 137 400 1.5
5 160 137 680 5.5
FX25 25 5 6～10 3～7 0.2 0.1～0.4 0.8～1.2 4～20 130 85 495 1.2
FX10 10 4 3～4 2～3 0.2 0.2～0.4 0.1～0.2 2～10 30 30 195 2
