Rotary Scrubber
Capacity: 1-400 TPH
Feeding size: <100mm
Application: It is widely used to wash and screen rock, ore, sand, gravel and aggregates that contain much water-soluble clays; such as gold, diamond, copper, manganese, tantalum, niobium, tin, lead, zinc, zircon sand, chrome, iron ore, kaolin, coltan, quartz, etc.

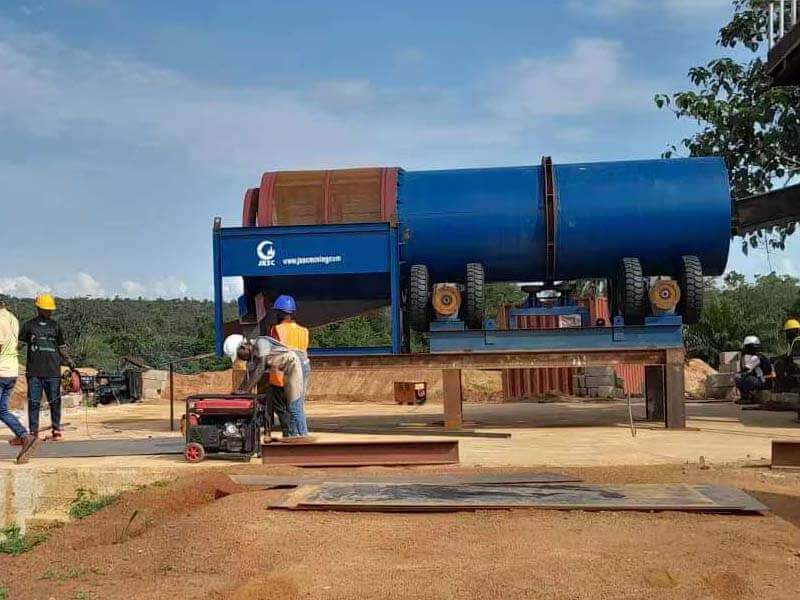

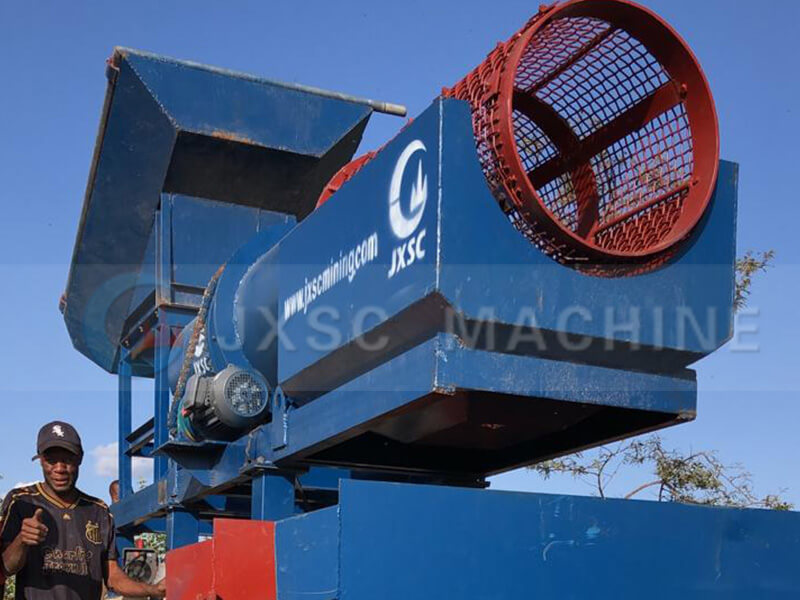

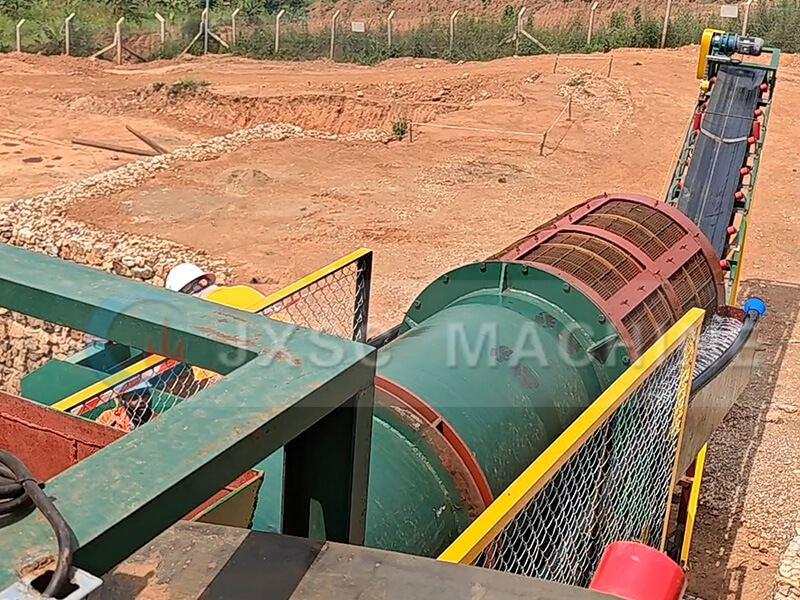

Products display
Introduction of rotary scrubber

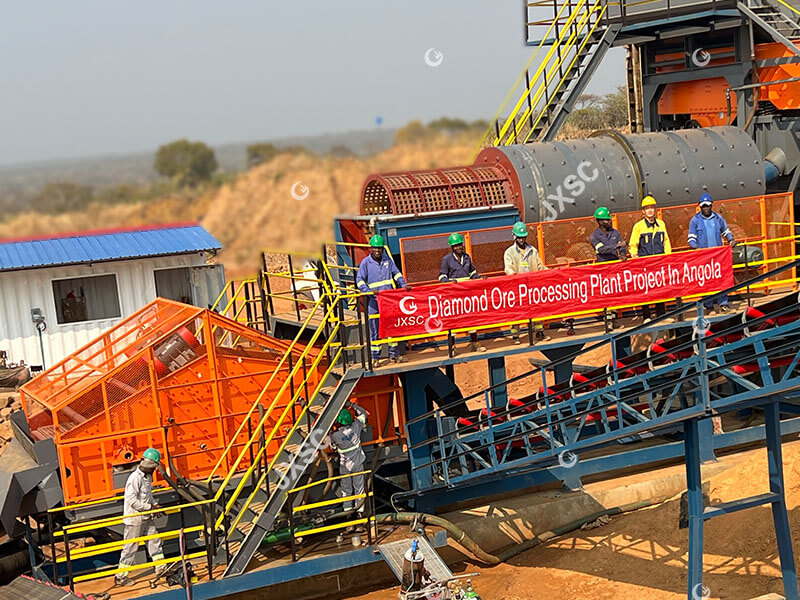

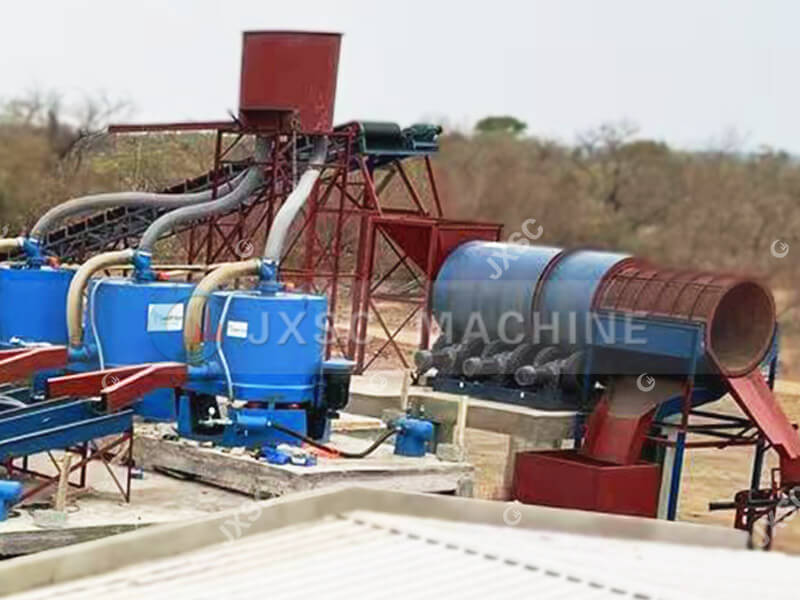

The rotary scrubber is also called trommel scrubber, or drum washer/ scrubber; it can effectively wash and screen ore with high mud content/ solid and get cleaner products. The trommel scrubbers are mainly applied for washing gold, diamond, and other ore (including manganese, copper, tantalum-niobium-tin, iron ore, silica sand, fluorite, etc.). It is often called gold wash trommel or diamond wash trommel. The trommel scrubber is usually equipped with a gold sluice box to form a one-stop gold washing plant.

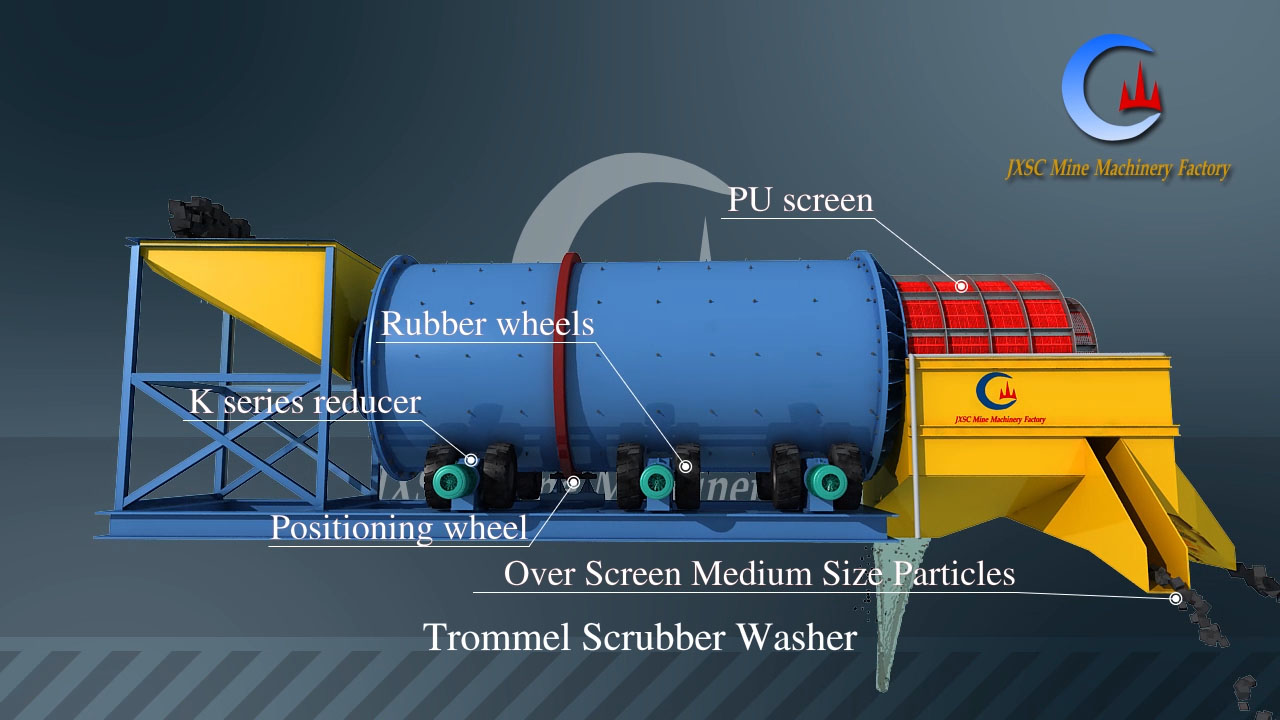

Our JXSC’s rotary scrubbers have two main parts: the drum scrubber and the screen. The drum scrubber part is used for washing ore, and then the screen inside is for sieving different size particles after ores washing processing. Those parts work together to remove water-soluble clays, deleterious materials, and coatings providing the final cleaner products.
working principle of rotary scrubber (trommel scrubber)
Four tugs power the cleaning cylinder of the trommel washing machine, the motor drives the speed reducer, and the large and small gears drive the cleaning cylinder to rotate at a low speed. The mud and stone powder aggregate is fed from the feed inlet and enters the rotating drum. The wear-resistant rubber lining board with a specific angle installed in the cleaning drum is continuously brought down and moved from the feed port to the discharge end port.
During the washing process, it will circulate many times and feeding ores get washed by forward or reverse flushing water.
Finally, the cleaned aggregates are discharged through the screen at the discharge port and then dehydrated. Meanwhile, the wastewater-containing sludge flows through the perforated baffle at the discharge or feed end.
Why choose JXSC rotary scrubber
Features & advantages of trommel scrubber
Highly customized
★ Good washing effect for sticky clay material, sieving out different size ores.
★ Low operating cost, easy maintenance, low noise.
★ The length &diameter of drum , inside drum lined material, screen mesh, layer quantity of screen and Screen material can be customized.

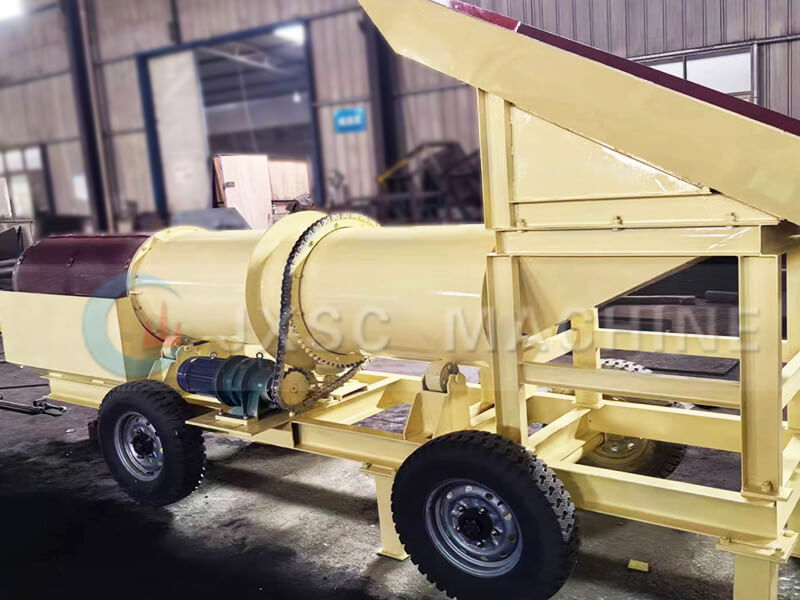

★ Mobile type or stationary type; Diesel generator or electric motor.
The screens of our rotary scrubbers
The screen mesh size& layer qty & screen materials can be customized. Screen material has below choices:
①PU: wear resistant, long life time, fix with screw, easy to replace;
②Manganese Steel: normal material, not easy to replace, short life time;
③Stainless Steel: Good quality, wear resistant.
Inner lined plates of trommel scrubber

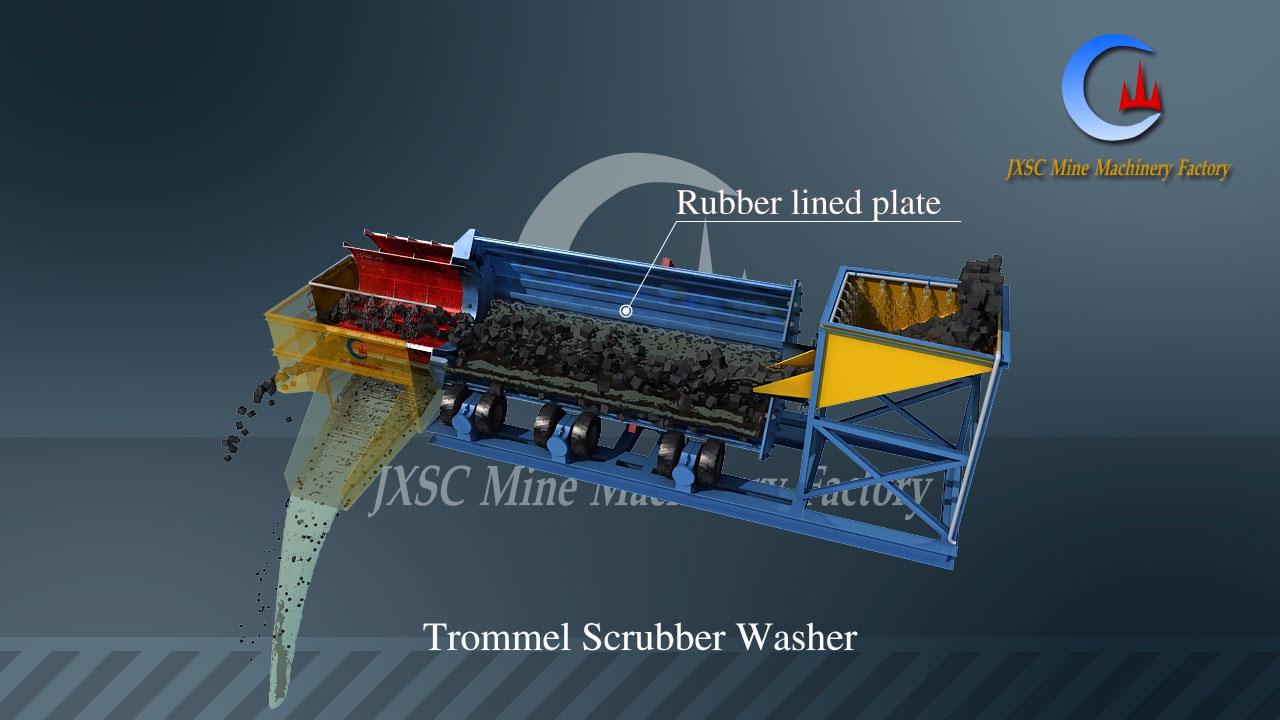

Inside drum scrubber can be Lined with a plate for washing more clean sticky clean material has below choice:
①Rubber lined Plates: wear-resistant, long lifetime, fix with the screw, easy to replace;
②Iron Plates Welded inside Drum: normal quality, welded, So the plates are not replaceable.
Well-known brand drive system and motor
The driving system rubber pneumatic tire is high quality, wear-resistant, high temperature resistant, high tolerance and famous brand.
Motor is high quality, chinese famous brand, can be speed-adjustable motor with frequency conversion electric cabinet. Huali & Simens motor and K-series Reducer.
models & specifications
Model | Drum Dia（mm) | Drum&Screen Length (M) | Screen Mesh Size(mm) | Rotation Speed(r/min) | Feeding Size(mm) | Angle of Inclination(o) | Process Capacity(t/h) |
|
JXSC-400 | 400 | 2m+1.2m | ≤20 | 27.9 | ≤80 | ≤10 | 1-5 | 3 |
JXSC-600 | 600 | 2m+1.2m | ≤25 | 27.6 | ≤80 | ≤10 | 5-10 | 4 |
JXSC-750 | 750 | 2.5m+1.5m | ≤25 | 27.6 | ≤100 | ≤10 | 10-20 | 5 |
JXSC-900 | 900 | 3m+1.8m | ≤25 | 27.6 | ≤100 | ≤10 | 20-40 | 11 |
JXSC-1200 | 1200 | 4m+2m | ≤25 | 17 | ≤100 | ≤10 | 40-70 | 15 |
JXSC-1500 | 1500 | 4m+2m | ≤50 | 16 | ≤100 | ≤10 | 70-100 | 30 |
JXSC-1800 | 1800 | 4m+2m | ≤50 | 16 | ≤100 | ≤10 | 100-150 | 18.5*2 |
JXSC-2100 | 2100 | 4m+2m | ≤50 | 16 | ≤100 | ≤10 | 150-200 | 22*2 |
JXSC-2400 | 2400 | 6m+2.5m | ≤50 | 16 | ≤100 | ≤10 | 200-250 | 22*4 |
JXSC-2700 | 2700 | 6m+2.5m | ≤50 | 16 | ≤100 | ≤10 | 250-270 | 55*2 |
JXSC-3000 | 3000 | 6m+2.5m | ≤50 | 16 | ≤100 | ≤10 | 270-300 | 30*4 |
JXSC-3200 | 3200 | 6m+2.5m | ≤50 | 16 | ≤100 | ≤10 | 300-340 | 37*4 |
JXSC-3400 | 3400 | 6m+2.5m | ≤50 | 16 | ≤100 | ≤10 | 340-370 | 45*4 |
JXSC-3600 | 3600 | 6m+2.5m | ≤50 | 16 | ≤100 | ≤10 | 370-400 | 55*4 |
