Are you certain you are using your gear reducer correctly? In applications ranging from industrial automation and robotics to new energy vehicles and conveyor systems, the gear reducer serves as a core component for power transmission. However, issues such as selecting the wrong lubricant, improper filling levels (over- or underfilling), and inconsistent oil change schedules recur in countless factories every day. In reality, implementing a correct maintenance strategy for gear reducers can extend their service life by two to three times while simultaneously reducing unplanned downtime by over 40%. This article will break down expert-level techniques for using, lubricating, and maintaining gear reducers, covering everything from oil selection, filling, and inspection to safe operation.
“Gear Reducer 101” refers to a foundational introduction to gear reducers, covering their operating principles, common types, and key maintenance essentials. It features expert-recommended techniques for usage, lubrication, and maintenance—designed to help your equipment run longer, more stably, and more safely.

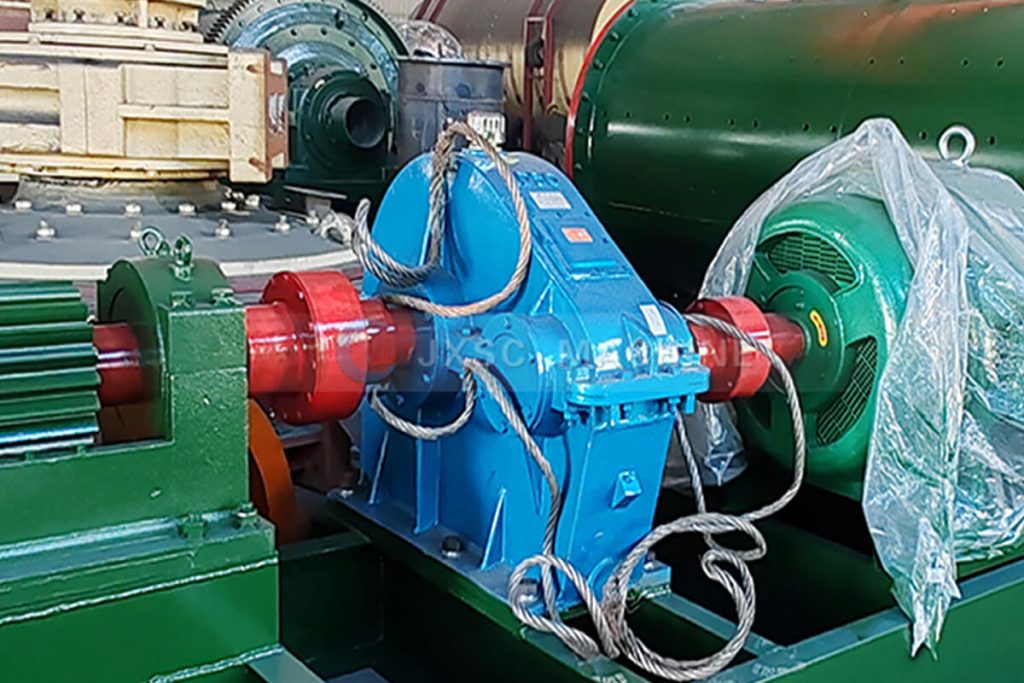

What Is a Gear Reducer?

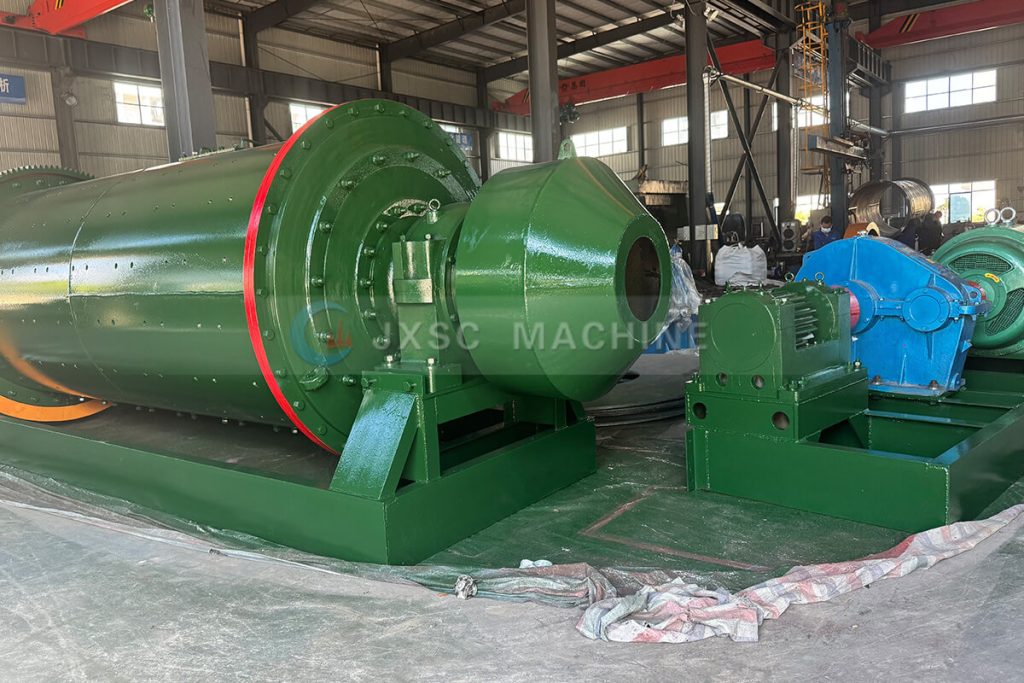

The core function of a gear reducer is power conversion: through the meshing of gears, it transforms the high-speed rotation of a motor into a low-speed, high-torque output, thereby driving heavy-duty machinery. This conversion process not only preserves the motor’s efficiency but also satisfies the mechanical equipment’s specific requirements for output force. From mines to ports, and from power plants to food processing facilities, virtually all equipment requiring power transmission relies on this device. It is particularly essential for providing stable power to modern mining and mineral processing machinery, such as ball mills, classifiers, crushers, and belt conveyors. Consequently, the stable operation of a gear reducer directly impacts the overall efficiency of the entire production system.

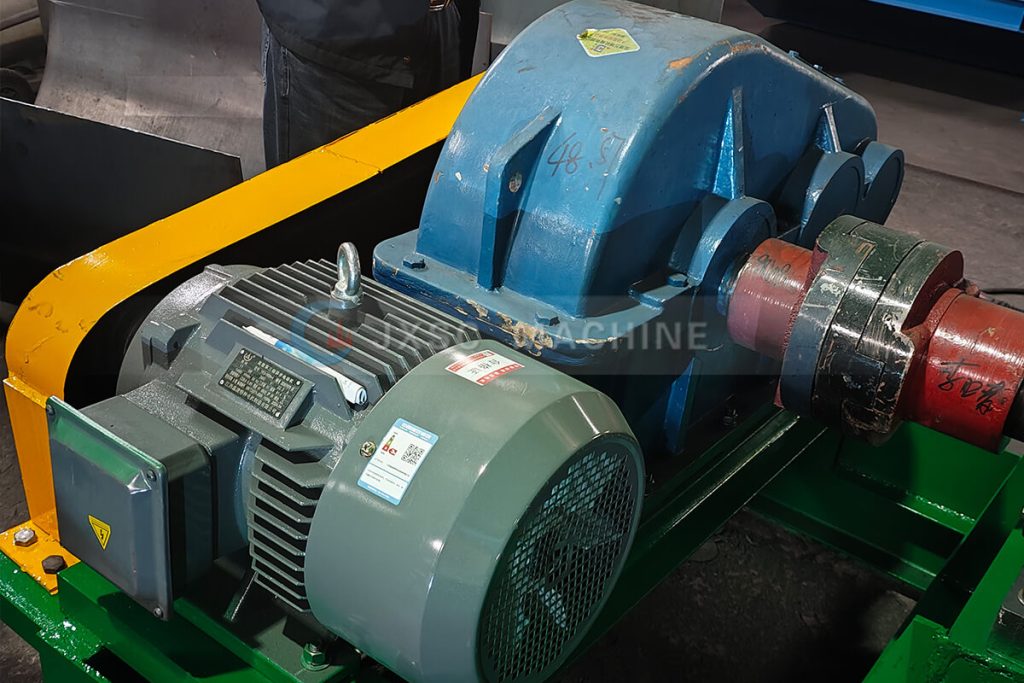

Working Principle
The core working principle of a gear reducer is as follows: the high rotational speed output by the motor is transmitted via the input shaft to a small gear; this small gear drives a larger gear through meshing rotation, thereby achieving the effect of reducing speed while amplifying torque. Simply put, the higher the input speed and the larger the gear ratio, the greater the output torque becomes, while the output speed decreases.

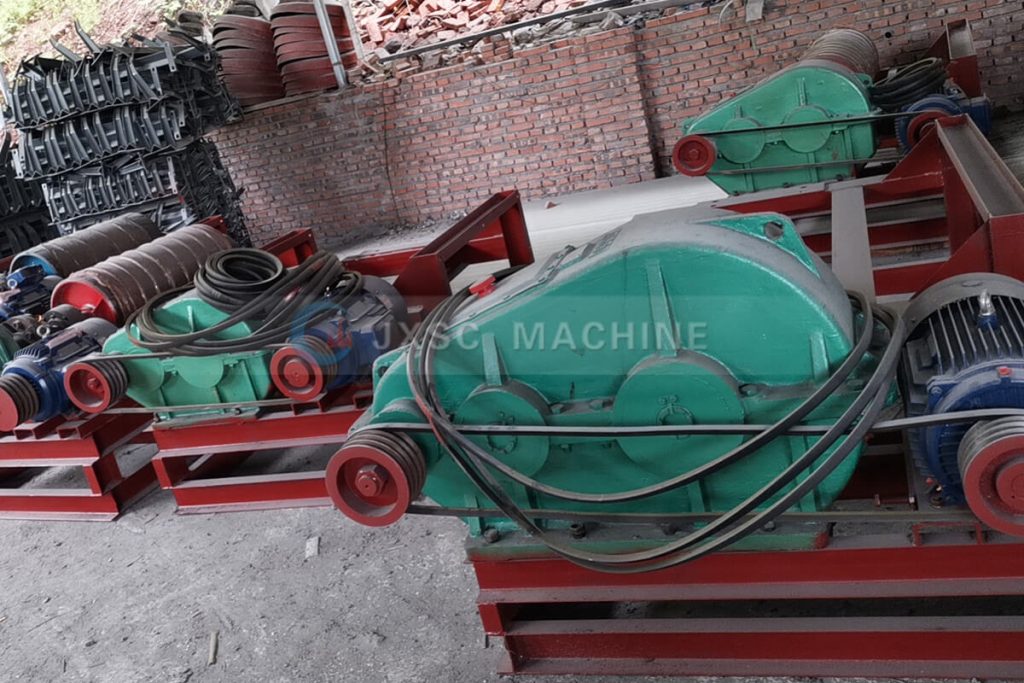

Common Types
The types of speed reducers commonly used in industry include:
- Planetary Reducers: Compact and highly efficient; suitable for robotics and precision machinery.
- Worm Gear Reducers: Feature self-locking properties; suitable for vertical lifting equipment.
- Helical Gear Reducers: Operate smoothly with low noise; commonly found in high-speed transmission systems.
- Spiral Bevel Gear Reducers: Offer high load-bearing capacity; used in heavy machinery, such as cranes.
Gear Reducer 101: Safe Usage Guidelines
(1) Pre-Startup Inspection
Gear Reducer 101, Lesson 1: Before startup, a comprehensive item-by-item inspection must be conducted; trial operation may commence only after confirming that everything is in order.
① Verify that the installation position is accurate and that the reducer is firmly seated against its foundation, with no misalignment or gaps.
② Check that all fasteners are tightened securely to prevent vibration caused by loosening during operation.
③ For splash-lubricated units, confirm that the oil level meets the specified standard and that the oil grade and viscosity are appropriate for the operating conditions.
④ If the unit is equipped with a circulating oil lubrication, cooling, and monitoring system, the following additional checks are required: verify that pipeline connections are correctly sealed; ensure all fasteners are secure; confirm that the oil pump rotation direction is correct; and verify that pressure gauges, monitoring instruments, and control devices are reliably installed.
⑤ Confirm that the prime mover’s direction of rotation is correct to prevent equipment damage caused by reverse rotation.
⑥ Check that the coupling guard, grounding wire, and other safety guards are properly installed.
(2) No-Load Trial Run
Gear Reducer 101 emphasizes: Upon completion of installation, a no-load trial run of approximately 2 hours should be performed first. In low-temperature environments, the lubricating oil in oil-bath systems must be preheated to prevent damage. An oil level that is too high can lead to overheating, while a level that is too low compromises lubrication effectiveness; it is recommended to adjust the oil level—by observing through the inspection port—until the oil splash appears uniform. For circulating lubrication systems, a pre-circulation period of 30 minutes is required to ensure that the oil pressure stabilizes within the range of 0.12–0.25 MPa.
(3) Load Operation Testing
Following the no-load test, apply the load in a stepped progression—at 25%, 50%, and 75% of capacity—culminating in full-load operation. During operation, inspect the gear tooth contact patterns and the condition of the fasteners; once confirmed to be normal, the unit may be put into formal service. Throughout this entire process, continuously monitor the oil pressure and temperature rise to ensure the equipment operates stably.
Mastery of Lubrication Management
The reducer is shipped from the factory without lubricant; users must properly fill the unit with lubricant before starting the machine. This reducer typically utilizes medium-load industrial gear oil—specifically grades L-CKC220 or L-CKC320—in accordance with the GB5903 standard. The following section outlines the primary recommended viscosity grades for mineral-based oils.
(1) Proper Lubricant Filling Procedures
a. Oil Level
Gear reducers typically employ splash lubrication (oil bath lubrication). Before operation, the oil must be filled to the specified level—specifically, 20 to 30 millimeters above the lowest gear teeth—and replenished periodically. When filling, it is recommended to maintain a level that covers 2 to 3 tooth heights of the high-speed pinion; this ensures adequate lubrication for the high-speed bearings.
b. Oil Change Intervals
For a new reducer, the oil must be replaced with fresh oil after an initial break-in period of 7 to 14 days (equivalent to 150 to 300 operating hours). A second oil change is mandatory after 3 months of operation. Thereafter, the oil quality should be inspected regularly, and the oil must be replaced immediately if it contains impurities or shows signs of aging or deterioration. For reducers operating continuously over long periods, an oil change is recommended every 6 to 8 months; for reducers operating for no more than 8 hours per day, an oil change is recommended every 10 to 12 months.
c. Lubricant Selection
When replacing the oil, the new lubricant must be of the same brand and grade as the oil originally used; mixing different brands or types of lubricants is strictly prohibited. Before injecting the fresh oil, heat a quantity of the same lubricant grade used during operation; use this heated oil to flush the interior of the gear housing to ensure the new oil remains free from contamination.
d. Oil Temperature
The permissible operating temperature of the reducer depends primarily on the specific type of lubricant used. Allowing the oil temperature to rise excessively accelerates lubricant aging, shortens oil change intervals, and increases maintenance costs, resulting in economic inefficiency. It is generally recommended to maintain the oil temperature within a reasonable range to avoid prolonged operation at elevated temperatures.
(2) Selection of Lubrication Method
Horizontal reducers utilize a splash lubrication system (oil bath splash lubrication), relying on the rotation of the gears to fling the lubricant toward the various lubrication points throughout the unit. When the ambient temperature drops below 0°C, a lubricant heating device should be used to preheat the oil, or a lubricant with a low pour point should be selected; the reducer must not be started until it is confirmed that the oil is flowing freely. If spray lubrication is employed, the oil temperature must exceed 5°C before startup. If the reducer has been shut down continuously for more than 24 hours, the gears and bearings must be thoroughly lubricated before restarting; load-bearing operation may commence only after normal operation has been verified.
(3) Bearing Lubrication
Bearing lubrication for the reducer is primarily categorized into two methods: oil lubrication and grease lubrication. Oil lubrication is suitable for applications involving high rotational speeds and heavy loads; the oil level must be adjusted according to the rotational speed. Specifically, at 1500 r/min, the oil level should not exceed the center of the bearing’s rolling elements; for higher rotational speeds, the oil level should be lowered further. Grease lubrication is suitable for low-speed bearings (with a circumferential velocity of ≤ 4–5 m/s), and the fill volume should be controlled to occupy between one-third and one-half of the bearing cavity space. If oil bath lubrication is utilized, particular attention must be paid to the design of the oil circulation channels to ensure that the bearings receive adequate lubrication.
¶ Precautions:
- When replacing oil seals, materials resistant to both heat and oil must be selected.
- In extreme environments (high temperature, high humidity, or dusty conditions), the oil change interval should be shortened.
- Different lubrication methods must not be mixed; operations must adhere to the original manufacturer’s design specifications.
8 expert-level gear reducer maintenance techniques
1. Spare Parts Manufacturing
The Gear Reducer 101 emphasizes that the reducer needs to be inspected and maintained regularly. Should signs of tooth surface scuffing, seizing, or significant wear be detected, effective remedial measures must be implemented immediately. Replacement components must undergo a break-in test and meet established technical standards before being put into service.
2. Transmission Inspection
During operation, closely monitor all transmission components to ensure they rotate smoothly. If any abnormal noises or excessive temperatures are detected, immediately analyze the cause and resolve the potential hazard. If a bearing emits abnormal sounds, inspect it immediately and replace it if necessary. Failure to promptly replace a damaged bearing will result in severe damage to the gears. If you are unable to resolve the issue yourself, shut down the equipment and contact the after-sales service department.
3. Oil Level and Temperature
Regularly inspect the tightness of bolts and the oil level. If the oil level falls below the lower mark on the dipstick, replenish the oil promptly. For circulating oil lubrication systems, monitor oil pressure fluctuations; if the oil pressure drops significantly, inspect and clean the oil filter screen to ensure that the oil passages remain unobstructed.
4. Heat Dissipation Inspection
Keep the reducer housing clean and ensure that the heat dissipation vents remain unobstructed. If the temperature of the housing rises abnormally, it may be caused by factors such as an excessively high oil level, poor heat dissipation, oil degradation, insufficient cooling water, or scale buildup in the cooler; these potential causes must be investigated one by one.
5. Oil Leak Inspection
If oil leakage occurs at the high-speed shaft, first check whether the oil level is excessively high, which could lead to increased internal pressure. If the shaft seal is leaking due to aging or wear, the user must promptly replace it with a seal of the same specifications. Important Note: After 8 hours of reducer operation, it is considered normal—and not a leak—if only a small area around the shaft seal appears slightly dampened with oil. It is strictly forbidden to remove the inspection window cover while the unit is in operation, to prevent injury caused by the喷射 of high-temperature gear oil.
6. Safety Precautions
Protective guards must be installed over any exposed rotating components of the reducer to prevent clothing or tools from becoming entangled and causing injury. When connecting the unit to an electric motor or other electrical equipment, ensure it is reliably grounded to prevent electrical leakage accidents. Important Note: It is strictly forbidden to remove the sight glass cover while the unit is in operation, to prevent burns caused by splashing high-temperature gear oil. Before performing any maintenance, the power supply must be disconnected, and the equipment allowed to come to a complete stop.
7. Oil Changes
Change the oil at regular intervals to remove metal residues, use only the specified lubricants, and strictly avoid mixing different grades. Adhere to the lubrication oil replacement standards outlined in “Gear Reducer 101.”
8. System Management
Users should establish sound maintenance regulations and procedures, clearly defining inspection responsibilities. Operating parameters and issues identified during maintenance must be meticulously documented, and comprehensive equipment records should be established. Important Note: If you are unfamiliar with the installation or operation of the equipment, please contact the manufacturer for technical support prior to attempting any disassembly. The user assumes full responsibility for any damage resulting from unauthorized disassembly or reassembly.
Conclusion
From selecting the right lubricant to establishing a daily inspection plan, including timely oil changes, thorough seal checks, and alerting to unusual noises, these elements together form a complete closed loop for the safe use and long-term maintenance of gear reducers. These practices constitute the core curriculum of “Gear Reducer 101” because proper lubrication and maintenance effectively minimize gear friction, regulate oil temperatures, and prevent leaks, thereby significantly extending the service life of the equipment.
Whether you are a factory equipment engineer or an independent maintenance technician, truly integrating these techniques into your daily workflow will result in gear reducers that operate more stably, last longer, incur lower costs, and function more safely. If you encounter specific challenges regarding equipment selection or maintenance, we invite you to contact us for professional assistance; we can also provide customized gear reducers and complementary mineral processing equipment services tailored to your specific operating conditions.
