Are you struggling with suboptimal copper flotation recovery rates? In the copper beneficiation process, the flotation machine is undoubtedly the core piece of equipment—the “heart” of the operation. It directly determines copper concentrate grade, metal recovery rates, and the overall economic performance of the processing plant. However, faced with diverse ore types—such as copper sulfides, oxides, and mixed ores—and a wide array of machine models (including mechanical agitation, pneumatic-agitation, and flotation columns), plant managers often find the selection process daunting. Choosing the wrong equipment leads not only to poor recovery rates but also to soaring energy consumption and spiraling operating costs. This article provides an in-depth analysis of copper flotation machine types and key selection tips to help you make the optimal equipment decision.
In copper beneficiation plants, flotation machines have become essential tools for modern processing operations, thanks to their high recovery rates for fine-grained ore (90%), adaptability to complex ore types (sulfide, oxide, and mixed ores), and intelligent energy-saving solutions (such as variable frequency drives and high-efficiency impellers).
Why Flotation Machine Is the Heart of Copper Beneficiation?
Principles of Froth Flotation
The principle of froth flotation is straightforward: it exploits the natural differences in surface wettability between copper minerals and gangue minerals to efficiently “skim” valuable minerals from the slurry using air bubbles. Because copper minerals are hydrophobic, they readily adhere to bubble surfaces and rise to the top of the slurry to form a froth layer; conversely, hydrophilic gangue minerals remain in the slurry and are ultimately discharged as tailings. However, in copper flotation, factors such as bubble diameter, slurry concentration, and agitation intensity collectively determine the final separation performance.
Key Performance Metrics That Matter
- Recovery Rate: This is the primary benchmark for measuring the success of flotation. The industry-standard target for copper flotation recovery ranges from 85% to 95%. A higher recovery rate signifies minimal loss of copper metal to tailings, indicating more efficient resource utilization.
- Concentrate Grade: The copper content of the concentrate directly determines its market value. The use of JXSC flotation machines enables the upgrading of low-grade feed into high-grade, marketable concentrate while maintaining high recovery rates.
- Specific Energy Consumption: Electricity costs represent a significant operational expense for processing plants. High-efficiency flotation machines feature impeller designs that reduce energy consumption.
- Aeration Rate and Mineralization Efficiency: Optimal aeration ensures uniform bubble distribution, maximizing the capture of copper minerals. Modern copper flotation machines now allow for precise control of aeration rates, enabling optimization based on variations in ore characteristics.
Flotation Machines vs. Other Technologies in Copper Beneficiation
Copper beneficiation is not limited to flotation; gravity and magnetic separation are also used. However, the suitability of each technology varies significantly depending on the characteristics of the specific copper ore.
| Comparison Dimension | Flotation Method | Gravity Separation Method | Magnetic Separation Method |
|---|---|---|---|
| Applicable Particle Size Range | Mainly fine particles | Mainly medium to coarse particles | Mainly medium particles |
| Adaptability to Copper Ore | Sulfide / Oxide / Mixed | Coarse-grained disseminated copper ore | Only applicable to copper ores containing magnetic minerals |
| Separation Precision | High, can achieve precise separation | Relatively low, prone to gangue contamination | Medium, highly susceptible to magnetic interference |
| Concentrate Grade Control | Flexible and adjustable, stable grade | Difficult to control precisely | Heavily influenced by ore magnetic properties |
| Fine Particle Recovery Capability | Strong, capable of recovering ultra-fine particles | Weak, fine particles tend to be lost | Moderate, effective for fine magnetic minerals |
| Equipment Investment | Moderate | Relatively low | Relatively high |
| Operational Flexibility | Reagents adjustable, strong adaptability | Fixed process, limited adjustment | Magnetic field strength adjustable, acceptable adaptability |
| Multi-Metal Processing | Can separate multiple minerals through staged flotation | Difficult to separate associated metals | Can only separate magnetic minerals |
Thanks to the flexibility in reagent selection and the precision of bubble-based capture, flotation can selectively capture fine copper mineral particles one by one, enabling the efficient recovery of both copper sulfides and copper oxides. Compared to gravity separation and magnetic separation, flotation holds an absolute, irreplaceable advantage in processing fine-grained copper ores, achieving recovery rates as high as 90%.
3 Main Types of Flotation Machines for Copper Ore

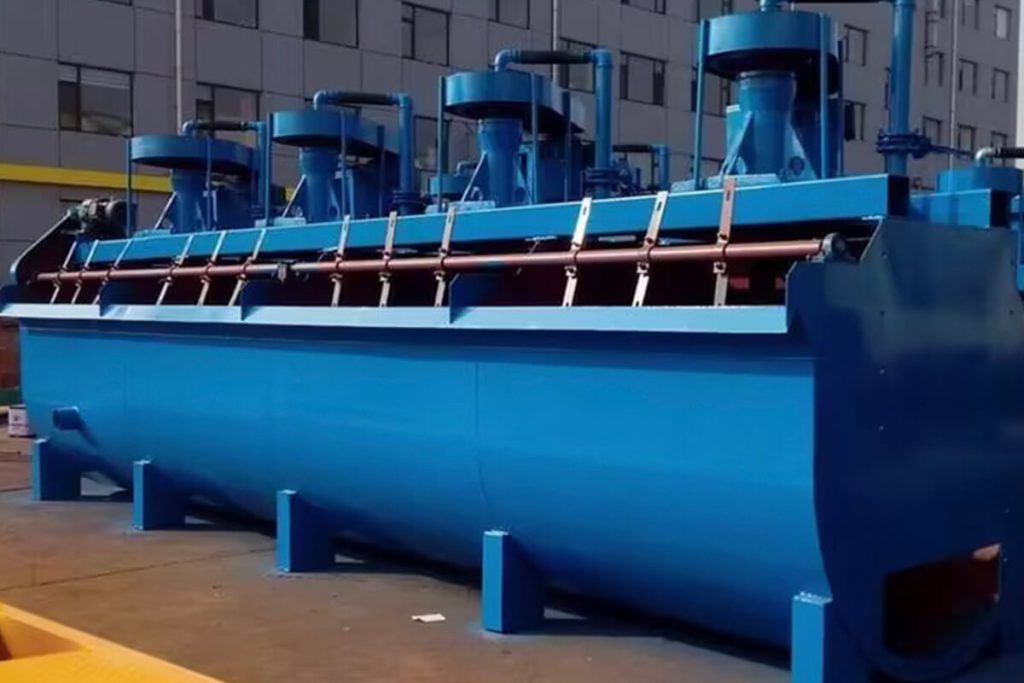

1. Mechanically Agitated Flotation Machines
Structural Features:
The core component of a mechanically agitated flotation equipment (SF flotation machine) is a high-speed rotating impeller mounted at the end of a vertical shaft and surrounded by a stator. The high-speed rotation of the impeller generates negative pressure, self-aspirates air, and agitates the slurry. The stator, encircling the impeller, further breaks down air bubbles. The tank is typically rectangular or U-shaped, with a froth scraper installed at the top. The machine features a simple structure and highly interchangeable parts, making maintenance and replacement very convenient.
Applications:
Achieves recovery rates exceeding 90% for primary sulfide minerals—such as chalcopyrite and bornite—found in porphyry copper deposits. It is particularly suitable for processing medium-to-coarse-grained copper sulfide ores (e.g., chalcopyrite and bornite) with dissemination sizes of 0.1–0.3 mm. However, due to the generation of relatively large bubbles, it is unsuitable for floating oxidized ores or fine-grained minerals smaller than 0.074 mm.
Advantages:
Low equipment cost and a short investment payback period. Simple operation and maintenance; small-to-medium-sized processing plants can operate effectively without a highly skilled maintenance team. The self-aspirating design eliminates the need for external blowers and air supply piping, resulting in a highly independent system.
Disadvantages:
High specific energy consumption; the high-speed rotation of the impeller consumes significant electricity. There are limitations on single-cell volume, and power consumption increases exponentially as the machine is scaled up. Bubble size distribution is uneven, leading to a poor recovery effect of ultra-fine particles.
2. Pneumatic (Forced-Air) Flotation Machines
External Air Supply System:
Air is supplied independently by an external blower, meaning aeration volume is not constrained by impeller speed. When ore grade or slurry concentration fluctuates, operators can simply adjust the blower valve to alter bubble density within seconds, maintaining stable flotation performance. Impeller speed can be reduced, leading to lower energy consumption and decreased equipment wear.
Applications:
Single-cell volumes can exceed 300 cubic meters, with the processing capacity of a single unit equivalent to that of multiple traditional copper flotation machines. The tank’s flow field is optimized via simulation, preventing coarse particles from settling while ensuring fine particles fully participate in the flotation process. When integrated with an automated control system, it is suitable for the construction of ultra-large-scale copper flotation production lines. Furthermore, liquid levels and aeration rates can be adjusted in real-time, significantly enhancing operational stability.
3. Flotation Column
Micro-bubble generation technology:
Flotation columns have no moving parts; bubbles are generated by a micro-bubble generator at the base of the column. Compressed air or high-pressure slurry undergoes shearing to form tiny bubbles—ranging from just 0.2 to 0.5 mm in diameter—that are evenly distributed across the column’s cross-section, providing ample opportunity for mineral attachment.
For recovering fine and ultrafine copper particles:
The micro-bubbles in a flotation column are similar in size to ultrafine particles, drastically increasing the probability of collision. This technology is particularly well-suited for the fine-separation stages of oxidized copper ores and secondary sulfide ores, capable of boosting the recovery rate of the -0.01 mm ultrafine fraction by 50%. Consequently, flotation columns significantly outperform traditional equipment in recovering ultrafine copper particles and yield higher concentrate grades.
How to Choose the Right Copper Flotation Machine?
(1) Selection Based on Ore Type
For copper sulfide ores, mechanically agitated flotation machines (SF type) are preferred; their intense turbulence is suitable for coarse-particle flotation. For copper oxide ores, pneumatic flotation machines (XCF/KYF) or a combined process involving sulfidization flotation and hydrometallurgy are recommended. Mixed ores can be processed using a combined circuit of flotation columns and mechanical flotation machines.
(2) Selection Based on Processing Capacity
For small-scale processing plants with a daily capacity of under 200 tons, mechanically agitated flotation machines are the primary choice due to low investment costs, simple maintenance, and high operational flexibility. Medium-to-large plants may employ a combination of mechanically agitated and pneumatic-agitated machines to balance investment costs with operational efficiency.
(3) Selection Based on Energy-Saving Requirements
Variable frequency drives (VFDs) can be installed to allow flexible adjustment of impeller speed; the speed automatically decreases during low-load periods to prevent wasted electricity. An advanced copper flotation machine utilizes synergistic technologies to significantly reduce power consumption per unit of throughput. For instance, optimized impellers can generate strong agitation forces even at low speeds, resulting in more uniform bubble dispersion and lower energy consumption.
Conclusion
From mechanical agitation and pneumatic agitation cells to flotation columns, each type of copper flotation machine is suited to specific operational scenarios. Compared to gravity and magnetic separation, flotation offers distinct advantages in processing fine-grained sulfide, oxide, and mixed copper ores, making it an essential tool in the copper beneficiation industry. Furthermore, combining intelligent control can further reduce energy consumption. If you are planning a new copper processing plant or optimizing an existing production line, please contact us for customized copper flotation solutions designed to help you cut costs and boost efficiency.
