In the field of mineral extraction, leaching technology is highly favored for its efficiency and cost-effectiveness; yet, many practitioners overlook a critical question: Is your ore truly suitable for leaching? The answer impacts not only recovery rates and reagent consumption but also the mine’s ultimate profitability. Factors ranging from the mode of gold occurrence and gangue acid-consumption properties to ore porosity and clay content determine the process’s maximum efficiency. This article will provide an in-depth analysis of the ore characteristics, types, and suitable reasons most suitable for leaching processes, helping you to escape the predicament of blind trial and error and achieve the goal of extracting valuable ores with a truly high recovery rate!
Ore type is a critical factor when selecting a leaching process. Oxidized ores, secondary sulfide ores, carbonate-hosted ores, and finely disseminated gold ores are best suited for leaching due to their high solubility and low processing costs. Optimizing the leaching scheme requires aligning the process with specific ore characteristics to avoid wasted investment.
What Is Leaching Process?
(1) Definition:
Leaching is a hydrometallurgical process that uses chemical solvents to convert valuable metals in ore from the solid to the liquid state. The leaching agent reacts with the target minerals to form soluble complexes, thereby separating the metal from the gangue. This process eliminates the need for high-temperature smelting, resulting in lower energy consumption and reduced investment costs. It is widely used to extract metals such as gold, copper, and uranium, and is particularly suitable for low-grade or complex ores that are difficult to process with traditional smelting methods.
(2) 4 Common Major Types of Leaching Processes
Heap Leaching:
Crushed ore is stacked on an impermeable liner, and the leaching agent is applied via spraying. The solution percolates through the ore heap, dissolving the metals, and is collected at the bottom. While low-cost and simple to operate, the process takes a long time—typically ranging from several weeks to months. It is the preferred, highly efficient, and economical choice for large-scale, low-grade oxide ores (such as gold and copper).

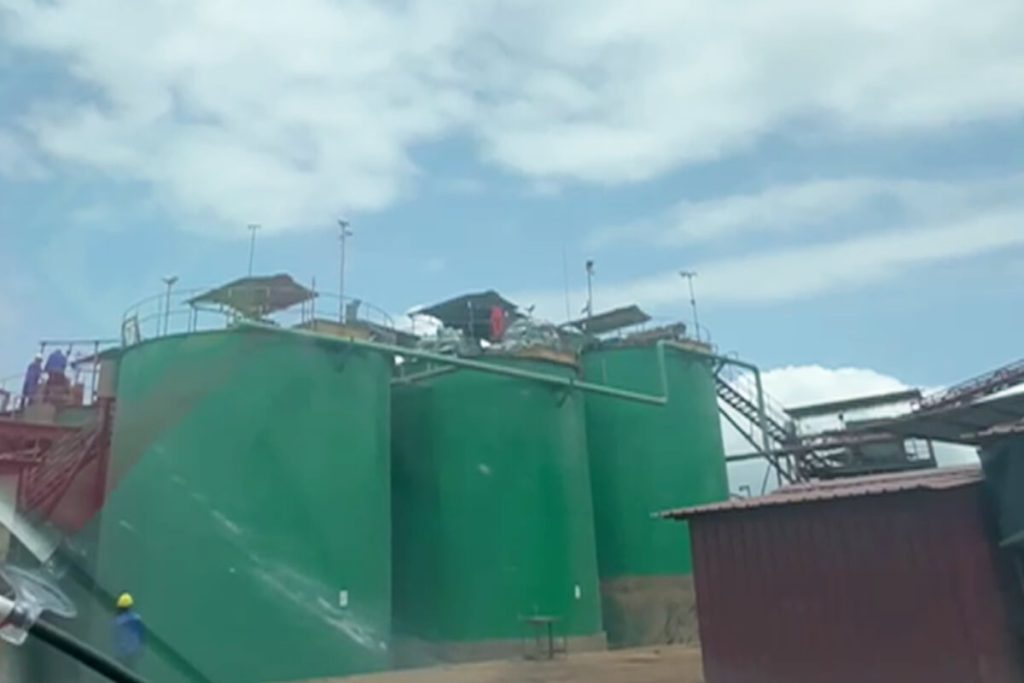

Agitated Leaching/Tank Leaching:
Finely ground ore is mixed with the leaching agent in an agitated tank to accelerate the solid-liquid reaction. This method offers high efficiency and shorter processing times, with metal recovery rates superior to those of heap leaching. Commonly used for extracting strategic metals like nickel and cobalt, it allows for a higher degree of automation but entails higher energy consumption and equipment investment.
VAT Leaching:
Ore is soaked in enclosed vats or tanks, with the leaching solution percolating dynamically through the material. This method offers short leaching cycles and high recovery rates but requires the construction of specialized vats, resulting in significant infrastructure investment.
In-situ Leaching:
The leaching agent is injected into the underground ore body through boreholes; the solution dissolves the metals within the fractures of the ore body and is then pumped to the surface for processing. This method requires no mining operations and causes minimal environmental disturbance, though it places strict demands on the permeability and containment integrity of the ore body. It is particularly suitable for uranium deposits or deep-seated ore bodies that are difficult to mine using traditional methods.
5 Common Ore Types Best Suitable For Leaching
1. Oxidized Ores

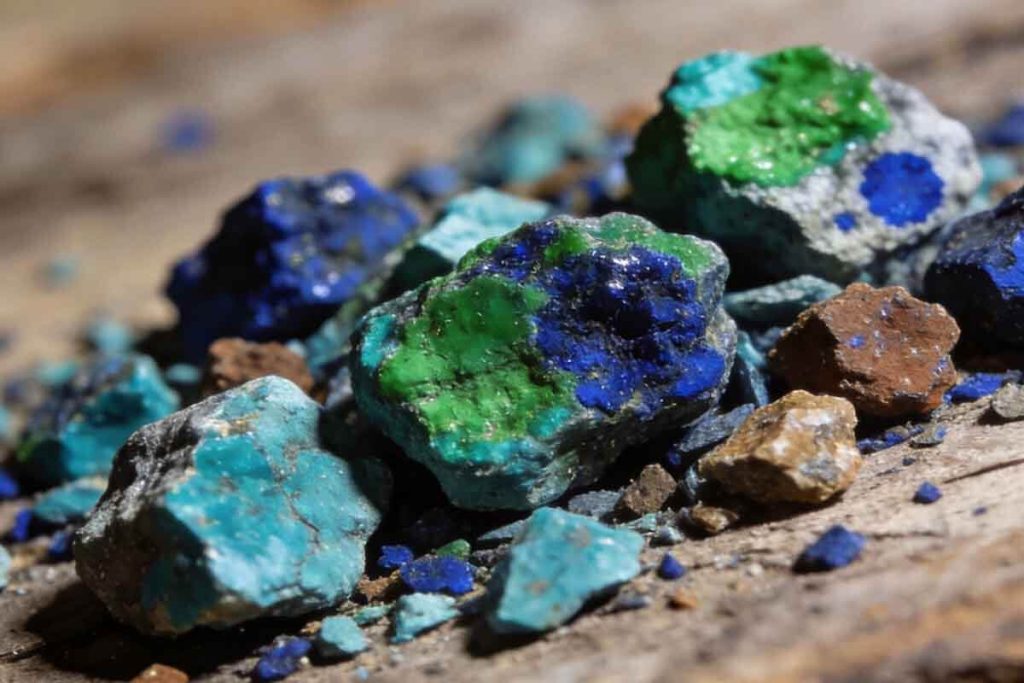

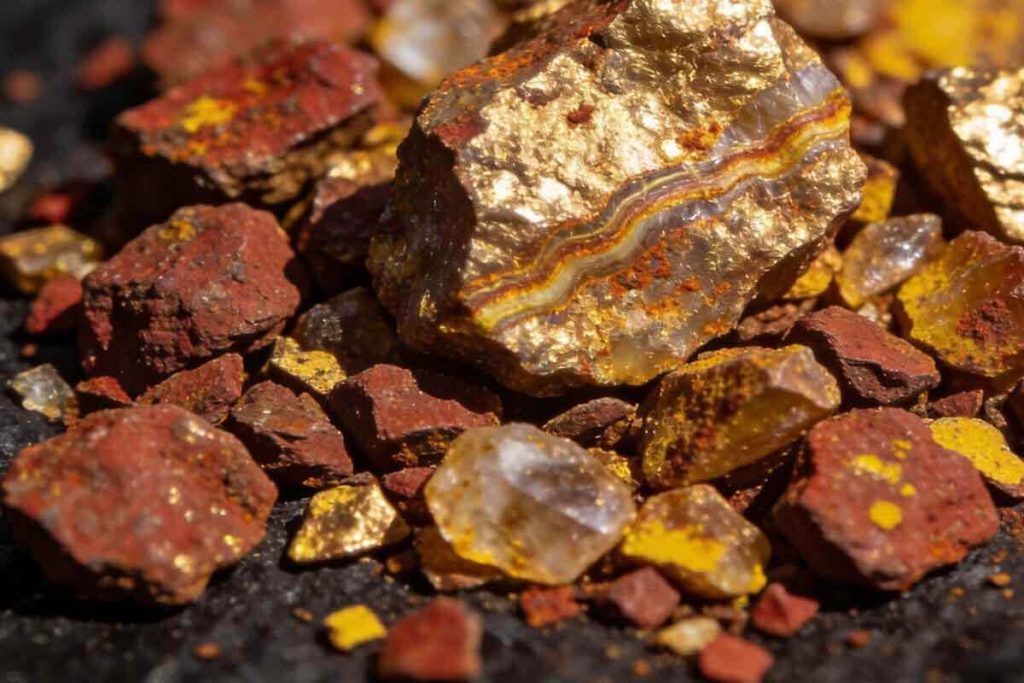

Oxidized ores are ores that have undergone prolonged weathering, causing metal minerals to transform into oxides or hydroxides. Typical examples include oxidized gold ores, oxidized copper ores (such as malachite, azurite, and chrysocolla), and silver ores.
Leaching methods: Oxidized gold ores are amenable to direct cyanidation. Oxidized copper ores are suitable for heap leaching or agitated leaching using dilute sulfuric acid.
Why are they easy to leach:
Oxidized ores have a loose, porous structure, and metals exist in readily soluble forms; leaching solutions can easily penetrate the particles, allowing for rapid dissolution without the need for strong oxidizing agents.
2. Secondary Sulfide Ores
Secondary sulfide ores are minerals formed through the secondary enrichment of primary sulfide ores; typical examples include chalcocite and covellite. Among sulfide ores, these are relatively easy to leach.
Leaching methods: Acid leaching combined with bacterial oxidation, or heap/vat leaching using ferric sulfate solution as an oxidizing agent.
Why: Secondary sulfide ores have a relatively loose crystal structure and high solubility in acidic, oxidizing environments; bacterial catalysis can further enhance leaching efficiency.
3. Carbonate-Bearing Ores
Carbonate-bearing ores contain carbonate minerals—such as calcite and dolomite—as the primary gangue, often associated with valuable metals like copper, lead, and zinc.
Leaching methods: Alkaline leaching processes are preferred. If the ore contains gold or copper, pre-acid washing is required to reduce subsequent acid consumption.
Why: Carbonate minerals consume acid, making direct acid leaching economically inefficient; alkaline leaching avoids this issue.
4. Micro-disseminated Gold Ores
Gold occurs as sub-micron particles uniformly dispersed within the crystal lattices of pyrite or arsenopyrite; typical examples include Carlin-type gold deposits.
Leaching methods: Oxidative pretreatment (such as roasting or bacterial oxidation) is first performed to break down the sulfide crystal lattice, followed by cyanidation (CIP/CIL)to recover the gold.
Why: Micro-fine gold is often encapsulated within the minerals; pretreatment opens the crystal lattice to expose the gold particles, enabling effective leaching.
5. Uranium Ores
Uranium ores contain minerals such as uraninite and coffinite and serve as vital raw materials for the nuclear energy industry.
Leaching Methods: Acid leaching is employed for silicate-type uranium ores, while alkaline leaching is used for carbonate-type ores. In-situ leaching processes are commonly used for low-grade uranium ores. The specific method depends on the type of ore deposit.
Why: Uranium typically exists in an oxidized state and is readily soluble in carbonate or sulfuric acid solutions. The specific leaching route must be selected based on the type of gangue minerals present.
Characteristics of ores suitable for leaching
Leaching is a vital method in modern metal ore extraction, and its efficiency depends directly on the physicochemical properties of the target ore. The following are six key parameters for evaluating an ore’s suitability for leaching:
Mineralogical Composition:
Oxidized minerals react readily with leaching agents, whereas sulfide minerals require oxidative assistance. For instance, free gold in gold ore is easily leached by cyanide, while copper sulfide ores require treatment with strong oxidizing agents.
Mode of Metal Occurrence
Gold particles exposed on the mineral surface can be leached directly with high efficiency, whereas fine metal particles encapsulated within the crystal lattice require pretreatment for liberation.
Acid-Consuming Characteristics of Gangue Minerals
Carbonate-bearing ores (such as those containing calcite) consume large amounts of leaching agents. In contrast, silicate gangue—dominated by quartz—hardly reacts with leaching agents, resulting in low reagent consumption. Mineralogical analysis is recommended prior to leaching.
Clay Content
High clay content can clog ore pores and impede the penetration of the leaching solution, severely affecting diffusion efficiency and reducing metal recovery rates.
Porosity
Ores with high porosity facilitate the diffusion and penetration of the leaching solution, significantly shortening the leaching cycle and enhancing production efficiency.
Not all ores are suitable for leaching. Suitable ores typically share common characteristics: simple mineralogical composition, accessible metal occurrence, low acid consumption by gangue, low clay content, and a loose, porous structure. These ore properties determine the upper limit of leaching efficiency and directly influence the project’s economic viability.
Table of Ore Types Best Suited For Leaching
| Ore Type | Typical Minerals | Leaching Method | Reason for Suitability |
|---|---|---|---|
| Oxide Ores | Gold oxide ore, Malachite, Azurite | Cyanidation (gold CIP/ CIL), Dilute acid heap leaching/agitation leaching (copper) | Porous structure; metals exist in readily soluble forms |
| Secondary Sulfide Ores | Chalcocite, Covellite | Heap leaching, Bacterial oxidation | Relatively easier to oxidize; more treatable than primary sulfide ores |
| Carbonate-Bearing Ores | Calcite, Dolomite-associated ores | Alkaline leaching or decarbonation pretreatment | Acid is easily consumed by carbonates; the alkaline route is more economical |
| Micro-fine Disseminated Gold Ores | Carlin-type gold ore | Oxidative pretreatment + heap leaching or Carbon-in-Pulp extraction | Gold is encapsulated; the mineral structure must be broken first |
| Uranium Ores | Pitchblende, Uraninite | Acid leaching or alkaline leaching, In-situ leaching (ISL) | Uranium readily dissolves in acid/alkaline solutions; gangue type determines the leaching route |
Conclusion
Leaching is not suitable for all types of ore. For instance, oxidized gold or copper ores—which are structurally porous due to weathering and contain easily soluble metals—are excellent choices for leaching. Secondary sulfide ores can be processed using bacterial oxidative leaching, while finely disseminated gold ores require pre-treatment. Matching the right leaching method to the specific ore type & characteristics is essential to balancing economic viability with high recovery rates.
A detailed assessment of ore characteristics is mandatory before selecting a leaching process. Need a precise analysis of gold or copper leaching options? Contact the experts at JXSC for a customized mineral processing solution and equipment configuration tailored to your needs!
