Is your three-disc magnetic separator suddenly not working? As a core piece of equipment in the mineral processing industry for separating weakly magnetic minerals, a shutdown of a three-disc magnetic separator not only affects production schedules but can also incur hundreds of thousands of yuan in additional maintenance costs. However, many operators are often at a loss when faced with electrical system malfunctions, mechanical component wear, or uneven material distribution during mineral processing. They can only blindly replace parts or wait for maintenance personnel, wasting a lot of time. In this three-disc magnetic separators troubleshooting guide, we will analyze in detail the three most common types of malfunctions, including their fault symptoms, root causes, emergency response fix, and long-term maintenance recommendations, helping you quickly restore equipment performance and minimize production losses!
The stable operation of a 3-disc dry magnetic separator relies on accurate diagnosis and rapid repair of faults in three main categories: electrical, mechanical, and mineral processing. Mastering the 15 common fault phenomena, causes, and corresponding fix solutions outlined in this article can minimize downtime losses and ensure efficient production.

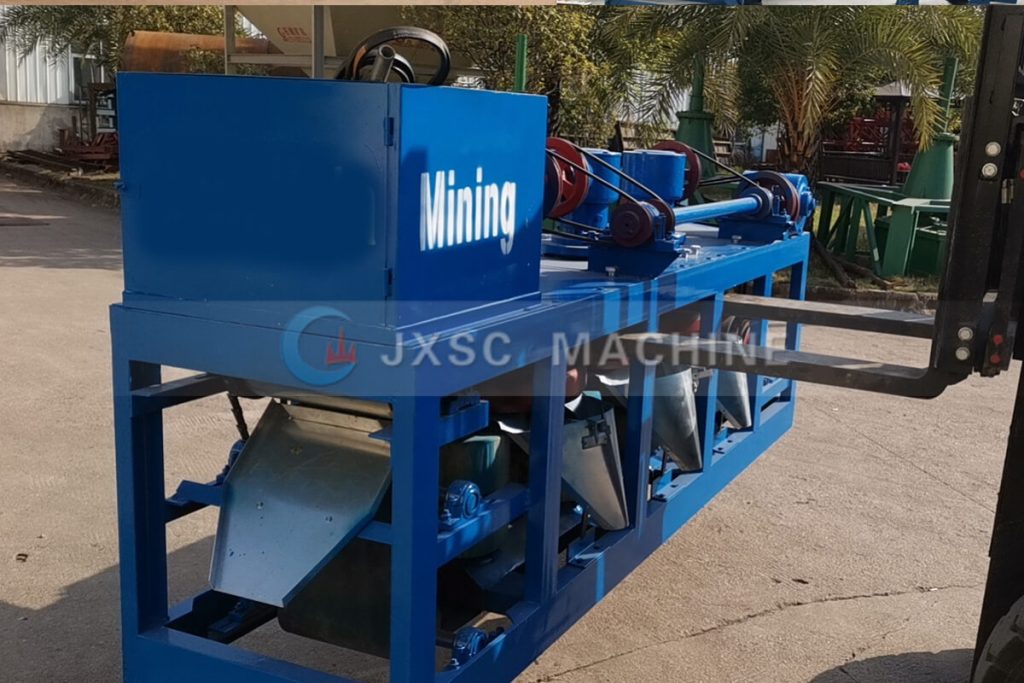

What is a 3-disc magnetic separator?
The 3-disc magnetic separator is a dry electromagnetic separation equipment specifically designed for processing weakly magnetic minerals with a particle size of less than 2-3 mm. It uses three independent magnetic disks to generate magnetic fields of varying intensities, separating mixed ores step-by-step according to their magnetic differences, completing the separation of multiple minerals in a single operation. It is widely used for the dry separation of weakly magnetic minerals such as ilmenite, monazite, tungsten ore, tin ore, tantalum-niobium ore, and iron ore, playing a core separation role in mineral processing production lines. Whether for rare metal recovery or non-metallic mineral purification, the three-disc magnetic separator achieves efficient separation. Common models include the 3PC-500 and 3PC-600, with processing capacities ranging from 100-500 kg/h, meeting the production needs of mineral processing plants of different sizes.

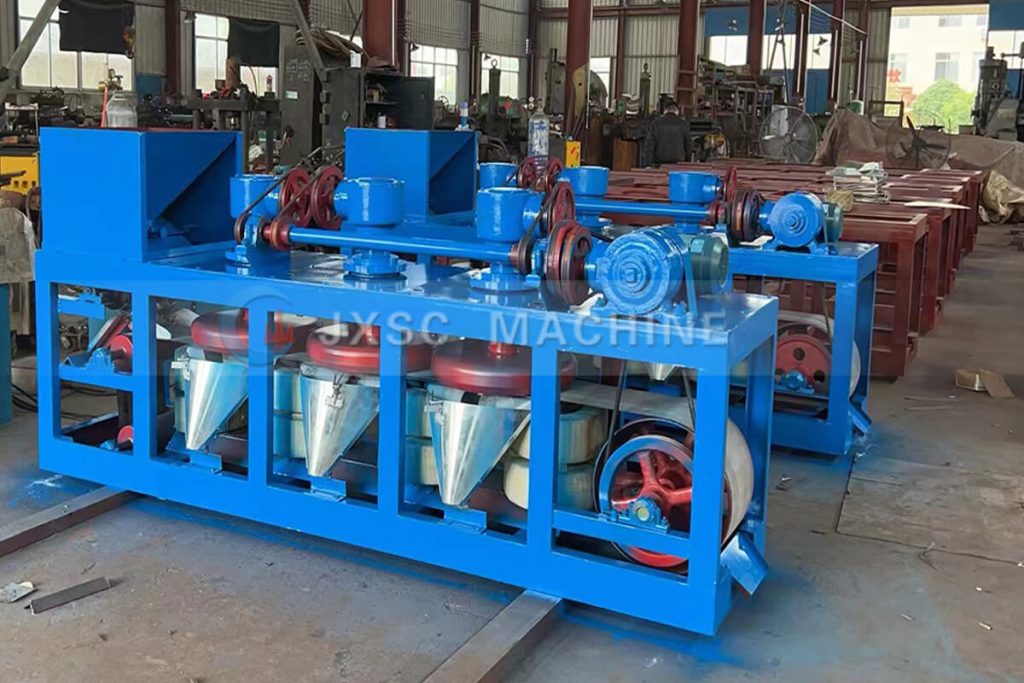

Working Principle
The 3-disc magnetic separator utilizes permanent magnets or electromagnets to generate a high-intensity magnetic field. When minerals pass through the three rotating magnetic disks, magnetic particles are attracted to the disk surface, while non-magnetic materials fall freely. The three disks are arranged in a stepped manner, and the magnetic field strength of each disk can be adjusted independently. Operators can set the most suitable magnetic field parameters for each disk based on the magnetic differences between different minerals in the ore, achieving step-by-step separation from strong to weak magnetic fields.
3 Major Types of 3-Disc Magnetic Separator Troubleshooting Checklist
1. Detailed Explanation of 8 Types of Electrical Troubleshooting
Fault Phenomenon | Causes | Fix Solutions |
Abnormal voltage/current readings | 1. Poor power supply quality | 1. Inspect and coordinate resolution |
Electric leakage | Damaged wire contacting the frame | Inspect and eliminate |
Contactor self-stops or fails to close | 1. Supply voltage too low | 1. Increase supply voltage |
Maximum DC current reduced by half | One rectifier diode open circuit | Replace |
Blown fuse | 1. Rectifier diode short circuit | 1. Replace |
Magnetic field direction disordered | 1. Loose or broken coil connection | 1. Tighten connections |
Voltage regulator sparks | 1. Partial coil burnout | 1. Repair or replace |
Indicator light does not illuminate | 1. Power supply failure | 1. Locate and repair |
Fault Symptoms:
Common 3-disc magnetic separator troubleshooting in electrical system faults includes abnormal voltage and current, leakage current, contactor failure to engage, halved DC, blown fuses, chaotic magnetic force direction, sparking from the voltage regulator, and indicator lights not illuminating. These problems directly affect the normal operation of equipment and require timely troubleshooting and handling.
Causes:
Unstable power supply quality, open circuit or breakdown of the rectifier diode, loose or burnt coil connectors, damaged wires leading to grounding, messy wiring, and damaged brushes are the main causes of electrical faults, involving multiple components of the power supply, rectification, and control circuits.
Fix Solution:
Improve power supply quality, replace damaged rectifier diodes and coils, tighten wiring terminals and verify wiring, repair damaged wire insulation, smooth the sliding surface of the voltage regulator, replace brushes and indicator lights, and ensure the safe and stable operation of the electrical system.

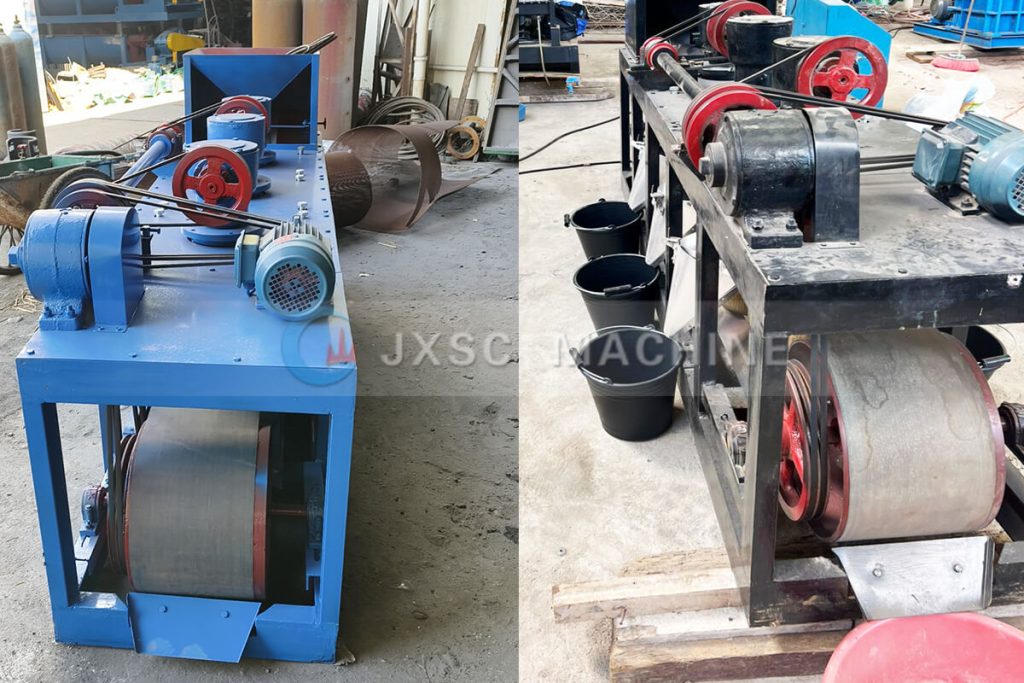

2. Detailed Explanation of 3 Types of Mechanical Troubleshooting
Fault Phenomenon | Cause | Fix Solutions |
Conveyor belt or drive belt slipping | Belt not properly tensioned | Adjust the tensioning screw |
Conveyor belt running off-center | Conveyor pulley axes are not parallel | Adjust the tensioning screw |
Gearbox damaged | Bearing or gear damaged | Inspect, repair, or replace |
Fault Symptoms:
Common 3-disc magnetic separator troubleshooting in mechanical system includes conveyor belt and drive belt slippage, conveyor belt misalignment, and reducer damage. These problems lead to decreased conveying efficiency and, in severe cases, force equipment shutdown for maintenance.
Causes:
Unsprung belts cause slippage, misalignment of the conveyor pulley axes causes misalignment, and long-term wear of bearings or gears leads to reducer damage. These mechanical problems are often caused by improper installation or lack of maintenance over a long period.
Fix Solutions:
Adjust the pushrod screws to tighten the belt and correct the conveyor pulley axle to restore belt alignment. For reducer damage, disassemble the machine to inspect bearings and gears and replace worn parts promptly.
3. Detailed Explanation of 4 Types of Mineral Processing Troubleshooting
Fault Phenomenon | Cause | Fix Solutions |
Uneven material distribution on the conveyor belt | 1. Spout spreader plate not adjusted properly | 1. Adjust the spreader plate |
Unwanted minerals carried out | 1. Feed rate too high | 1. Reduce feed rate |
Output too high | Feed rate too high | Adjust feed control valve |
Output too low | Feed rate too low | Adjust feed control valve |
Fault Symptoms:
Common 3-disc magnetic separator troubleshooting in mineral processing systems includes uneven material distribution, miscarrying of minerals, and excessively high or low output. These problems directly affect sorting quality and production efficiency.
Causes:
Improperly adjusted material distribution plate, inappropriate output and particle size, unsuitable disk gap or magnetic field strength, mineral particle contamination and failure to dissociate intergrowths, and improper feed rate control.
Fix Solutions:
Adjust the material distribution plate; control the feed rate and particle size; increase the disk height or decrease the magnetic field; clean the mineral particles and break up intergrowths; and adjust the feed and discharge control valves.
Preventive 3-Disc Magnetic Separator Maintenance Tips
(1) Daily Checklist:
Before starting the machine each day, operators should check that the voltage and current are within the normal range to ensure a stable power supply. They should also observe the conveyor belt tension and adjust the push rod screws if slippage is detected. The distribution of material on the conveyor belt should also be checked for uniformity; if there is uneven material distribution, the material distribution plate should be adjusted to ensure optimal sorting performance.
(2) Weekly Maintenance Points:
Every week, the machine should be stopped to clean the surface of the three magnetic disks to remove any residual mineral powder, preventing dust accumulation on the magnetic poles from affecting the magnetic field strength. All wiring connections should also be checked for looseness or oxidation to ensure reliable electrical connections. Lubricate the transmission bearings and reducers, as well as other moving parts, to reduce mechanical wear.
(3) Monthly Maintenance Focus:
Monthly, the rectifier tubes in the rectifier bridge should be thoroughly inspected for proper function. Any open circuits or breakdowns should be replaced immediately. The actual magnetic field strength of each magnetic disk should be tested using a gaussmeter to ensure it reaches the set value. The reducer oil level and quality should also be checked; replenish or replace the lubricating oil if insufficient.
Conclusion
3-disc magnetic separator troubleshooting is crucial for ensuring stable equipment operation. Understanding the types of three-disc magnetic separator malfunctions outlined in this article—electrical, mechanical, and mineral processing system malfunctions—along with their corresponding causes and troubleshooting solutions, will help operators quickly fix problems and minimize downtime. Furthermore, regular maintenance of the three-disc magnetic separator can effectively extend its lifespan. If you encounter more complex magnetic separator troubleshooting challenges in actual production, or require customized magnetic separator equipment selection & maintenance plans recommendations based on specific ore properties, please feel free to contact us for professional technical support and services.
