In antimony processing, which process, flotation or gravity separation, is the best choice? As a vital strategic metal, antimony is widely used in applications such as flame retardants and battery alloys; however, the selection of an appropriate beneficiation process directly impacts both costs and profitability. In practice, mineral processing plants often face a dilemma: while flotation is frequently favored for its ability to significantly improve the recovery rate of fine-grained ore, gravity separation is highly valued for its low operating and maintenance costs. Each method offers distinct advantages. This article provides a systematic analysis of the operating mechanisms, equipment requirements, scopes of application, and the respective pros and cons of both processes, offering a reliable basis for selecting the ideal processing solution for your antimony project.
Flotation and gravity separation are the two core technologies for antimony ore processing. Which one should be chosen? Flotation is suitable for fine-grained sulfide antimony ores but entails higher costs; gravity separation is more economical and efficient for coarse-grained antimony ores, though it offers limited recovery rates. Neither method is inherently superior; the choice depends primarily on the ore’s grain size distribution and its specific mineralogical characteristics.
Antimony Flotation Process
(1) Principle

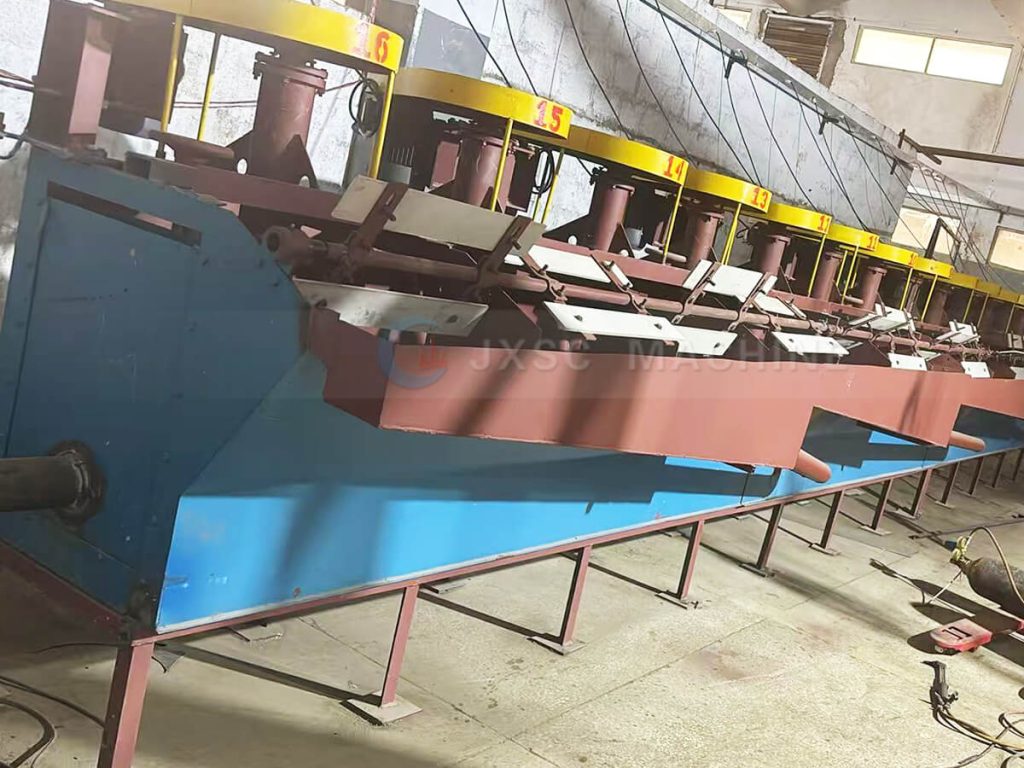

The flotation machine relies on the chemical properties of mineral surfaces to achieve separation. Stibnite (antimony sulfide) is naturally hydrophobic; in an aerated and agitated mineral pulp, its particles readily adhere to the surfaces of air bubbles. As these bubbles rise to the liquid surface, they form a mineralized froth that effectively separates stibnite from gangue minerals.
(2) Key Reagents
Flotation requires a carefully formulated system of chemical reagents. Lead nitrate is typically added first as an activator to “sensitize” the surface of the stibnite, making it more receptive to the collector. Butyl xanthate serves as the primary collector, acting as a bridge between the mineral particles and the air bubbles. Pine oil (often referred to as “No. 2 oil”) functions as a frother, stabilizing the bubbles and keeping them small, which ensures they can securely support the rising mineral particles.
(3) Advantages
√ Stibnite is relatively soft and easily produces a large amount of fine mud and fine particles during grinding, but it can achieve a high recovery rate in flotation.
√ By adjusting the combination of reagents, the flotation process offers the flexibility to handle complex polymetallic ores, enabling the selective suppression of impurities such as arsenic and iron.
(4) Limitations
- The cost of reagents and the level of precision required for process control are significantly higher in flotation than in gravity separation.
- Even minor deviations in parameters such as pulp density, pH value, or agitation intensity can severely compromise recovery performance.
- For highly oxidized ores or coarse-grained antimony ores, direct flotation is often ineffective and presents significant challenges for achieving high recovery.
(5) Applicable Ore Types
Antimony flotation is particularly well-suited for sulfide ores, simple stibnite ores, and complex, arsenic-bearing polymetallic ores. It yields a concentrate of consistent quality with higher recovery rates than gravity separation, making it especially appropriate for the refined processing of high-grade antimony ores.
Antimony Gravity Separation Process
(1) Principle
The effectiveness of gravity separation depends on the density difference between the target minerals and the gangue (waste rock). Stibnite has a density of approximately 4.50–4.65 g/cm³, whereas common gangue minerals like quartz and calcite have densities of only 2.50–3.00 g/cm³. This significant density contrast allows minerals to rapidly stratify within a medium: heavy minerals settle to the bottom, while lighter gangue is washed away by the flow of water.
(2) Key Equipment

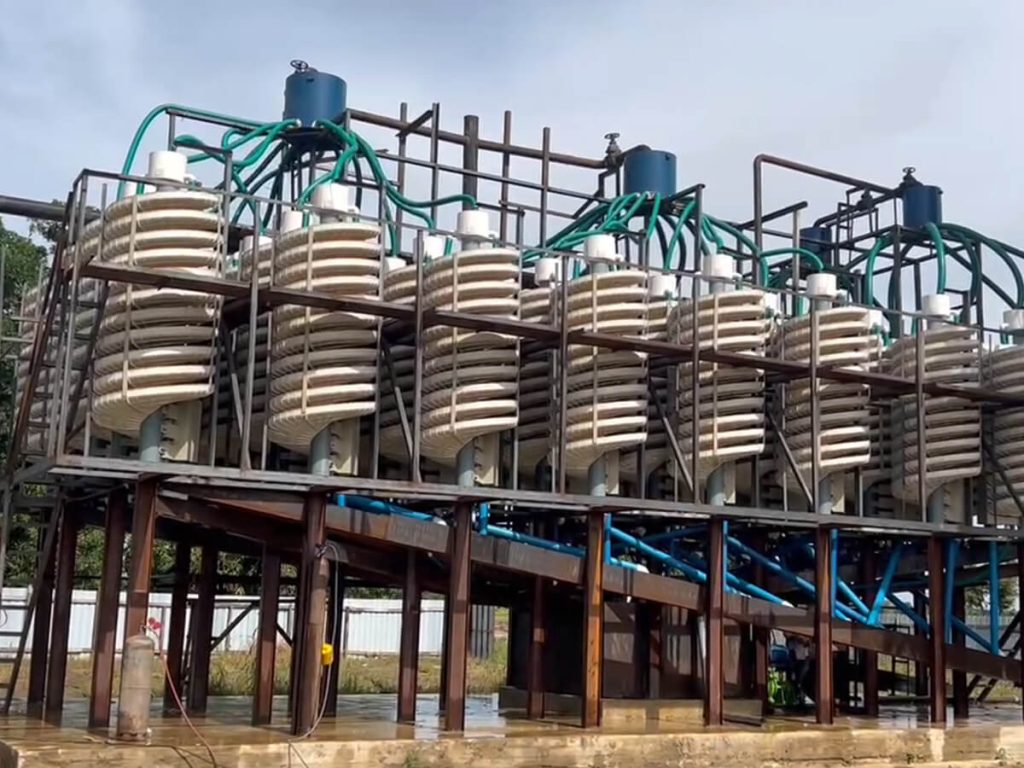

Gravity separation equipment offers various, complementary advantages. Jigs utilize pulsed water flow to process coarse-grained ore, delivering high efficiency and large throughput. Shaking tables employ reciprocating vibration combined with water washing to spread fine-grained minerals into distinct bands across the deck, facilitating their collection. Spiral chutes are characterized by their simple, non-powered design and are well-suited for the preliminary processing of medium- to fine-grained materials.
(3) Advantages
√ The primary appeal of gravity separation lies in its low cost and high adaptability. The equipment features a simple design and requires a lower initial investment; furthermore, it consumes significantly less energy than flotation, requires no chemical reagents, and imposes minimal burden on the environment.
√ It is more effective than flotation for processing oxidized antimony ores or ores with coarse-grained mineralization, making it particularly suitable for small- to medium-scale mining operations.
√ To this day, gravity separation remains an indispensable, foundational step in antimony ore processing—most notably as a pre-concentration stage before flotation.
(4) Limitations
- The main drawback of gravity separation is its relatively low recovery rate for fine-grained ore, as well as significant fluctuations in concentrate grade.
- When stibnite is ground into very fine particles—or even reduced to a “slimy” state—the density-based differences between particles are masked by the effects of particle size.
- This causes stratification efficiency to plummet, leading to the loss of a substantial amount of fine-grained antimony into the tailings.
- Additionally, gravity separation is largely ineffective for calcium-bearing antimonate minerals, which possess densities similar to those of the associated gangue.
(5) Applicable Ore Types
Gravity separation is particularly well-suited for antimony ores with relatively coarse dissemination, such as sulfide antimony ores, native antimony, quartz-vein-type antimony ores, and highly oxidized antimony ores. In industrial mineral processing plants, it is frequently employed to treat coarse-grained ores or serves as a pre-concentration step prior to flotation. In addition, most concentrators also adopt a combined process of “gravity pre-enrichment + flotation fine cleaning“, which mainly involves first removing tailings to improve quality, and then using flotation to complete fine recovery; antimony gravity separation is especially suitable for processing low-grade coarse-grained ore.

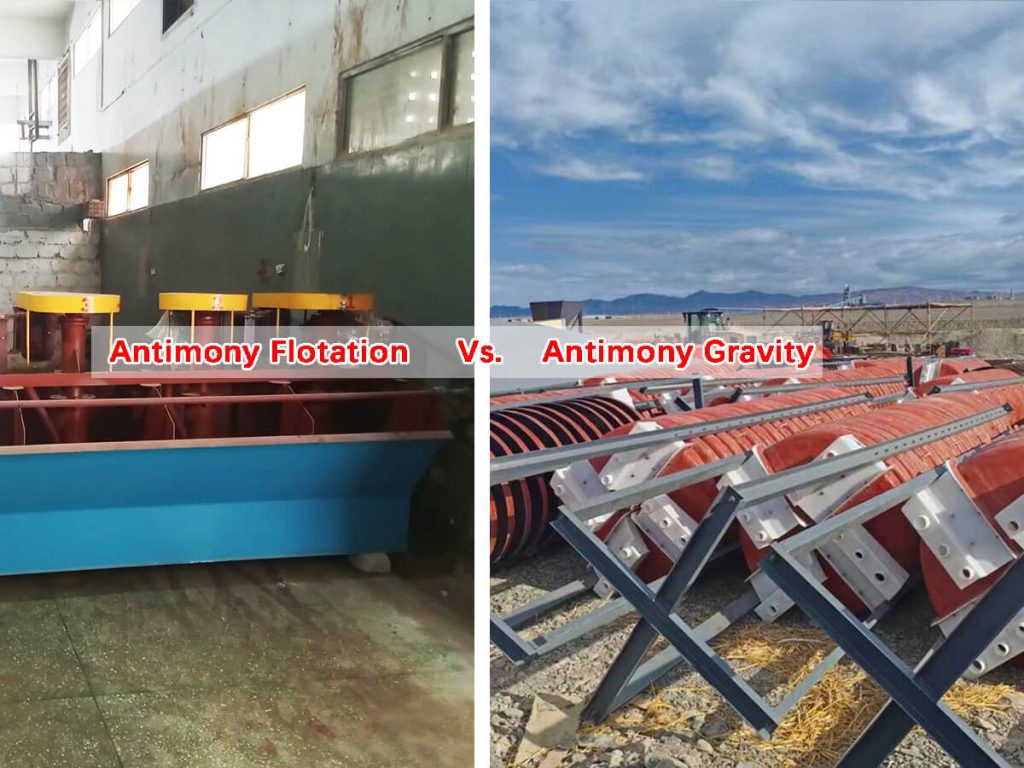

Antimony Flotation Vs. Gravity Separation Process
Comparison Dimension | Flotation | Gravity Separation |
Suitable Ore Types | Fine-grained antimony sulfide ore, stibnite, arsenic-bearing complex polymetallic ore | Coarse-grained antimony ore, native antimony ore, antimony oxide ore |
Recovery Rate | 85%–95%, with significant advantage on fine-grained ore | 70%–85%, stable performance on coarse-grained fraction |
Concentrate Grade | High | Medium |
Investment & Operating Cost | Higher investment in equipment and reagents | Simple equipment, lower investment and operating cost |
Equipment & Energy Consumption | Ball mill, flotation machine; high energy and reagent consumption | Jig, shaking table, spiral chute; low energy consumption |
Environmental Impact | Involves chemical reagents, requires wastewater treatment | Almost no reagents, low environmental burden |
How to Scientifically Select the Best Process for Antimony Ore?
Step 1: Process Mineralogical Analysis of the Ore
Do not rush to finalize a processing scheme; first, submit ore samples for testing. Determine the mineral composition and the mode of occurrence (dissemination characteristics) of the minerals. Laboratory-scale comparative tests—such as flotation versus gravity separation—are far more reliable than making decisions based on guesswork. Once you have the data, the right path forward will become clear.
Step 2: Evaluate Based on Grade, Dissemination Size, and Associated Elements
The inherent properties of the ore dictate the processing approach. Ores with coarse-grained minerals that are easy to process can often be handled via gravity separation, whereas fine-grained, complex ores require flotation. If the ore contains associated impurities like arsenic or iron, precise reagent control during flotation becomes essential. Understand the ore first, then determine the processing method.
Step 3: Consider Return on Investment (ROI)
Equipment, reagents, energy consumption, and labor—all of these represent costs. Large-scale operations often focus on high-grade ore, where the value added through flotation helps offset operational expenses. Conversely, smaller processing plants may favor gravity separation due to its lower capital and operational requirements.
Conclusion
There is no absolute superiority of one method over the other; it is simply a matter of which is best suited to your specific ore. Gravity separation is known for its low cost and is well-suited for the pre-enrichment of coarse-grained ore, while flotation excels in achieving high recovery rates, making it the preferred choice for fine-grained, complex ores. Whether it is flotation or gravity separation, the selection of the best antimony ore beneficiation process requires comprehensive consideration of ore characteristics, economic benefits and technical feasibility. If you are currently in the process of selecting equipment for antimony ore processing, please feel free to contact us; we will provide a tailored beneficiation solution based on the specific characteristics of your ore.
