Iron ore beneficiation can obtain ideal iron concentrate powder mainly by removing impurities and improving the quality of the final product. However, ball mills play a vital role in iron ore beneficiation by grinding and mixing the ore particles to release their valuable minerals. Their high efficiency and reliable performance make them a must-have piece of equipment in the mining industry. There are many types of iron ore; the common ones include hematite, magnetite, limonite, and siderite. Depending on the properties of iron ore, the type of ball mill selected is also different. Below, we will introduce several common iron ore ball mills and how to choose them.

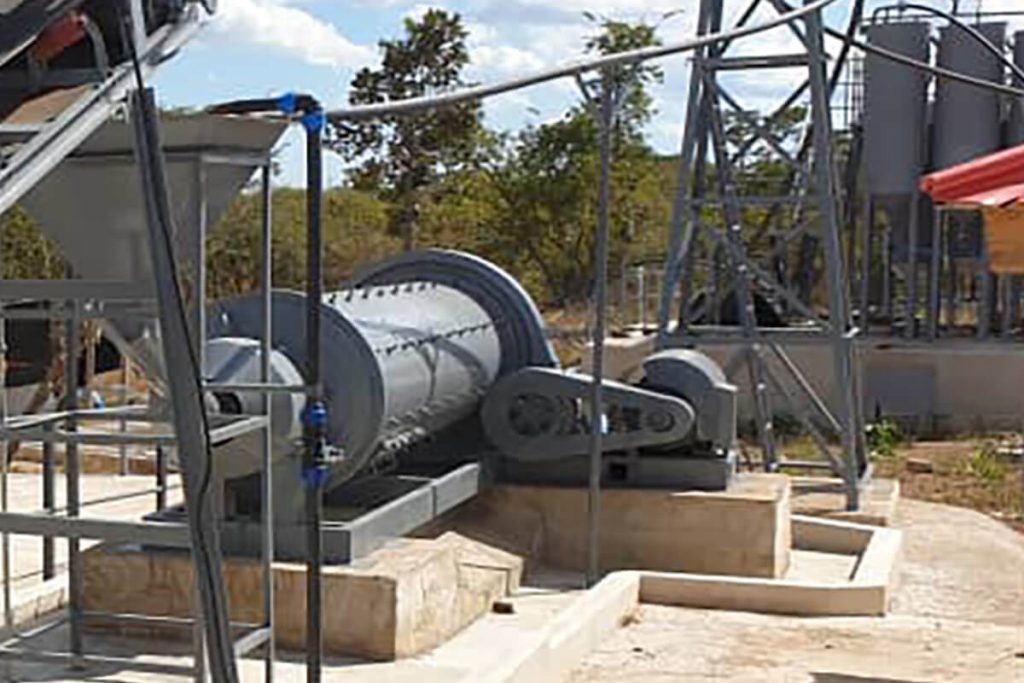

Common types of ball mills
Over the years, the mineral processing industry has utilized various types of ball mills to effectively grind and extract valuable minerals from ores. Some commonly used ball mill types include overflow ball mills, grid ball mills, and rod mills. Each type offers different advantages depending on the specific requirements of the mineral processing operation.

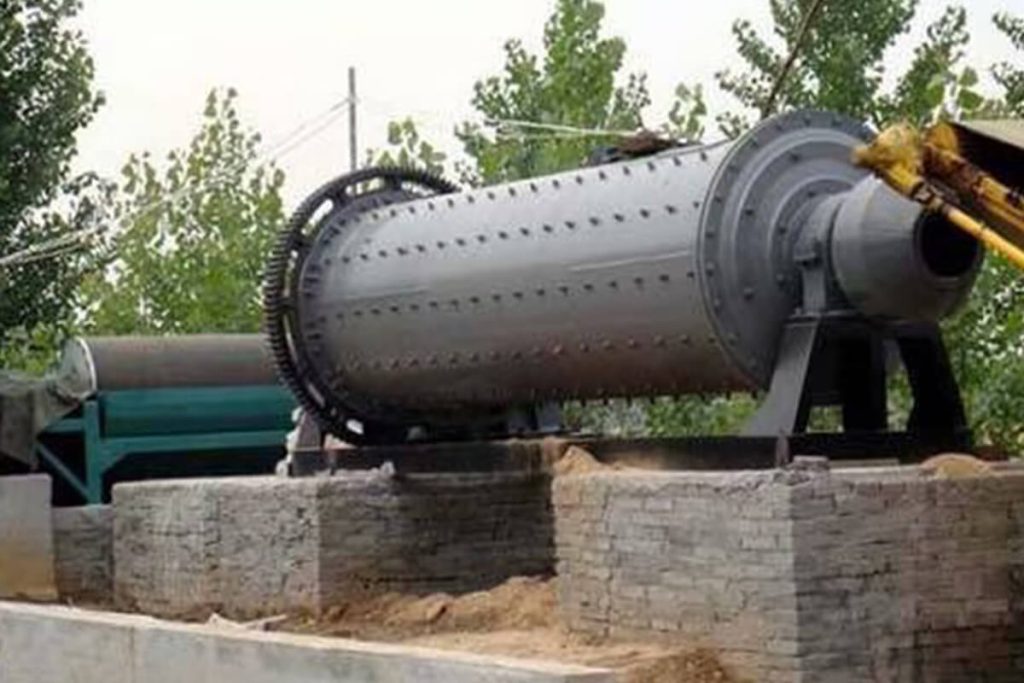

1. Overflow ball mill
Overflow ball mills are famous for their versatility and efficiency in mineral processing. Overflow ball mills allow materials to flow continuously out of the mill. This design prevents over-grinding of particles and ensures optimal grinding efficiency. The continuous discharge capability of this type of mill makes it ideal for processing materials with varying levels of grindability. In contrast, it is suitable for secondary grinding tasks. Additionally, the design of an overflow ball mill promotes better mixing and homogenization of materials, resulting in a more uniform particle size distribution. Typically used in primary grinding applications, it can handle large tonnages of material due to its high-capacity design.
2. Grate-Discharge Ball Mill
The grate-discharge ball mill is a versatile, high-efficiency grinding machine used across various industries, including mining, construction, and ceramics. It derives its name from the grate plate installed at the discharge end, which facilitates forced material discharge. Primarily used for wet grinding, it is frequently paired with a spiral classifier to form a closed-circuit grinding and classification system. A key feature is its ability to control particle size distribution through the grate plate design, enabling precise grinding and classification of materials. In the mineral processing industry, given the product’s particle size characteristics, it is typically employed in the primary (coarse) grinding stage. The grate design prevents excessive material accumulation within the mill, thereby minimizing over-grinding. In addition to its grinding capabilities, the grate-discharge ball mill offers energy-saving benefits by reducing power consumption during operation, which lowers overall operating costs.
3. Rod Mill
The rod mill features a long cylindrical shell, typically with a length-to-diameter ratio of 1.5 to 2.0. Unlike traditional ball mills, rod mills utilize long steel rods as the grinding medium; specifically designed for processing coarse feed, they offer a larger surface area, thereby enhancing the efficiency of crushing and grinding operations. They are primarily used for grinding brittle ores with a Mohs hardness of 5.5 to 12 in order to liberate valuable minerals from the surrounding rock. For instance, rod mills are commonly employed in gravity or magnetic separation processes for rare metals such as tungsten and tin ores. In the construction industry, they are used to process raw materials, such as limestone or gravel, into fine sand or aggregates for concrete production.
Understanding the characteristics and differences of these types of grinding equipment is crucial for optimizing operational efficiency and achieving desired outcomes in mineral extraction. Each type of ball mill has its unique advantages and applications, so we need to select the appropriate iron ore ball mill based on the mineral conditions and requirements.

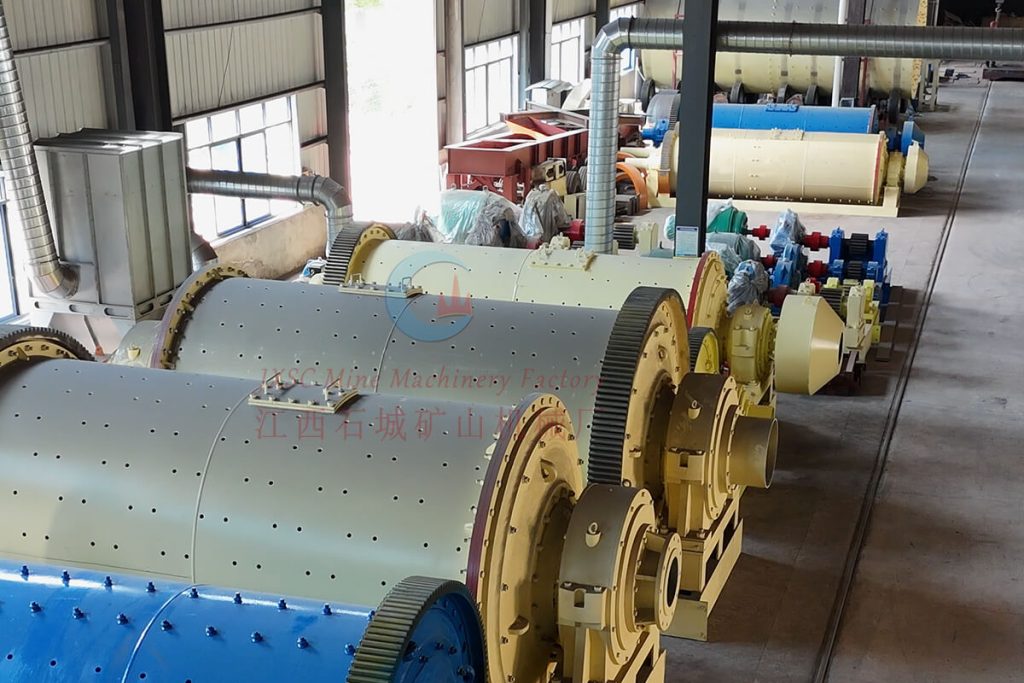

How to choose an iron ore ball mill?
When choosing a suitable iron ore ball mill, we need to consider various factors, such as ore type, hardness, moisture content, particle size, processing capacity, and budget required by the customer. The following are four common iron ores. How should we choose a ball mill?
(1) Hematite Ball Mill
Hematite is a versatile mineral known for its deep red color and metallic luster, making it a popular choice for jewelry and pigments. Its Mohs hardness range is 5.5 to 6.5. For grinding hematite, ball mill selection is critical to achieving the final product’s desired particle size and quality. A key consideration when selecting a ball mill for grinding hematite is the type of grinding media used. Ceramic balls are often favored for their high density and wear resistance, allowing for efficient grinding and minimal contamination.
Another factor to consider is the speed of the ball mill. High-speed ball mills are ideal for fine grinding and producing uniform particles, while slower speeds may be better for coarse hematite grinding. In hematite beneficiation, a grid-type ball mill is usually selected as the first stage of grinding, and an overflow ball mill is used as the second stage.
(2) Magnetite ball mill
Magnetite is a naturally occurring mineral that possesses magnetic properties, making it highly valuable in a variety of industrial applications. It is iron-black, brittle, with a hardness of 5.5-6.5, and a relative density of 4.9-5.2. It has strong magnetism, black streaks, and a semi-metallic luster. It belongs to the equiaxed crystal system, and the crystal is a rhombohedral dodecahedron or octahedron.
The first stage should be designed for coarse grinding to ensure effective particle size reduction before entering the second stage for fine grinding. In a mineral processing plant, an energy-saving grid ball mill is generally used for the first stage of grinding, so that the fineness reaches -200 mesh, accounting for 67%, and it is combined with spiral classification to form a grinding and classification system. The second stage of grinding uses a wet overflow ball mill, which, together with the cyclone, forms a grinding and classification system. At the same time, screening can also be used to control particle size. The specific needs are determined according to the properties of magnetite ore and the scale of processing.
(3) Limonite ball mill
Limonite, also known as iron ore or brown hematite, is a mineral that belongs to the oxides and hydroxides. One of its distinguishing characteristics is its earthy sheen and yellowish-brown color, similar to the appearance of rust. The high iron oxide content makes it an essential source for iron ore extraction. It usually forms in lumps or fibers and has a hardness of 4 to 5 on the Mohs scale. Despite being relatively soft compared to other minerals, limonite exhibits impressive stability and can withstand weathering processes over time. Sometimes, the phosphate content of the ore is high, making it difficult to sort. In limonite beneficiation, a three-stage grinding process is usually used: the first stage is a grid-type ball mill with a grinding fineness of -200, accounting for 60%; the second and third stages are overflow-type ball mills.
(4) Siderite ball mill
Siderite is a metallic mineral whose main component is ferrous carbonate and is mainly used to extract iron. The crystal structure is usually spherical, dense, and massive, etc., and the color is generally yellow-white or off-white. After weathering, siderite sometimes turns brown or brown-black.
Generally, staged grinding is used. The first stage of grinding uses a grid-type ball mill, the second stage of grinding uses an energy-saving overflow ball mill, and the third stage of grinding can use an overflow ball mill. The specific decision should be based on the properties of siderite ore and its processing requirements.
Ball Mill Selection Guide For Iron Ore Type
| Iron Ore Type | Hardness | Magnetism | Recommended Mill | Grinding Mode | Fineness (-200 mesh) |
|---|---|---|---|---|---|
| Magnetite | High | Strong | Grid / Overflow | Wet | 65%–75% |
| Hematite | Med-High | Weak | Overflow | Wet | 75%–90% |
| Limonite | Low | Weak | Overflow | Wet | 70%–85% |
| Siderite | Medium | Weak | Grid / Overflow | Wet / Dry | 65%–80% |
Conclusion
Ball mills can be categorized into grid-type and overflow-type models. Grid-type ball mills feature forced discharge to minimize over-grinding, making them suitable for coarse grinding, whereas overflow-type mills produce a finer product, making them ideal for fine grinding. Selecting the best iron ore ball mill requires precise matching based on the specific physical properties of the ore.
For instance, magnetite is best processed using a wet grid-type mill; hematite requires fine grinding in an overflow-type mill followed by flotation; limonite is prone to slime formation, necessitating strict control of slurry concentration; and siderite is best suited for staged grinding to prevent excessive pulverization. When selecting equipment, priority should be given to calculating the comprehensive electricity consumption per ton of ore, feed particle size, and liner material, rather than focusing solely on the unit price of the equipment. Contact us to obtain the most suitable ball mill solution and make the optimal decision.
