Vibration Gold Washing Plant
Vibration gold washing plant (vibrating screen with sluice box), also known as vibration screen gold separation machine, vibration screen chute gold wash machine, vibrating screen gold separator, hydraulic vibration gold washing plant.
Application: This combination of integrated equipment is mainly used for small-scale placer/ alluvial gold screening, recovery, and gold panning process.

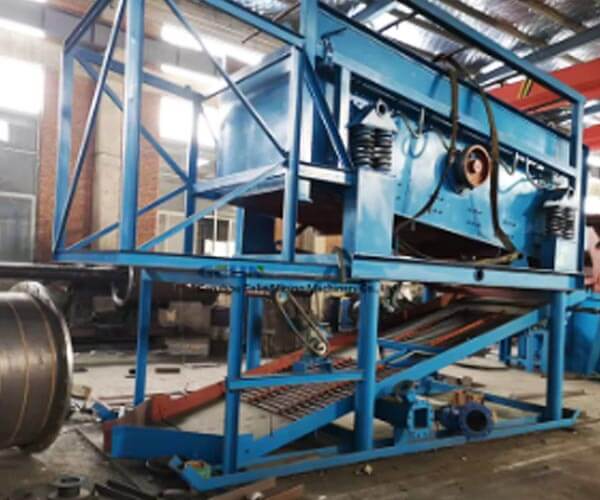

Products display
Introduction of Vibration Gold Washing Plant
Vibration gold washing Plant (vibrating screen with sluice box), also known as vibration screen gold separation machine, vibration screen chute gold wash machine, vibrating screen gold separator, hydraulic vibration gold washing plant.
This is a complete, integrated set of alluvial/ placer gold mining equipment. This combination of equipment is mainly used for small-scale gold ore screening, recovery, and gold panning plant. It mainly consists of hopper, vibrating screen, sluice boxs, water pump and other systems. It uses vibration to screen and wash the material on the surface of the screen, and then captures the gold in the ore through the sluice box. Vibration motors or hydraulic drives are optional, and the amount of water can also be adjusted by valves. In alluvial/placer gold beneficiation, vibration chutes, shaking tables, centrifugal concentrators and other equipment can also be equipped to operate together for processing gold.
Working principle Of Vibration Gold Washing Plant
The vibrating screen separates the large and small particles in the ore through vibration, and then feeds the screened ore into the sluice box for gravity separation, thereby achieving gold separation.
As the material is placed on the grid, high-pressure water is sprayed at the feed to clean all the material that falls into the hopper. Smaller particles fall onto the second layer of screens for separation, and after the second layer of screening, they flow into one to three independent adjustable sluice boxs for gold enrichment. As gravel and sediment flow through the vibrating screen, finer materials pass quickly, while larger, more valuable fragments are directed to the sluice box. As water flows through the ripples in the sluice, pockets are formed, capturing gold particles that would otherwise be lost in the standard washing process.
Structural characteristics
why choose JXSC Vibration Gold Washing Plant
features & Advantages
1. High screening efficiency, integrated design, easy to install and maintain, and remarkable gold selection effect;
2. It not only enhances the separation of heavier gold particles from lighter materials, but also optimizes water consumption;
3. A complete portable vibrating gold panning equipment that eliminates the need for additional screens and chutes;
4. Equipped with rubber gold recovery pad, specially designed for high-efficiency recovery of concentrate;
5. The gold pad can be quickly removed for easy rinsing and cleaning;
6. It has strong exciting force, low noise and reliable performance during operation;
7. The machine operates efficiently, saves time and effort, and extends its service life and maintenance costs;
8. It has the advantages of reliable structure, strong excitation force, high screening efficiency, low vibration noise and solidity;
9. The sluice box can adjust the front and rear angles and left and right balance to adapt to different terrains and operating conditions;
10. High degree of automation and intelligence, no environmental pollution, gold recovery exceeds 95%;
11. The use of hydraulic transmission system can reduce fuel consumption and reduce mechanical losses;
12. No belt or chain drive is required to drive the shaker weight, meaning fewer mechanical parts to break;
13. Based on customer requirements, JXSC supports customizable one-stop diamond wash plants, gold trommel washing plants and other integrated gold separation equipment.
