Which is better suited for your project: an impact crusher or a cone crusher? This seemingly simple choice can result in a difference of millions in terms of project budget, production efficiency, and long-term operating costs. Choosing the wrong equipment can lead to anything from production line stoppages and product rejection by concrete plants due to poor particle shape, to excessive wear on consumable parts and skyrocketing operating costs. Cone crushers are renowned for their “crushing” action on hard rock, whereas impact crushers leverage the principle of “free impact” to offer unique advantages in construction material recycling. This article cuts straight to the fundamental differences between the two, helping you make the right decision in the simplest way possible.
Cone crushers utilize compression to crush hard rock; they offer high capacity and a long service life, making them suitable for hard materials like granite and basalt. Impact crushers rely on high-speed impact to crush softer materials; they produce excellent particle shapes and require lower investment, making them ideal for limestone and construction waste recycling.

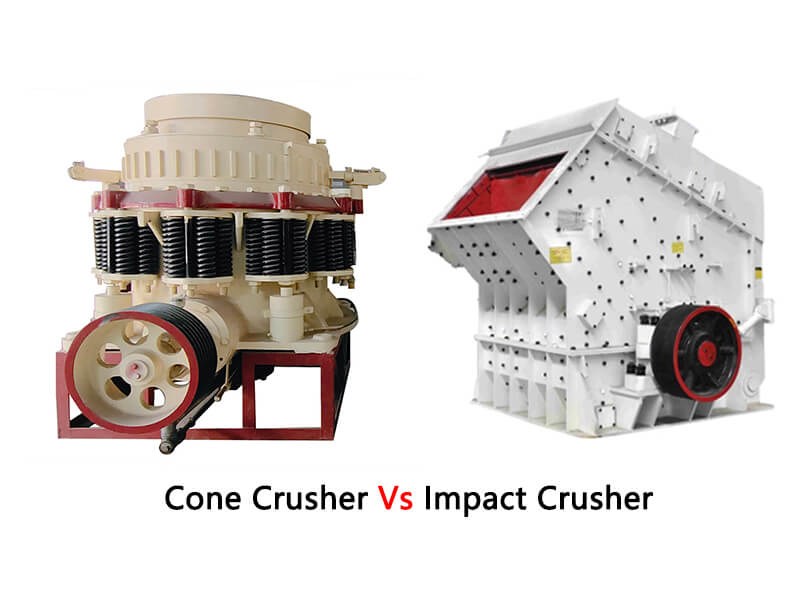

Cone Crusher vs. Impact Crushers: Key Differences
- Crushing Method: Cone crushers rely on compression between the mantle and concave liner, whereas impact crushers utilize high-speed rotor impacts, with the latter delivering a more direct impact force.
- Material Suitability: Cone crushers excel with ultra-hard rock, while impact crushers are capable of processing waste concrete with high clay content.
- Production Capacity: Cone crushers are suited for large-scale production lines; impact crushers offer convenient and flexible adjustment of output specifications.
- Product Quality: Impact crushers produce superior natural particle shapes, whereas cone crushers require a screening system to enhance product quality.
- Cost-Effectiveness: Cone crushers offer a lower total cost of ownership, while impact crushers are ideal for small-to-medium projects with limited budgets.
Comparison Dimension | Cone Crusher | Impact Crusher |
Working Principle / Crushing Method | Laminated crushing; compression + shearing to break rock | Stone-on-stone + stone-on-metal; high-speed impact to shape particles |
Applicable Material Hardness | Medium-to-high hardness hard rock (e.g., granite, basalt) | Medium-to-low hardness soft materials (limestone, coal gangue) and construction waste |
Output & Capacity | Up to 27–1,450 t/h per unit | Medium capacity (30–500 TPH), but flexible adjustment |
Finished Particle Shape | Slightly more flaky; requires closed-circuit screening/optimization | Cubical and well-shaped; more suitable for commercial concrete aggregates |
Wear & Maintenance Cost | Long wear-part service life | Frequent replacement of consumable parts |
Energy Consumption | Lower unit energy consumption | Higher unit energy consumption |
Price & Investment | Higher initial purchase cost, but economical in long-term operation | Lower equipment price, but higher wear-part expenditure |

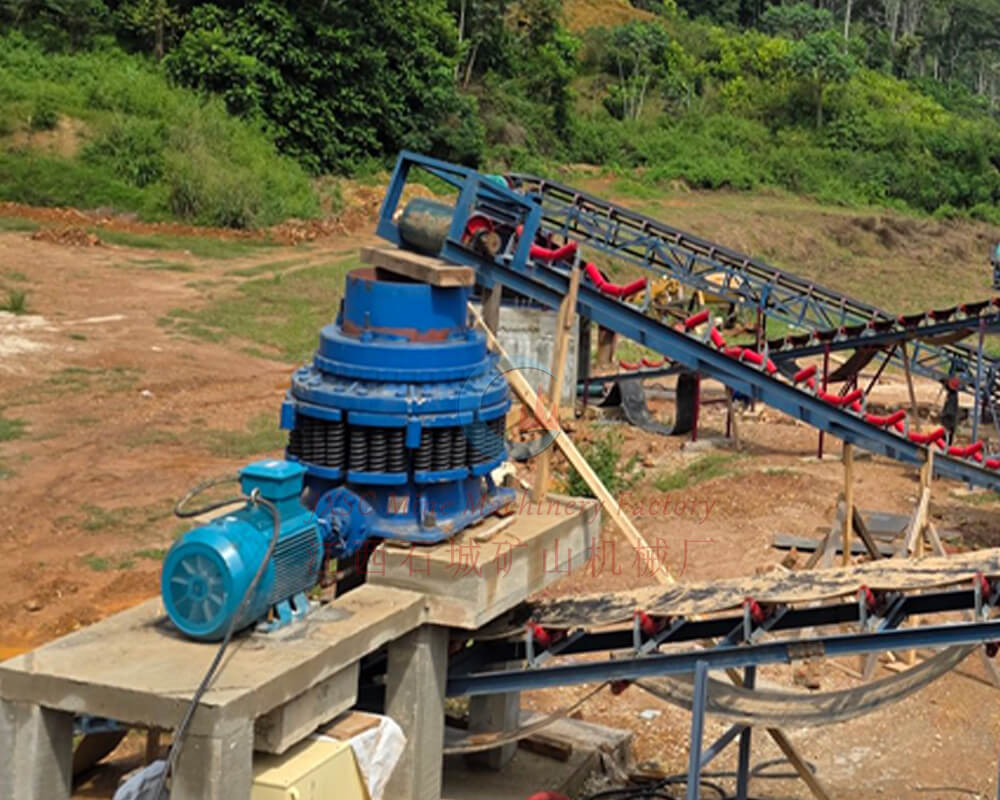

What is a cone crusher?
Working Principle:
An eccentric main shaft drives the moving cone to oscillate periodically within the stationary cone. Material trapped between them undergoes repeated compression, shearing, and grinding, achieving inter-particle crushing. This “compression-grinding” process ensures efficient energy utilization and stable, continuous operation, making it particularly adept at handling high-hardness materials.
Advantages:
Cone crushers offer high efficiency in processing hard rocks such as granite and basalt. The service life of liners and concave liners can extend to several months or longer, effectively reducing downtime for part replacements. It delivers higher capacity for the same equipment size—with large models exceeding an hourly output of 1,000 tons—while maintaining lower specific energy consumption.
Disadvantages:
As the process relies on compression, the product tends to contain a slightly higher proportion of flaky or elongated particles; applications with strict shape requirements often necessitate additional shaping equipment. Due to the integrated hydraulic automation system, the initial investment is relatively high, and maintenance requires a professional technical team.
Applications Of Cone Crusher:
The cone crusher is the preferred choice for hard rock crushing and is widely used in processing high-hardness rock, iron ore, and sand and gravel aggregates. It is particularly suitable for large-scale mining operations and the production of high-quality aggregates requiring high-intensity processing. In large-scale aggregate production lines, the cone crusher typically serves as the primary unit for secondary and tertiary crushing, working alongside jaw crushers and shaping equipment to ensure continuous, high-capacity output.

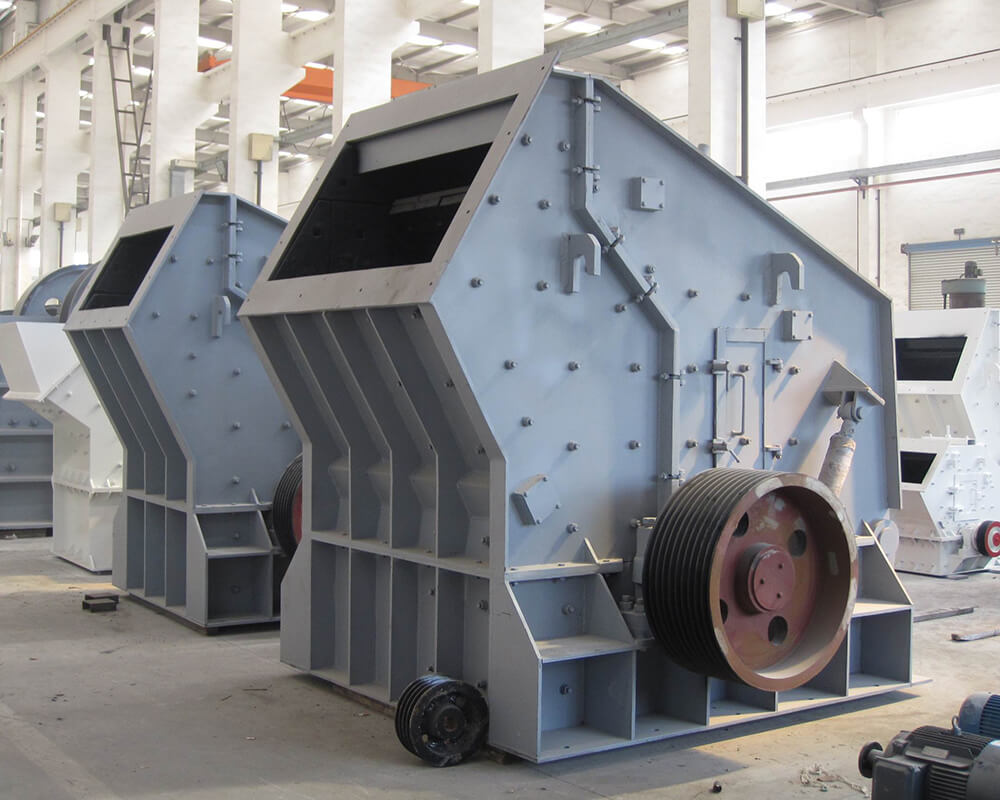

What is an impact crusher?
Working Principle:
The combined action of “impact and rebound” lies at the core of the impact crusher’s crushing mechanism. Upon entering the crushing chamber, material is struck violently by blow bars mounted on a high-speed rotating rotor and then hurled against impact plates. The material undergoes repeated cycles of impact and rebound between the blow bars and the impact plates until it is reduced to the desired particle size and discharged through the outlet.
Advantages:
The finished product from an impact crusher is cubical with well-defined angles and minimal needle-like or flaky particles; the crushing ratio can exceed 10:1. These machines feature a simple structure and low cost, and they offer inherent shaping capabilities, making them ideal for processing soft materials and recycled aggregates.
Disadvantages:
Processing hard materials causes severe wear on blow bars and impact plates, leading to frequent replacements and increased operating costs. High-speed rotor operation consumes significant electricity, and throughput is lower than that of cone crushers of the same size, making them less suitable for large-scale, continuous production.
Applications Of Impact Crusher:
Impact crushers are particularly well-suited for processing materials of low to medium hardness, such as limestone and calcite, yielding high-quality aggregates. They also excel in construction waste recycling, efficiently converting waste concrete into recycled aggregates. Additionally, they are used in asphalt mixing plants and dry-mix mortar production lines.
Cone Crushers vs. Impact Crushers: How to Choose?
1. Based on Material Hardness
Hardness is the primary criterion. When the material’s compressive strength is below 150 MPa, impact crushers offer high efficiency and low costs. For hard rocks such as granite and basalt (>150 MPa), cone crushers are the better choice; their wear parts last longer, making operation more economical.
2. Based on Product Particle Shape
Impact crushers produce cubic particles with excellent gradation, making them ideal for high-grade concrete and high-speed railway aggregate production. Cone crushers yield slightly inferior particle shapes; for projects with strict requirements, additional shaping equipment is often needed to meet standards.
3. Based on Capacity
For large-scale, continuous production, cone crushers are superior due to higher capacity, greater operational stability, and lower energy consumption per unit. Impact crushers have limited processing capacity, making them better suited for small-to-medium-scale or intermittent production scenarios.
4. Based on Total Investment & Cost
Impact crushers are suitable for short-term projects or limited budgets, as they require lower initial investment and offer a faster return on capital. For production lines intended to operate for over five years, cone crushers are recommended; despite the higher initial cost, the longer lifespan of wear parts results in a lower overall cost.
Conclusion
Cone crushers utilize compression to crush hard rock, offering high capacity and a long service life. Impact crushers use an impact mechanism for softer materials, deliver excellent particle shape, and require lower investment. Selecting the right crusher requires a comprehensive evaluation of material hardness, desired particle shape, production costs, and return on investment. There is no single “best” piece of crushing equipment—only the “most suitable” solution. Proper equipment matching ensures greater production efficiency and cost-effectiveness. If you remain unsure, don’t hesitate to contact us; JXSC engineers can provide personalized equipment selection advice and comprehensive turnkey solutions configurations tailored to your material characteristics and production goals.
