Have you ever wondered how low-grade copper ore extracted from mines is transformed, step by step, into high-grade copper concentrate? Copper process equipment plays an indispensable, core role in this process. As global copper ore grades continue to decline—dropping from 0.8% to below 0.5%—and demand for copper surges in the new energy, power, and electronics sectors, the scientific selection and rational configuration of equipment directly determine the recovery rate, grade, and production cost of the final copper concentrate. This article will take you on an in-depth analysis of the equipment list and selection points for the entire process from ore to concentrate, revealing the technological secrets behind efficient copper processing.
Copper process equipment includes core equipment such as crushers, ball mills, flotation machines, and thickeners, which are key links in the process of turning low-grade raw ore (oxidation, sulfidation, and mixing) into high-grade copper concentrate. Proper equipment selection and configuration can significantly enhance copper recovery rates and reduce operating costs.
Copper Ore Processing Chain: Overview of Key Steps
(1) Crushing and Screening
Raw ore undergoes primary crushing in a jaw crusher, followed by secondary and tertiary crushing in a hammer crusher (for small-to-medium scales) or a cone crusher (for large scales). Vibrating screens classify the material by particle size, preparing the feedstock for subsequent processes.
(2) Grinding and Classification
Ball mills grind the ore to the micron level. Hydrocyclones or spiral classifiers manage particle fineness, ensuring sufficient mineral liberation.
(3) Gravity Separation
Coarse-grained native copper and copper oxide ores undergo pre-enrichment using jigs or shaking tables, which exploit density differences. This method is suitable for specific ore types, such as oxide ores.
(4) Flotation
Flotation machines use chemical reagents to cause copper minerals to adhere to rising air bubbles while gangue settles at the bottom. A three-stage process—roughing, scavenging, and cleaning—significantly increases the concentrate grade.
(5) Concentrate Dewatering
Thickeners provide initial slurry concentration, followed by filters for deep dewatering to meet moisture specifications. Dryers provide final drying, ensuring the resulting concentrate is ready for direct transport and smelting.
Essential Copper Process Equipment List
1. Crushing and Screening Equipment
The ore’s Mohs hardness determines the selection of crushing equipment, while throughput specifications must align with production capacity requirements. Controlling the feed size for the grinding stage to within 15–20 mm helps reduce energy consumption in downstream copper processing equipment.
(1) Primary Crushing Equipment: Jaw crushers feature a simple structure, accommodating feed sizes up to 1,200 mm and producing an output of 10–360 mm. They are suitable for continuous operation in copper processing plants ranging from small to large scale.
(2) Secondary and Fine Crushing Equipment: Cone crushers are central to copper processing operations, offering high reduction ratios and producing particles with uniform shapes. Hammer crushers are suitable for medium-hard ores, though wear parts require periodic replacement.
(3) Screening equipment comes in two types—circular and linear—and is integrated into a three-stage, closed-circuit crushing process. Coarse particles retained on the screen are returned for further fine crushing, while undersized material meeting specifications proceeds to the grinding stage.
2. Grinding and Classification
(1) Grate-discharge ball mills feature rapid discharge and are suitable for coarse grinding stages. Overflow ball mills produce finer products—suitable for fine grinding applications where more than 80% of the material is finer than 200 mesh—and are widely used in various copper processing plants. Rod mills offer distinct advantages when processing ores with high clay content and consume less energy than ball mills
(2) Classification Equipment
Spiral classifiers are traditional and reliable; they are suitable for small-to-medium-sized copper processing plants and remain a mainstream choice for modern facilities. Hydrocyclone clusters have a small footprint and offer high classification efficiency, though they require stable feed pressure.
3. Gravity Separation
Gravity separation equipment achieves separation based on differences in mineral density. It allows for the early rejection of waste rock, thereby reducing the processing load on downstream copper processing equipment. For instance, jig machines are effective for treating coarse-grained copper ore, while shaking tables are suitable for fine-grained separation and can achieve high recovery rates. Spiral chutes, featuring a simple, non-powered design, are well-suited for the pre-concentration of low-grade copper ore.

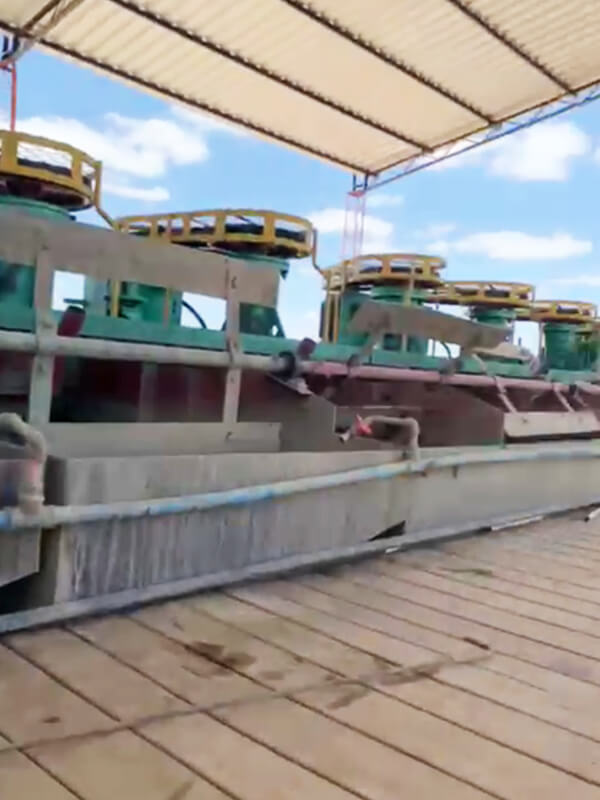

4. Flotation
The SF-type flotation machine features strong self-suction capabilities for pulp, making it suitable for independent use in roughing stages. A combined configuration of XCF and KYF models eliminates the need for intermediate froth pumps, thereby reducing energy consumption and maintenance costs. The JJF-type machine offers gentle agitation, resulting in superior recovery rates for fine-grained copper minerals.
Aerated flotation machines ensure uniform bubble distribution, while flotation columns generate micro-bubbles that achieve thorough contact with the pulp. When processing fine-grained copper ores, these flotation systems can achieve recovery rates exceeding 90%, representing a key upgrade path for copper flotation plants.
Flotation Process Solution
A flowsheet comprising one roughing, two scavenging, and two cleaning stages meets the requirements for standard ores, whereas one roughing, three scavenging, and three cleaning stages are suitable for refractory ores with fine mineral dissemination.
Additionally, preferential flotation allows for the sequential recovery of copper and sulfur, while bulk flotation is appropriate for ores where copper and zinc are intimately associated.
5. Thickening and Filtration Equipment
- High-efficiency thickener: Accelerates sedimentation through the addition of flocculants, increasing slurry concentration from 30% to 55%–65%. Features a compact center-drive structure, while the peripheral-drive version offers high torque and stable operation.
- Filter press: Disc vacuum filters are suitable for processing fine-grained materials, whereas plate-and-frame filter presses are ideal for high-concentration slurries.
- Dryer: Further dries the filtered concentrate, reducing moisture content to below 5%. This ensures the concentrate produced by the copper processing equipment does not cake during transport and meets smelter feed specifications.
6. Auxiliary Equipment
Agitation tank: Ensures thorough mixing and reaction between reagents and the slurry.
Pumps: Slurry pumps transport slurry between processing stages; froth pumps handle the transport of flotation froth.
Belt conveyor: Connects the entire line, establishing a continuous production process.
Configuration Schemes for Different Types of Copper Process Equipment
Copper Sulfide Ore (Chalcopyrite)
Recommended sulfide copper process equipment configuration: Jaw crusher, cone crusher, ball mill, SF flotation machine, thickener, and ceramic filter.
Copper sulfide ore exhibits good floatability; a combination of jaw crushing and cone crushing is used for size reduction. A ball mill paired with flotation machines achieves copper-sulfur separation, maintaining recovery rates at a consistently high level.
Copper Oxide Ore (Malachite)
Recommended oxide copper process equipment configuration: Jaw crusher, ball mill, corrosion-resistant agitation leaching tank, mixer-settler extraction tank, and electrowinning cell.
Copper oxide ore equipment has poor floatability and requires a process involving acid leaching, solvent extraction, and electrowinning. Leaching tanks utilize corrosion-resistant materials, and the electrowinning process yields high-purity (99.9%) copper cathodes.
Mixed Ore
Recommended equipment configuration: Jaw crusher, cone crusher, ball mill, flotation machine, leaching tank, thickener, and filter.
Mixed ore contains both copper sulfides and copper oxides; the process involves preferentially floating the copper sulfides followed by acid leaching of the tailings. The overall recovery rate of the copper processing equipment can be increased to over 90%.
Basic Principles for Selecting Copper Process Equipment
Principle | Core Point | Practical effect |
More Crushing, Less Grinding | Prioritize crushing to finer sizes to reduce grinding energy consumption | Crushing consumes far less energy than grinding, significantly lowering overall power consumption |
Equipment Based on Ore | Select appropriate equipment based on ore hardness, grain size, and other characteristics | Sulfide ores use flotation, oxide ores use leaching — avoid wrong selection |
System Matching | Crushing, grinding, and separation equipment must work in coordination to avoid bottlenecks | Prevent any single stage from becoming a bottleneck, ensuring continuous and stable operation of the entire line |
Conclusion
From ore to concentrate, the selection and configuration of copper processing equipment spans the entire process of crushing, grinding, gravity separation, flotation, and dewatering. In addition, deep-processed electrolytic systems are also available as an option. An optimized equipment setup significantly boosts recovery rates while reducing energy consumption and operating costs, serving as a cornerstone of mine profitability. Equipment configurations vary based on ore type, production capacity, and specific process requirements. With 40+ years of expertise in mining equipment and copper beneficiation solutions, JXSC invites you to contact us for customized equipment solutions and comprehensive technical support.
