25TPH Mobile Alluvial Gold Processing Plant In Laos
We guarantee the high quality machine in the mineral processing industry, established in 37 years of experience!

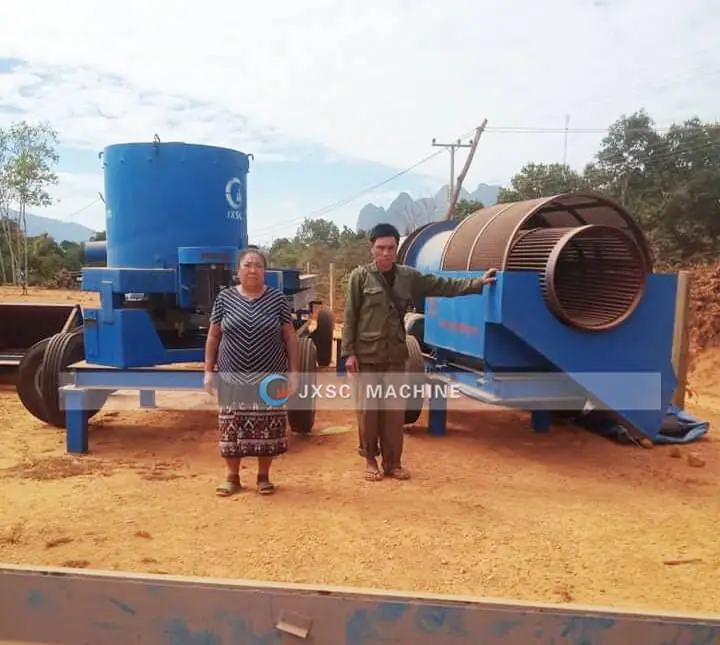

![Mobile alluvial gold processing plant](https://mineraldressing.com/wp-content/uploads/Mobile-alluvial-gold-processing-plant-2-1.jpg)

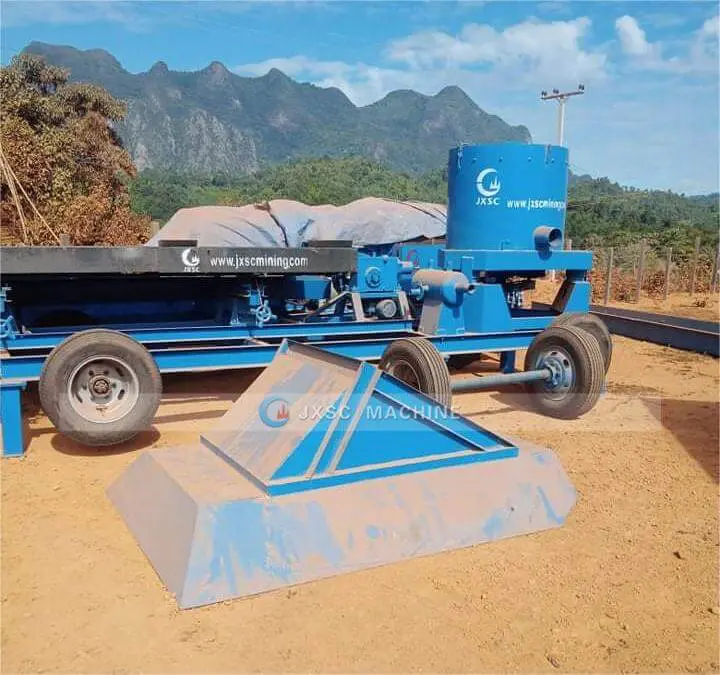

![Mobile alluvial gold processing plant (1)](https://mineraldressing.com/wp-content/uploads/Mobile-alluvial-gold-processing-plant-1-1.jpg)
Project Info
1. Raw ore: Alluvial gold with lot of sticky clay
2. Capacity: 25TPH
3. Location: Laos
4. Input size: >6mm
Process
Washing – Gravity separation – Gold Melting
process flow
![25TPH Mobile Alluvial Gold Process Plant In Laos](https://mineraldressing.com/wp-content/uploads/25TPH-Mobile-Alluvial-Gold-Process-Plant-In-Laos.jpg)
1. Washing stage: Trommel scrubber
The raw ore feed into the trommel scrubber for washing clay, and can separate the +6mm stone which do not contain the gold inside.
2. Separation stage: Gold centrifugal concentrator, sluice box, shaking table
- The small size like less than 6mm goes to the gold centrifugal concentrator to catch the gold concentrate first.
- The concentrates from the gold concentrator go to shaking table again for more good separation effect. Because of the gold concentrate, there is still has a little sand. (Use the shaking table can separate the sand from the gold, which with very good effect)
- The tailings from the gold concentrate go to a sluice box. The sluice box can catch the gold if some gold particles are flowing away.
3. Melting stage: Gold melting furnace
All gold concentrates can be melted in a furnace to get gold nuggets.
![Mobile alluvial gold processing plant](https://mineraldressing.com/wp-content/uploads/Mobile-alluvial-gold-processing-plant3-1024x478.jpg)
![Mobile alluvial gold processing plant](https://mineraldressing.com/wp-content/uploads/Mobile-alluvial-gold-processing-plant5-1024x479.jpg)
![Mobile alluvial gold processing plant](https://mineraldressing.com/wp-content/uploads/Mobile-alluvial-gold-processing-plant4-1024x479.jpg)
Main Equipment
Item | Model | QTY(set) |
Trommel Scrubber | JXSC-750 | 1 |
Sluice box | 1*6m | 1 |
Gold centrifugal concentrator | STLB 60 | 1 |
Small shaking table | 6S-4500 | 1 |
